• Model NO.：MCR05 series
• Cooling Cylinder：Air-Cooled
• Transport Package：Standard Export Packing, Wooden Carton
• Specification：820
• Trademark：Helm Tower
• Origin：Ningbo, China
• HS Code：84122910
• Production Capacity：500 PCS,Year

Basic Info.

Model NO. MCR05 series Cooling Cylinder Air-Cooled Transport Package Standard Export Packing, Wooden Carton Specification 820 Trademark Helm Tower Origin Ningbo, China HS Code 84122910 Production Capacity 500 PCS/Year

Product Description

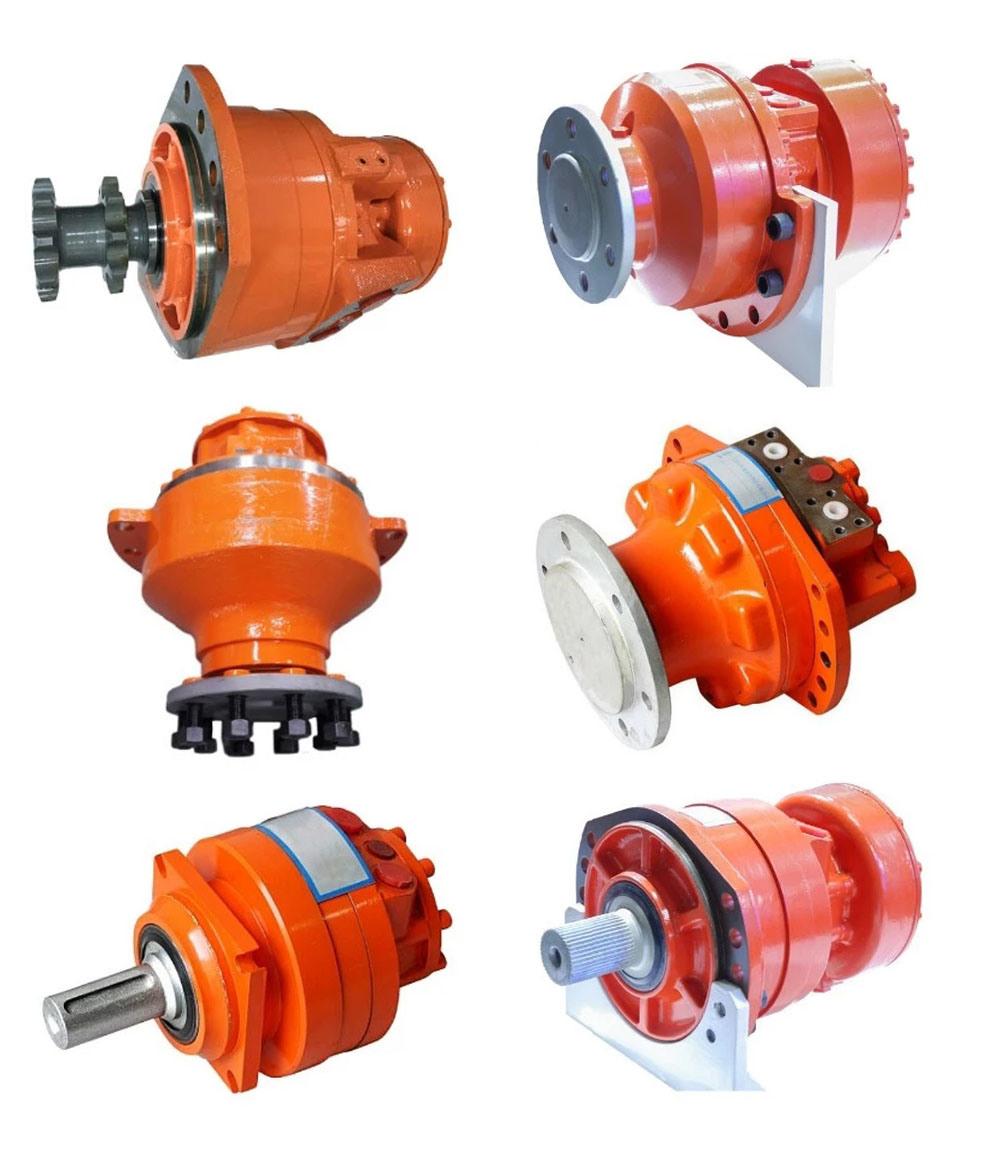

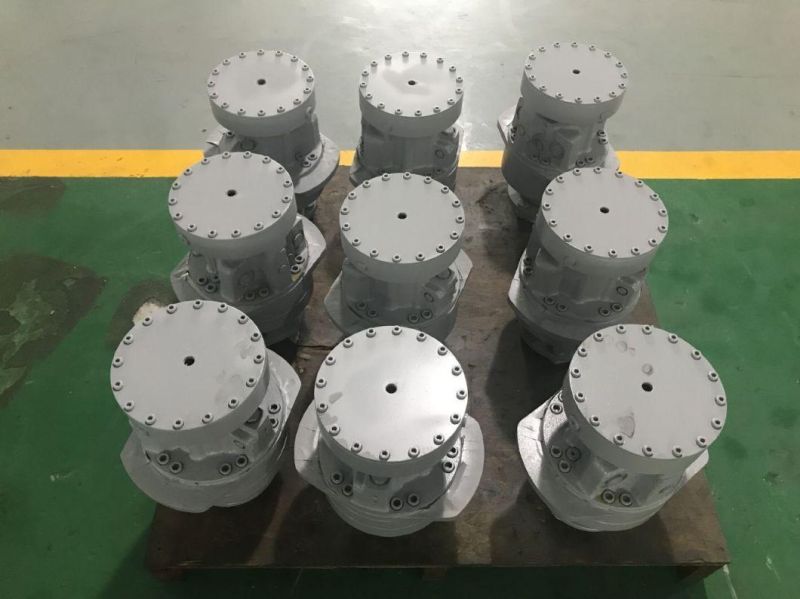

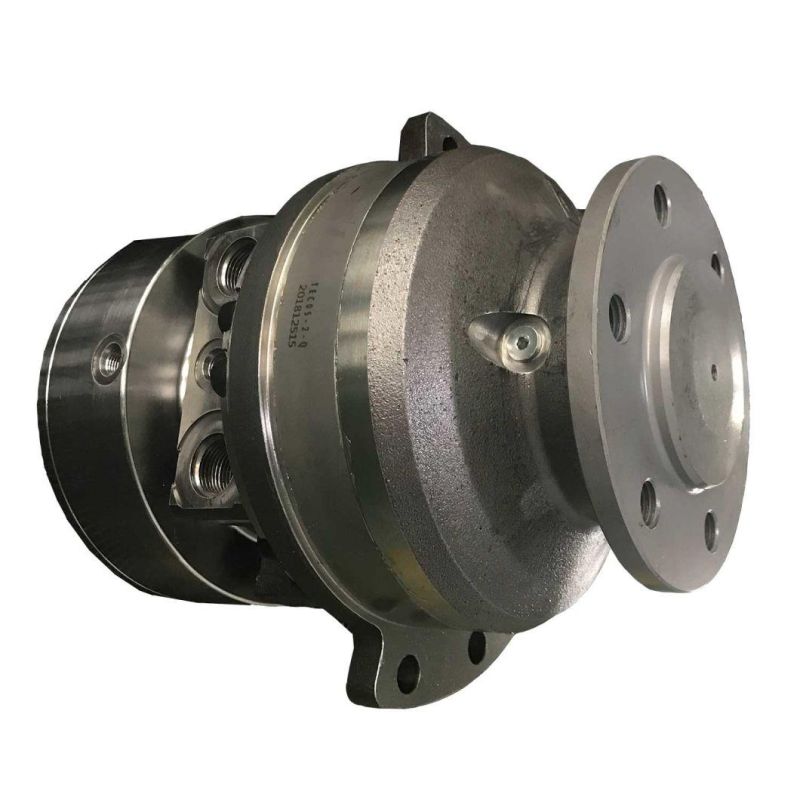

We manufacture Rexroth MCR5 MCR05 series hydraulic motor with the performance as below:

1). Designed in control modules
2). Combine freely
3). High efficiency
4). High pressure
5). Low noise
6). Radial piston
7). Low speed
8). High torque

Our service:

1). Much more competitive price than original motor price.
2). Completely interchangeable to original motors.
3). Less than 20 days' delivery time for regular motor and parts.
4). Long to 1 year's quality warranty, which could assure our after-sales service.
5). 24 hours' technical support.

Rexroth MCR05 series motor applications:
Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery: Skid Steer Loader, Break Machine,

Type	MCR05-380	MCR05-470	MCR05-520	MCR05-565	MCR05-680	MCR05-750
Displacement(ml/r)	380	470	520	565	680	750
Continuous output power(kw)	29	29	29	29	35	35
Differential pressure 10Mpa torque(Nm)	604	748	827	899	1082	1194
Rated torque(Nm)	1419	1756	1942	2111	2540	2802
Pressure rating(Mpa)	25	25	25	25	25	25
Max. pressure(Mpa)	40	40	40	40	40	40
Max. speed(rpm)	220	220	220	220	220
