• Model NO.：WL180
• Condition：New
• Rated Load：1.8ton
• Transmission：Hydraulic
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine Model：Changchai 4G33
• Rated Power：70kw
• Rated Speed：2400rpm
• Rated Bucket Capacity：0.8-1.1
• Overall Size：5505*1950*2720
• Wheel Base：2515mm
• Wheel Thread：2430mm
• Max.Breakout Force：72kn
• Max.Dump Height：3300mm
• Dump Distance：470mm
• Total Time：11.3s
• Operating Weight：4800kg
• Tyre：23.5-16 16
• Optional Engine：Xinchai 4e30yg40 E5
• Optional Tyre：70-20
• Transport Package：1 Set in 40gp
• Specification：5505*1950*2720
• Trademark：Wolf
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：3000sets,Year
• Package size per unit product：5505.00cm * 1950.00cm * 2720.00cm
• Gross weight per unit product：4800.000kg

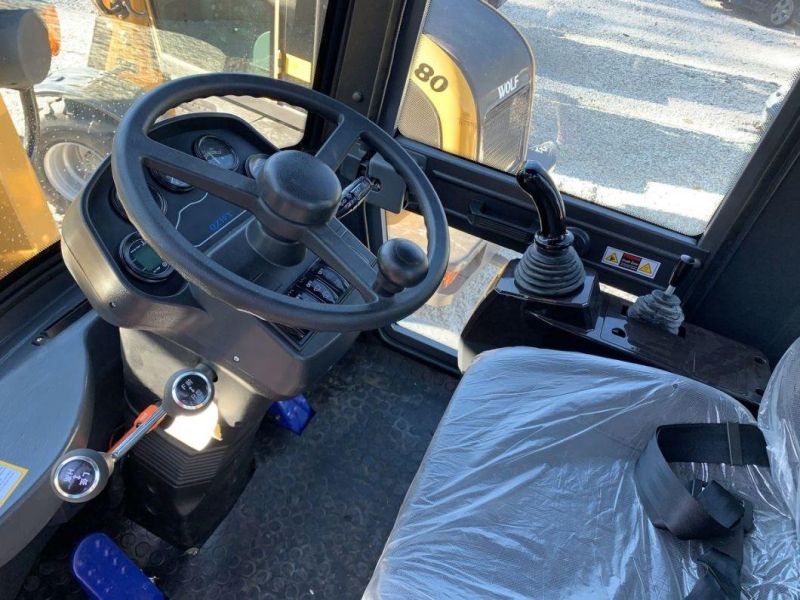

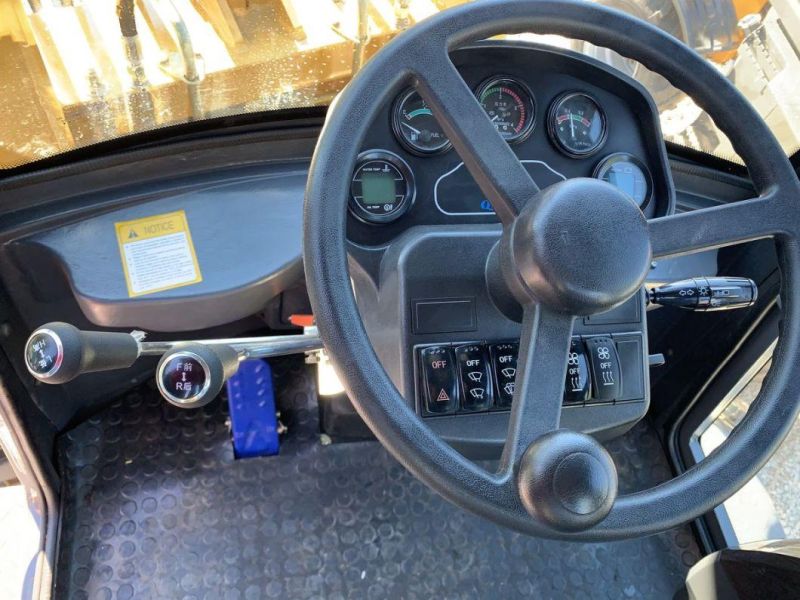

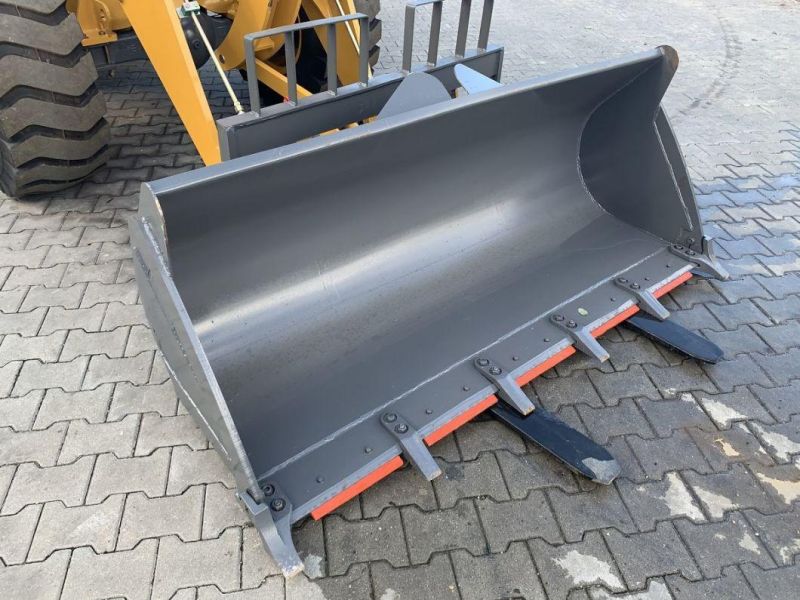

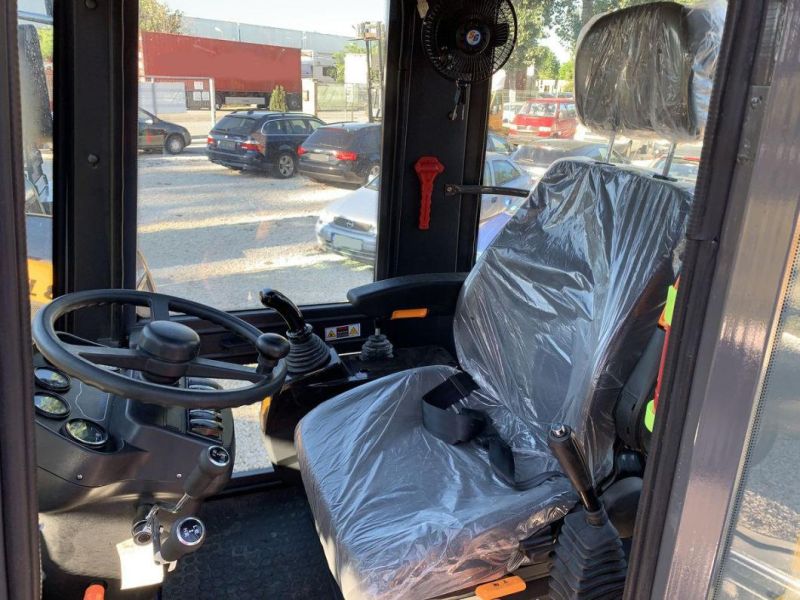

Standard Display+ Move Forward and Reverse ControlStandard Joystick 16/70-20 TyreStandard Bucket Cabin Inside Hydraulic TransmissionStandard Cabin Style 08 Cabin
Specification

Performance	Rated loading	1800kg
	Overall weight	4800kg
	Rated bucket capacity	0.9m3
	Maximum dump height	3200mm
	Overall dimension (L×W×H)	5800X1900X2700mm
	Max.Breakout force(KN)	43
	Minimum turning radius	4367mm

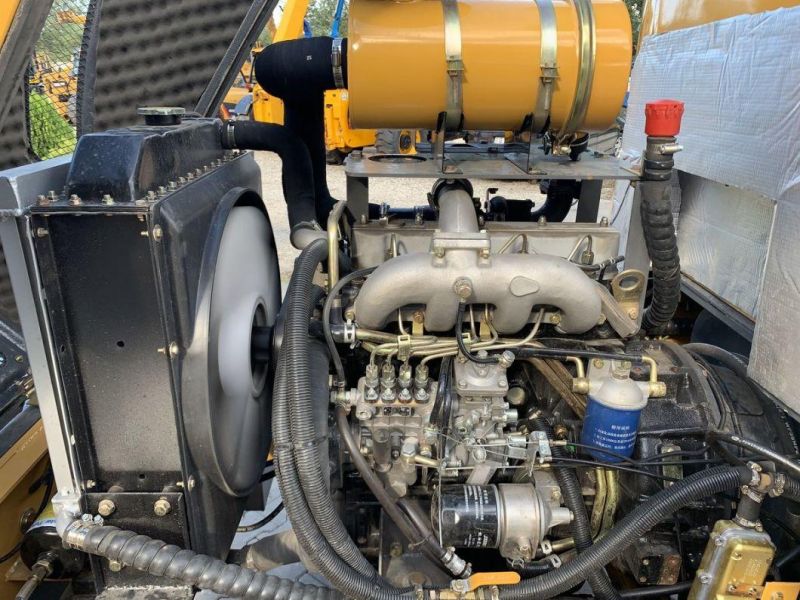

Engine	Model	Changchai 4G33TC 71~76kw
	Engine type	In line,direct injection,four-stroke,liquid cooled
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ265
	Type	Single-stage,3 elements
	Gearbox type	Axial full power shift transmission
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF15.2C
	Working pump	CBG2040
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	left and right 35±1°
	Min turning radius(mm)	4200
Brake system	Service brake	Air assist disc brake on 4 wheels
	Parking brake	Flexible shaft operated external drum

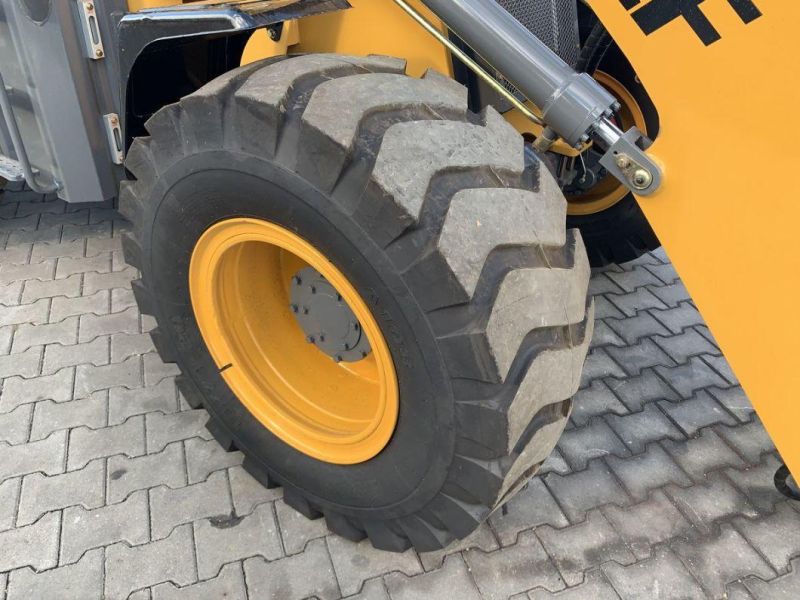

Tyre	Type specification	23.5-16
	Optional tire	16/70-20(as picture shows)

Attachements:

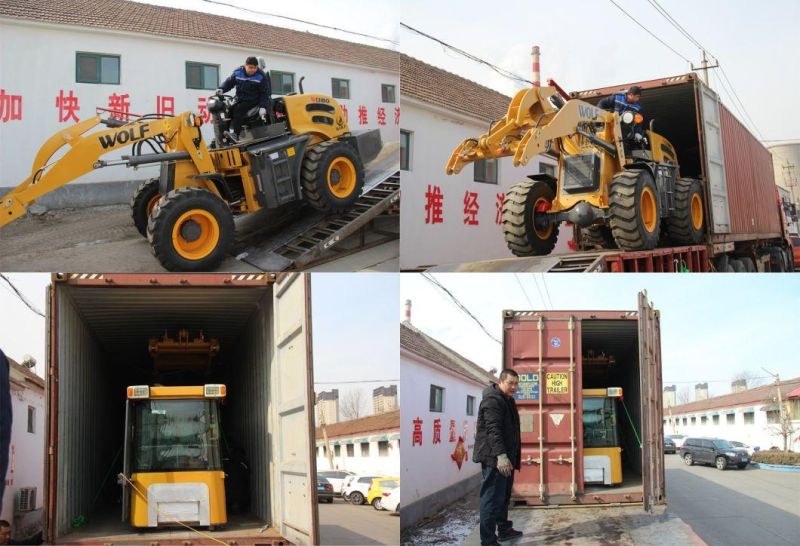

Packaging:

One unit can be loaded in one 20GP container.(Cabin Removed)

Two Units can be loaded in one 40HQ container.(Cabin Removed)
