Cheaper Price Chinese New Loader 1.8 Tons Wheel Loaders
Qingdao Zongjin Engineering Machinery Co., Ltd.- Warranty：1 Year
- Certification：ISO, CE, Rops,Fops
Base Info
- Model NO.：WL180
- Condition：New
- Rated Load：1.8ton
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Engine Model：Changchai 4G33
- Rated Power：70kw
- Rated Speed：2400rpm
- Rated Bucket Capacity：0.8-1.1
- Overall Size：5505*1950*2720
- Wheel Base：2515mm
- Wheel Thread：2430mm
- Max.Breakout Force：72kn
- Max.Dump Height：3300mm
- Dump Distance：470mm
- Total Time：11.3s
- Operating Weight：4800kg
- Tyre：23.5-16 16
- Optional Engine：Xinchai 4e30yg40 E5
- Optional Tyre：70-20
- Transport Package：1 Set in 40gp
- Specification：5505*1950*2720
- Trademark：Wolf
- Origin：Shandong, China
- HS Code：84295100
- Production Capacity：3000sets,Year
- Package size per unit product：5505.00cm * 1950.00cm * 2720.00cm
- Gross weight per unit product：4800.000kg
Description
Specification
| Performance | Rated loading | 1800kg |
| Overall weight | 4800kg | |
| Rated bucket capacity | 0.9m3 | |
| Maximum dump height | 3200mm | |
| Overall dimension (L×W×H) | 5800X1900X2700mm | |
| Max.Breakout force(KN) | 43 | |
| Minimum turning radius | 4367mm | |
| Engine | Model | Changchai 4G33TC 71~76kw |
| Engine type | In line,direct injection,four-stroke,liquid cooled | |
| Rated speed(r/min) | 2400 | |
| Transmission system | Model of torque converter | YJ265 |
| Type | Single-stage,3 elements | |
| Gearbox type | Axial full power shift transmission | |
| Gear shift | 2 gears ahead,2 gear astern | |
| Hydraulic system | Distribution of work valve | DF15.2C |
| Working pump | CBG2040 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | left and right 35±1° | |
| Min turning radius(mm) | 4200 | |
| Brake system | Service brake | Air assist disc brake on 4 wheels |
| Parking brake | Flexible shaft operated external drum | |
| Tyre | Type specification | 23.5-16 |

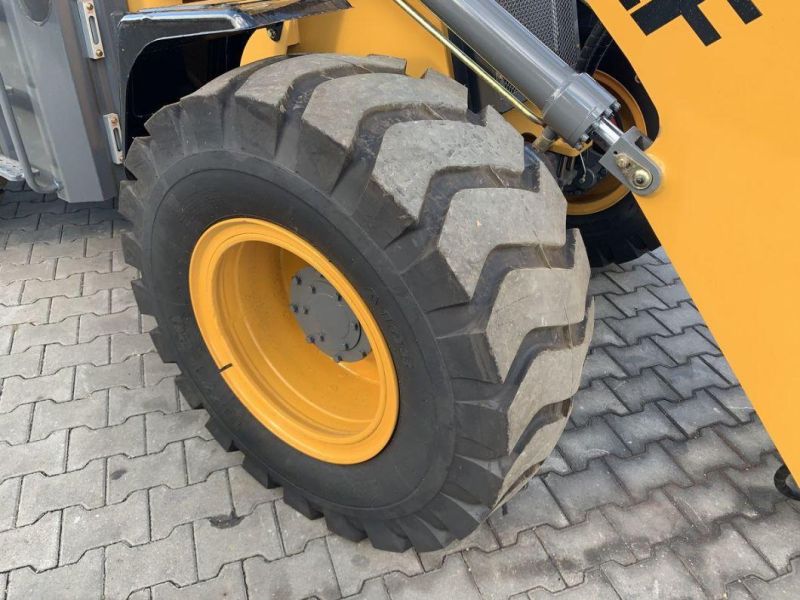

| Optional tire | 16/70-20(as picture shows) |

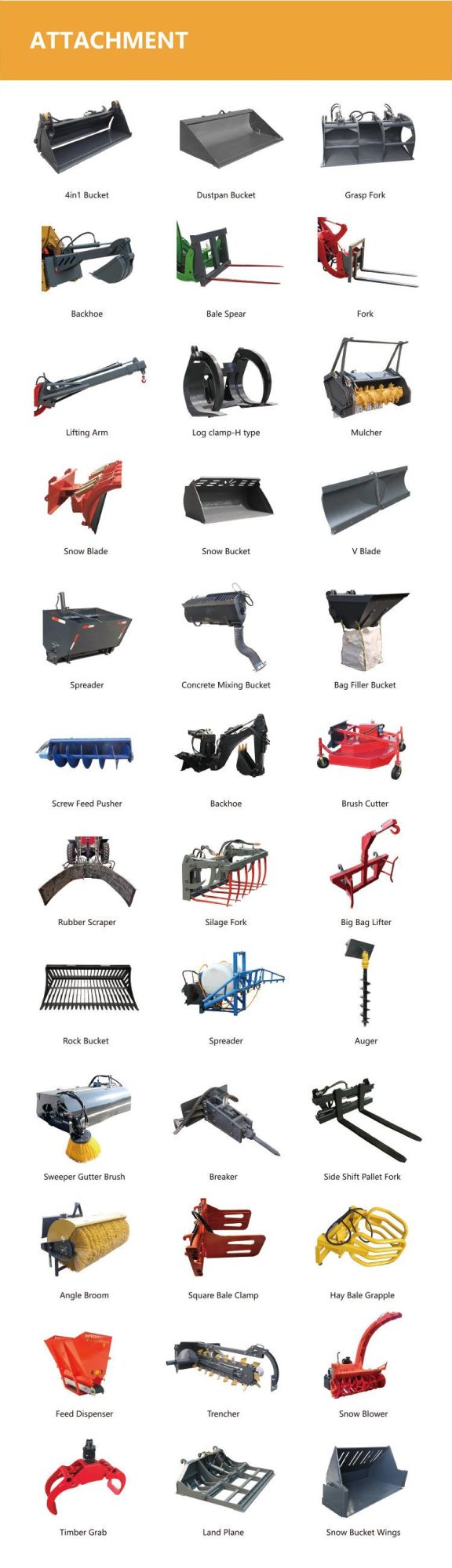

Attachements:
Packaging:
One unit can be loaded in one 20GP container.(Cabin Removed)
Two Units can be loaded in one 40HQ container.(Cabin Removed)
