Bohai Kr18 Standing Seam Roll Forming Machine for Building

Yingkou Bohai Machinery Equipment Manufacture Co., Ltd.
  • Place of Origin：China
  • Brand：Bohai
  • Application：Construction
  • Transport Package：Packed in Container
  • Trademark：BOHAI
  • Origin：Liaoning Province of China

Base Info

  • Model NO.：BH-KR18
  • HS Code：8455229090
  • Production Capacity：30 Sets Per Year

Description

Main technical parameterForming motor power:5.5kwForming speed:8-15m/minForming rollers:12 stepsRoller material:45#steel, coated hard chromeHydraulic station motor:3kwThickness of coils:0.5-1.3mmCutting type:hydroform cutterMaterial of cutting part:Cr12,heat treatment HRC58°-60°Length scale precision:±2mmControlling system:PLC  Panasonic, touch screenBohai Kr18 Standing Seam Roll Forming Machine for Building

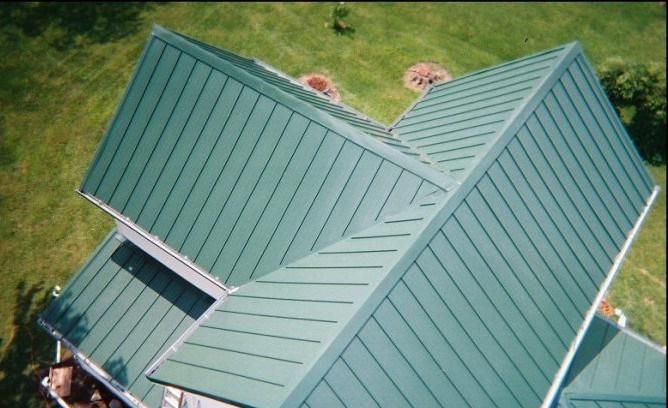

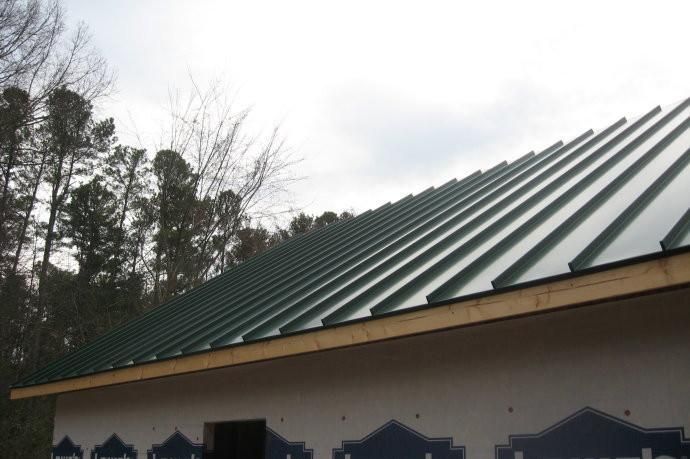

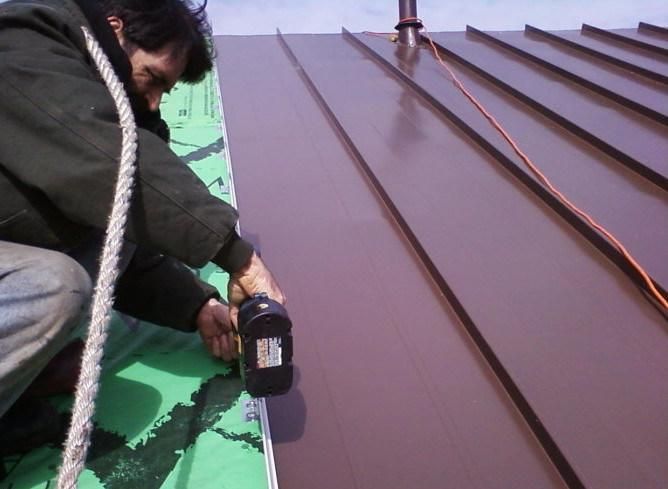

Project roof
Bohai Kr18 Standing Seam Roll Forming Machine for Building
Bohai Kr18 Standing Seam Roll Forming Machine for BuildingBohai Kr18 Standing Seam Roll Forming Machine for Building



ISO certificate
Bohai Kr18 Standing Seam Roll Forming Machine for Building


Delivery time: one month since we receive the advance payment

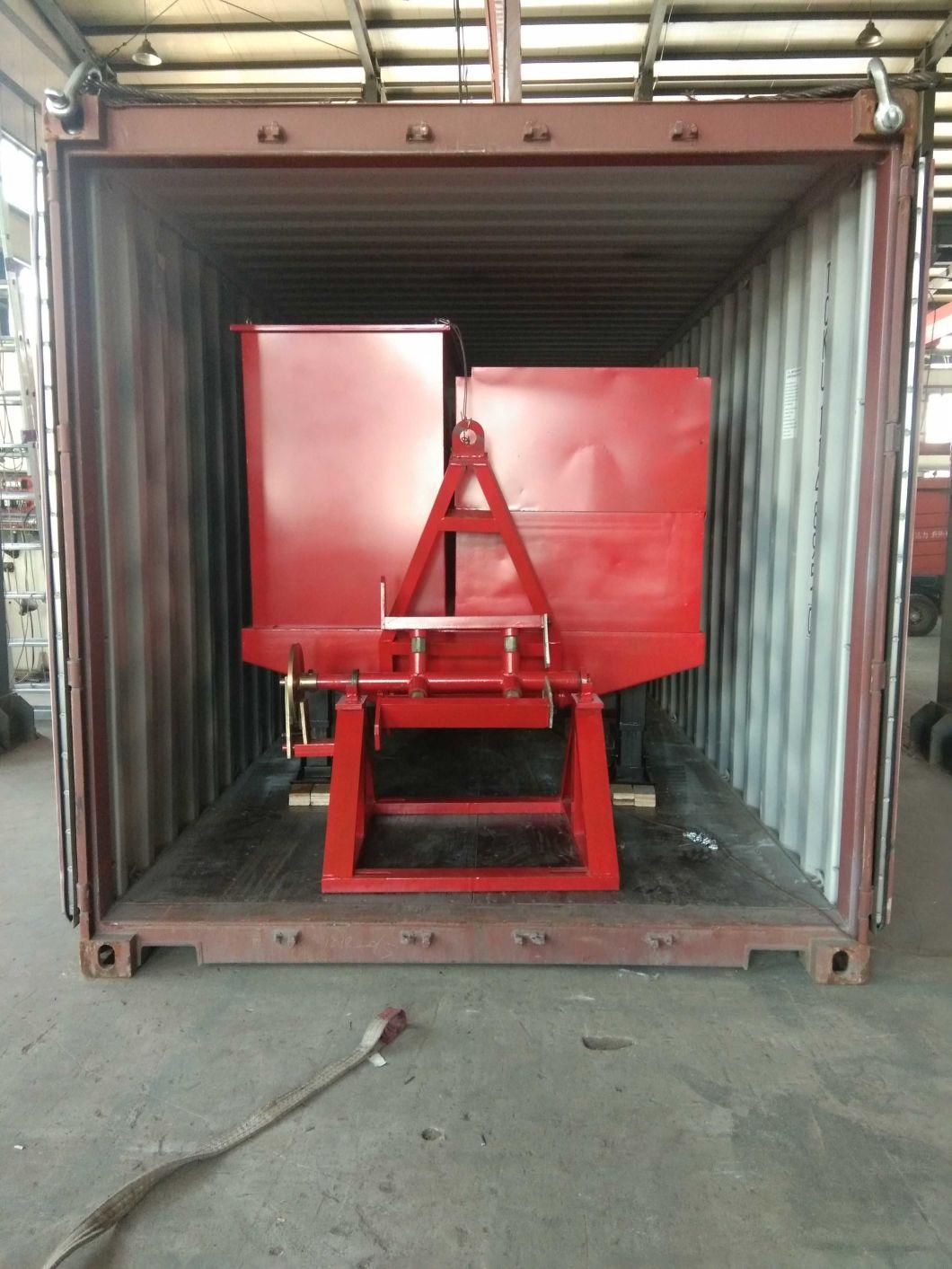

Packing: Nude packing in 20"GP
Bohai Kr18 Standing Seam Roll Forming Machine for Building

Our main products are: Steel-drum production line, Steel drum, BH-240/BH-120 Arch sheet roll forming machine, Ultimate Building Machine, Screw-jointed Equipment, Span Arch Sheet Project, UBM Building, Screw-jointed Project, KR 18 Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, 840 Corrugated Sheet Roll Forming Machine, Corrugated Roof Sheet Forming Machine, Concealed Roof Sheet Forming Machine, Steel Decking Roll Forming Machine, C/Z/U/M Shaped Steel Purlin Forming Machine, Highway Guardrail Roll Forming Machine, Sandwich Panel Roll Forming Machine, Lifting Machine, Unlimited Length Ridge Tile Forming Machine, Sheering Machine, Window and Door Taping Machine, Flat Sheet Bending Machine, Pipe Bender Machine, Bending Machine, Slitting Machine, Slitting Line, SM-40 Spiral Steel Silo Forming Machine, PU Spray and Perfusion Equipment, Colored Steel Sheet Coils, etc.
