Disk Brake Mini Loader with 0.6cbm Bucket Capacity
Shandong Lehman Construction Machinery Co., Ltd.- After-sales Service:3 Years
- Warranty:1 Year
- Certification:ISO, CE
- Condition:New
- Rated Load:1-3t
- Transmission:Hydraulic
Base Info
- Model NO.:ZL916
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
- Type:Small Loader
- Color:Yellow Blue or White Are Available
- Load Volume:1600 Kg
- Engine:Yn33gbz
- Tyre:20.5-16
- Weight of Whole Machine:5000kg
- Transport Package:Nude Package in Container
- Specification:6000*2000*2800 mm
- Trademark:LEHMAN
- Origin:China
- Production Capacity:1000 Sets Month
Description
Basic Info.
Model NO. ZL916 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Color Yellow Blue or White Are Available Load Volume 1600 Kg Engine Yn33gbz Tyre 20.5-16 Weight of Whole Machine 5000kg Transport Package Nude Package in Container Specification 6000*2000*2800 mm Trademark LEHMAN Origin China Production Capacity 1000 Sets MonthProduct Description
zl916 Small farm loader articulated mini wheel loader priceModel | zl916 |
Load Volume kg | 1600 |
Bucket capacity | 0.6cbm |
Weight of whole machine | 5000kg |
engine | YN33GBZ |
power | 38kw |
Tyre | 20.5-16 |
Unloading Height | 3000mm |
Unloading Distance | 700mm |
L*W*H mm | 5200*1800*1900 |
Product details

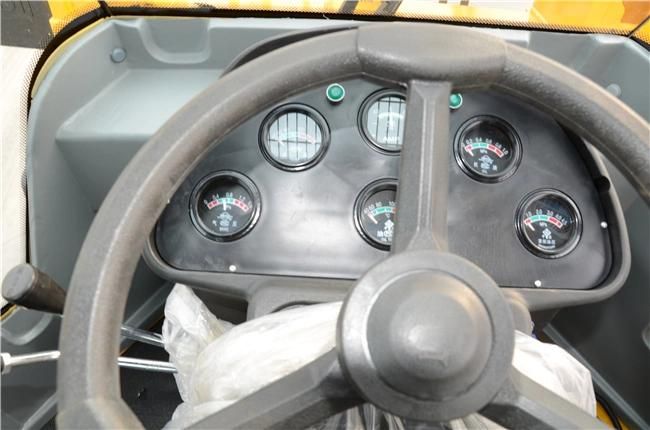

With torque converter oil temperature gauge,temperature at a glance,prevention of high temperature.

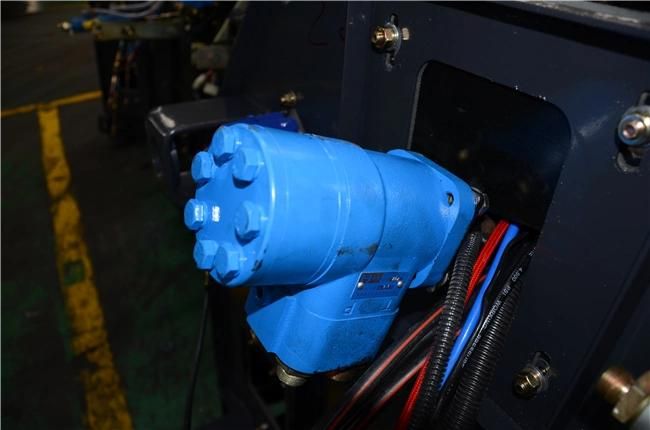

The redirector has latching valve piece,which will raise veer security of the whole vehicle,more steady direction,more lightness, and let you operate be at ease

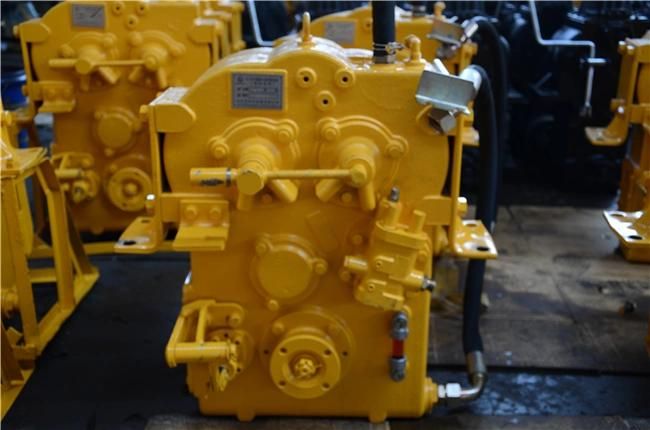

Split type 280 San Yuan element torque converter,fixed shaft power shift transmission, large power,strong climbing ability,convenient repair,not easy to high temperature ,high reliability.

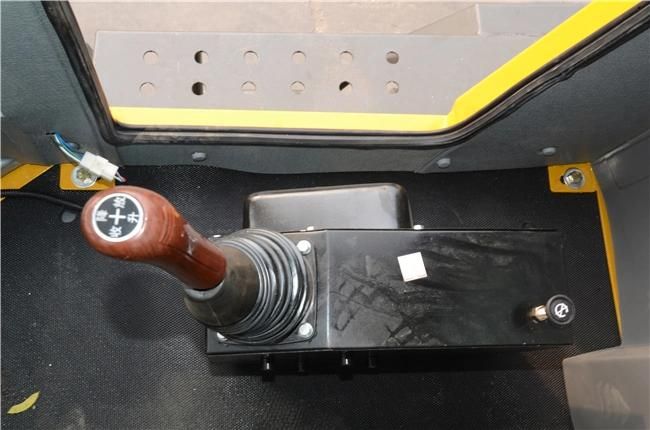

Single lever,reduce driver fatigue and improve work efficiency
Product Features
. Entry back-flow pipe with steel pipe,pressure 16Mpa,ensure pipe flow unblocked.
. Four wheel brake caliper disc brake,double pump,increase the pump,tubing with steel oil resistant high-pressure pipe,safe and reliable.
. Welding gas using two element mixed gas,argon gas retention(AF+CO2),the welding strength increased 5 times.
. The main part of the whole vehicle,steel made of Q345BR material (commonly known as 16 Mn).
. Cylinder used excavator standard four seals to prevent oil leakage,pressure relief,greatly increased service life.
. Select Pin shaft selection 40CF chromium high frequency sputtering modulation,increase the lock piece,bushing using TMC nylon material,good mechanical properties if 450F under high temperature.
