• Model NO.：wtla 200
• Working Voltage：DC 24V ±15%
• System Error：>±5%
• Init Output Junction：DC 24V, 7A
• Working Temperature：-20-60
• Power Dissipation：<10W
• Transport Package：Non Fumigation Wooden Box, Standard Improt Paper C
• Specification：wtl-a200 lmi
• Trademark：WTAU
• Origin：China
• HS Code：8531809090
• Production Capacity：5000 Per Year

Basic Info.

Model NO. wtla 200 Working Voltage DC 24V ±15% System Error >±5% Init Output Junction DC 24V, 7A Working Temperature -20-60 Power Dissipation <10W Transport Package Non Fumigation Wooden Box/ Standard Improt Paper C Specification wtl-a200 lmi Trademark WTAU Origin China HS Code 8531809090 Production Capacity 5000 Per Year

Product Description

Product Description

WTL-A200 Load moment indicator is composed of sensor, operational amplifier, control actuator and overload indicator, etc. It integrate 3 into 1, which are display, control and warning. When the crane lifting a load, the sensor is occurring deformation. Meantime, converting weight of load into electrical signal, after operation and amplification, indicate the value of weight. When the load reaches 90% of rating, it gives an alarm; When value of weight surpass the rating, the power will be turn off at once. It is widely used in over head travelling crane, elevator and portal/tower crane.


Load Moment Indicator(safe load indicator or Crane computer lmi/sli/rci) is a device which is installed on various sorts of cranes like mobile, crawler, tower, gantry, portal, marine and offshore crane. It alert the operator if the lift is exceeding the safe operating range. In some cases, the device will physically lock out the machinery in circumstances it determines to be unsafe.
It controls the lifting equipment to function as per the manufacturer's suggested safe load charts. Each of the measured parameters like load weight, working radius, control limit,angle and extension of the crane boom, etc will then further be displayed in the operator's cabin.

Detailed  Images

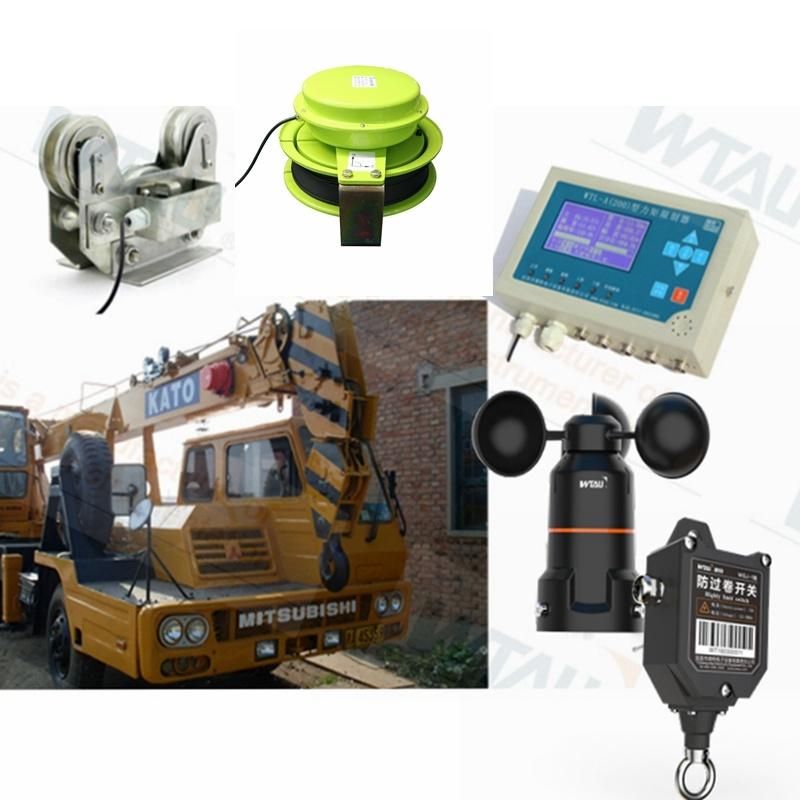

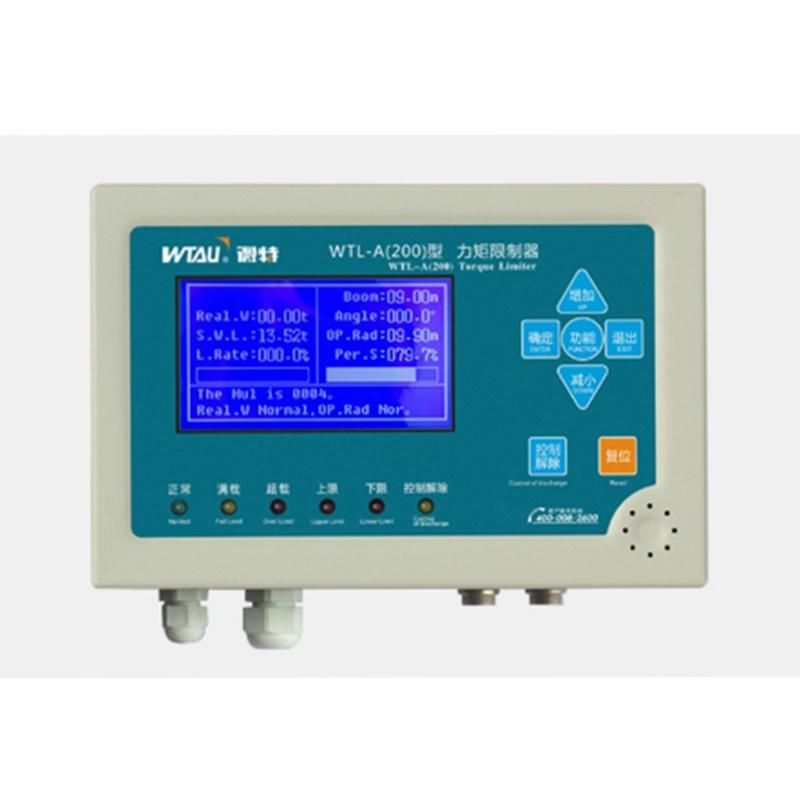

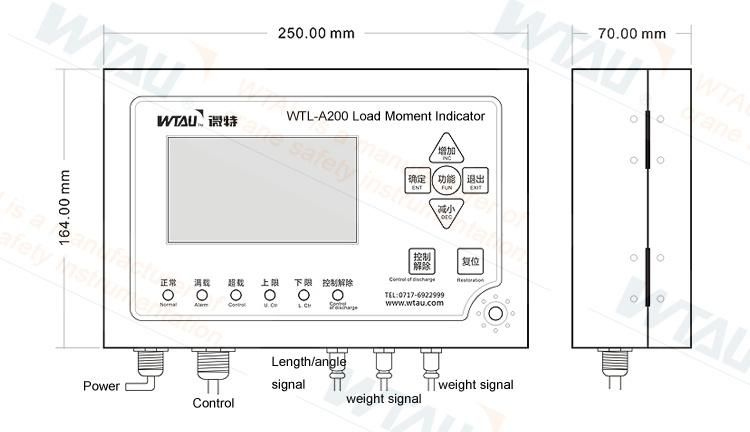

WTL A200 load moment indicator system


Technical Parameters

Weight Measurement Range: 0T~400T
Resolving Ability: 0.1T
Synthetic Errors: ≤5%F.S.;
Working Condition: -20°C~60°C
Relative Moisture under Working Condition: 90%RH(20°C)
Working Voltage: AC 220V ±25%
IP Grade:weight sensor with IP68;Monitor with IP65

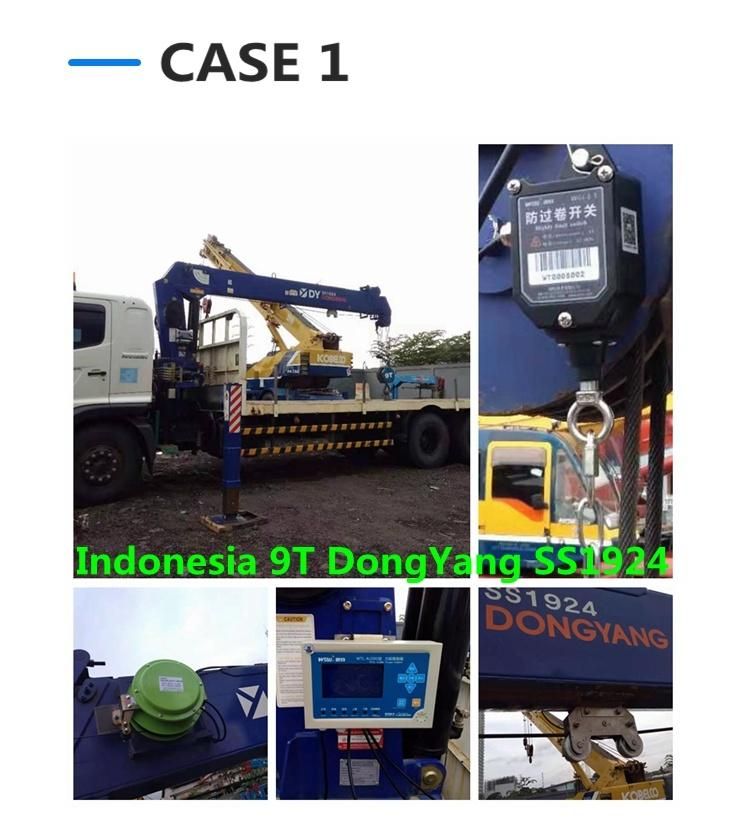

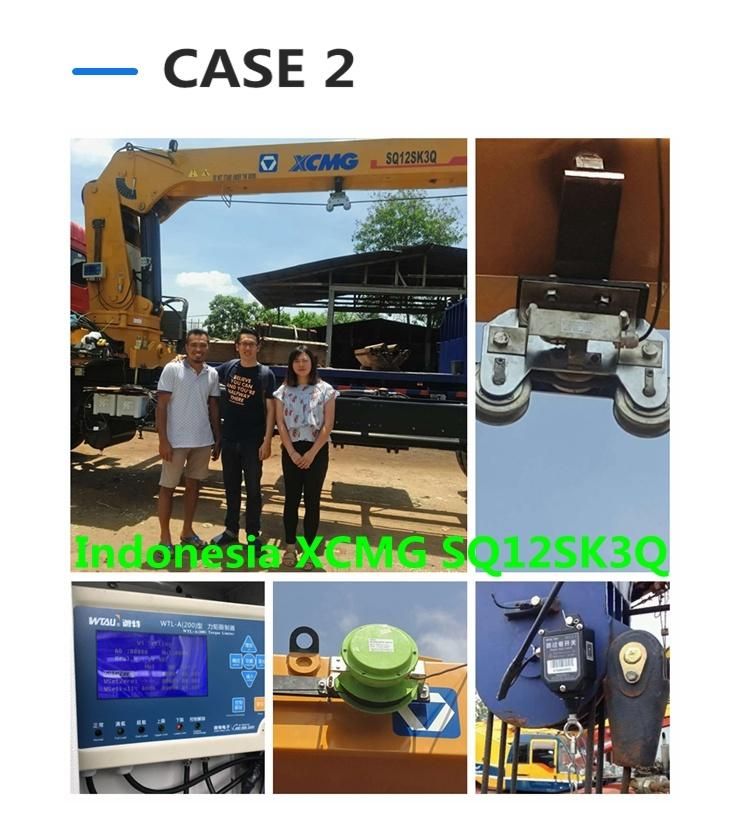

Application cases of safe load  indicator system


Certificates



Company Introduction



Weite Technologies Co.,Ltd

Founded in 2002, it is national hi-tech enterprise located in Yichang, China. It has been focusing on R&D and OEM manufacturing of lifting safety protection devices such as Load Moment Indicator, Safe monitoring systems, overload limiter, Load cell, Anemometers etc.We continuously concentrate on ensuring lifting equipments run safely as long-term pursuing goal.

"The trusted Safety Partner for Global Top 100 Crane Owning Companies like Tat Hong, Asiagroup, Big Crane and Fortune 500 corps" . Nowadays, WTAU products are widely used in marine industry,electrical, chemical, steel, metallurgy, construction, ports and other industries, and have been wide spreaded to over 60 countries and regions.

Global Partners



FAQ
1) Is your company well-reputated? How to prove that?
It is a China Top 3 brand focusing on Crane Safety Protection Equipment. We are also Safety Partners for Global Top 100 Crane Owning Companies like Tat Hong(top 9), Asiagroup(top 45), Big Crane(top 94) and Top 500 companies such as ABB, Macgragor,TTS,CNOOC,etc. Products are been sold to over 60 countries and regions globally.

2) How to assure the quality?
The Product Warranty for the total item is 12 months. Any problem after installation, we will change the new one for free.

3) How to install the LMI?
English User Manual(include all the details of each item) will be offered for installation and trouble shooting(refer to the pic below). Also free Remote Instant Technical assistance would be offered by our english engineers. Or we can send our engineers to assist you locally.

4) How much is your LMI system?
Send me the crane model, hook number, working conditions(Luffing Tower Working Condition, Pilling) and special requirement and the like. Your contact info is a must.

5) How can I place order?
A: You can contact us by email about your order details, or place order on line.

6) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual ways we are using.
