• Model NO.：JK16,KQC
• Display Mode：6 Digital Display
• Warranty：1 Year
• Lift Mechanism：Rack&Pinion
• Carrying Capacity：Weight Level
• Moves：Self-Propelled
• Driven Type：Rack&Pinion
• Transport Package：Wooden Case
• Specification：many kinds
• Trademark：STRONG
• Origin：Shanghai
• HS Code：84313900
• Production Capacity：20000PCS,Year

Basic Info.

Model NO. JK16/KQC Display Mode 6 Digital Display Warranty 1 Year Lift Mechanism Rack&Pinion Carrying Capacity Weight Level Moves Self-Propelled Driven Type Rack&Pinion Transport Package Wooden Case Specification many kinds Trademark STRONG Origin Shanghai HS Code 84313900 Production Capacity 20000PCS/Year

Product Description

I. Introduction
KQC-C2 overload limiter is a new type of smart weight overload protection device, which measure the loaded weight's change by load cell. KQC-C2 could display actual load. When the load reached a rated load setting value, it will show the signals with sound and light, and giving the value of output for switch signal.
KQC-C2 contains a series of advantage: rational structure, easy installation and debugging, reliable working and high precision and so on.
Using a single load cell is for the tower hoist, windlass and so on; Using two load cells are for the building hoist.



II.Technical Parameter
Working power:AC220V/50Hz;
Total error:≤5% F.S;
Excitation:DC5V;
Relay output capacity:10A/250VAC;
Input signal:0mV--15mV;
Max input signal:≤15mV;
Display digits:4 bits;
Working temperature:-20-60degree centigrade;Relative humidity:≤85%RH;
Warming-up time:≥10min;
Indicator dimension:130mm*155mm*72.5mm;
IV. Function of keyboard
Indicator's control board profile:

Keyboard function instruction:

In setting state, put in parameter set and calibration mode; indicate asset
In setting state, choose menu or add current parameters; indicate as .

In weighing state, resume defaults; indicate asresume.
In weighing state, choose menu or decrease current parameters; indicate as.

In weighing state, it will display 0 by pressing this key; indicate as0.
In weighing state, move flashing bit to right; indicate as.

In weighing state, switchweight/percentage/ISN; indicate asswitch.
In setting state, confirm and save parameters; indicate asconfirm.

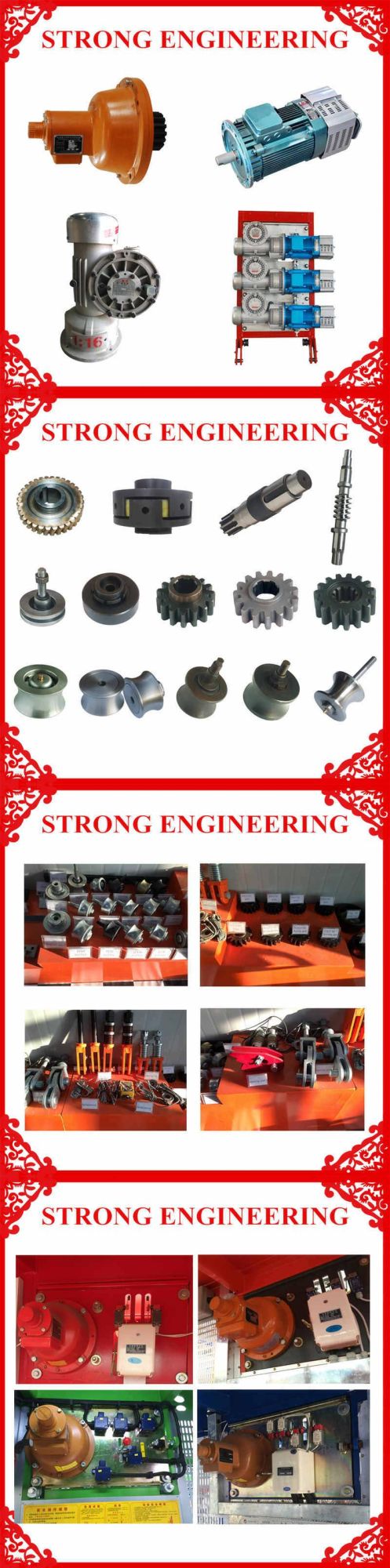

 High quality construction hoist spare parts High quality GJJ, BAODA material hoist spare parts All kinds of hoist spare parts , GJJ,BAODA,ZOOMLION,TIGER,Driving device with 2-motors / 3-motors;motor: 11kw, 14.5kw,18kw;motor spare parts: braking system; brake sheet, motor adjustor, electromagnet,motor fan.safety device: 30KN,40KN,50KN,60KN;gearbox: 16:1,14:1,12:1;10:1;coupling with rubber;master rollers for 76 tube and 89 tube;gear rack M8 40x60x1508mm;gear pinion: M8,15teeth;limit switch;gate rollers;counter rollers;transformer;Overload protect system;cable: 3x16+2x6, 3x16+2x10
Overload Indicator and Sensor
Construction Hoist Spare Parts
