Hzs60 60m3/H Concrete Batching Plant Small for Sale
Zhengzhou Focus Machinery Co., Ltd.- After-sales Service：Guidance on Erecting, Commissioning and Operator T
- Warranty：13months After Commissioning
- Type：Concrete Mixing Plant
- Shotcrete Type：Dry, Semi-Dry and Plastic
- Machining Process：Automatic Controlled Production Line
- Structure：Spiral Type
Base Info
- Model NO.：HZS60 concrete batching plant small
- Productivity：60m²,h
- Feeding Height：3800mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：as Request
- Control System：Full Automatic Computer Control
- PLC：Omron or Siemens
- Mixer Volume：1000L
- Aggregate Batcher：1600,2400
- Aggregate Weighing：by Weight
- Weighing Accuracy：2%
- Water and Cement：Separate Accurate Scale
- Scale Accuracy：1%
- Power Source：380V 50Hz 3 Phase
- Transport Package：Standard Packing of Concrete Batching Plant Small
- Specification：HZS60 concrete batching plant small
- Trademark：FOCUS concrete batching plant small
- Origin：Zhengzhou, Henan
- HS Code：8474100000
- Production Capacity：50 Sets Per Month
Description
On requestTotal weight (ton) 46 60 71 87 112 Overall dimension(LxWxH)(m) 33.8x14.8x19.4 38x16x19.4 44x18x19.4 58.5x23.5x22 60x25x22
Why would our clients choose FOCUS concrete batching plant small
On the basis of combining advantages of various foreign 90m3/h bucket type concrete mixing plant and advanced technology, FOCUS HZS 90m3/h bucket type concrete mixing plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
What are the main features of FOCUS HZS60 concrete batching plant small
1. Adopting twin-shaft compulsory concrete mixer, FOCUS 90m3/h bucket type concrete mixing plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
3. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45° By adopting trough(groovy) belt when the ground area is limited for the concrete mixing plants;
4. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole mixing plant is all in closed state;
5. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
6. Heating system and ice plant could be adopted into this 90m3/h bucket type concrete mixing plant in severely cold and hot environment.

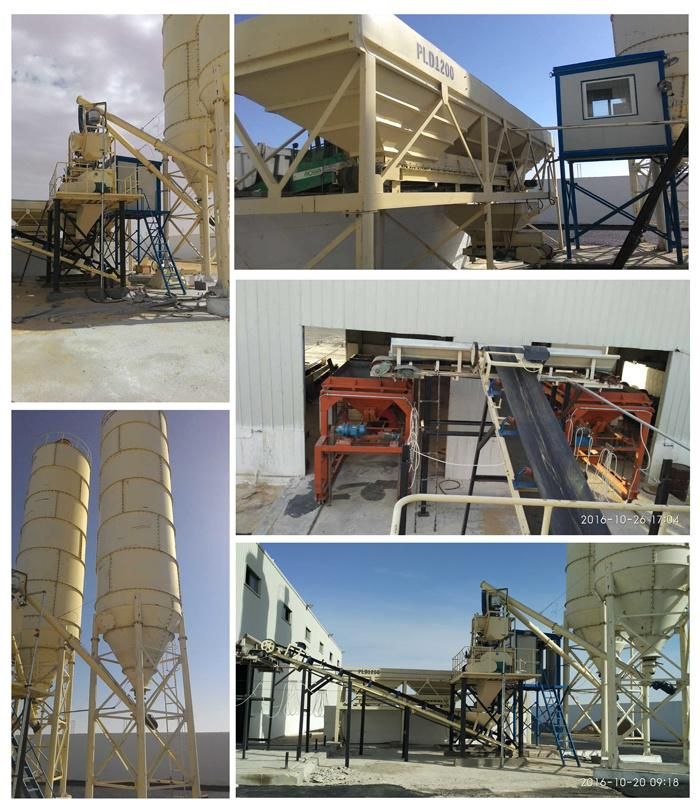

Successful cases

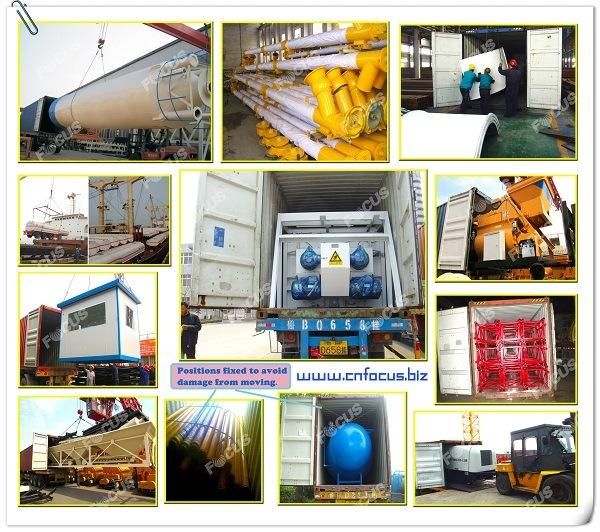

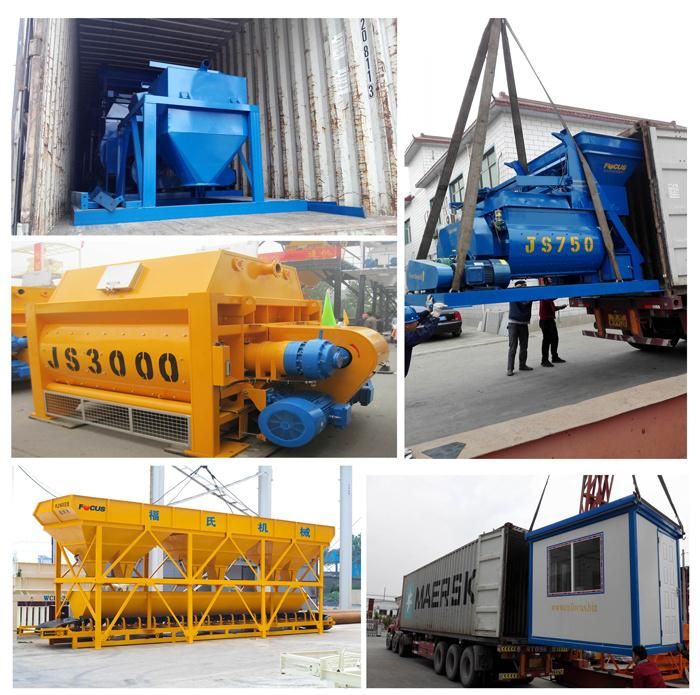

Packing & Delivery
Certificate
Why would our clients choose FOCUS concrete batching plant small
On the basis of combining advantages of various foreign 90m3/h bucket type concrete mixing plant and advanced technology, FOCUS HZS 90m3/h bucket type concrete mixing plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
What are the main features of FOCUS HZS60 concrete batching plant small
1. Adopting twin-shaft compulsory concrete mixer, FOCUS 90m3/h bucket type concrete mixing plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
3. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45° By adopting trough(groovy) belt when the ground area is limited for the concrete mixing plants;
4. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole mixing plant is all in closed state;
5. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
6. Heating system and ice plant could be adopted into this 90m3/h bucket type concrete mixing plant in severely cold and hot environment.
Successful cases
Packing & Delivery
Certificate
