• Model NO.：HZS50 automatic small concrete batching plant
• Productivity：50m²,h
• Feeding Height：1800mm
• Vibrating Amplitude：0-5mm
• Certification：ISO9001: 2000
• Condition：New
• Color：on Request
• PLC：Omron or Siemens
• Concrete Mixer Volume：1000L
• Cement Silo：50,100t Bolted Type
• Water&Cement：Separate Accurate Scale
• Scale Accuracy：99% of Concrete Mixing Plant
• Transport Package：Standard Packing for International Transport
• Specification：HZS50 automatic small concrete batching plant
• Trademark：FOCUS automatic small concrete batching plant
• Origin：Zhengzhou, Henan
• HS Code：8474100000
• Production Capacity：50 Sets Per Month

modelHZS25HZS35HZS50HZS75   Theoretical output(m³/h)25355075   Mixer modelJS500JS750JS1000JS1500   Output per batch(m³)0.50.7511.5    Aggregate batcherPLD800PLD1200PLD1600PLD2400    Total power(KW)273580110    Aggregate weighing accuracy(kg %)(0-1500)±2%(0-2250)±2%(0-2500)±2%(0-4000)±2%   cement weighing accuracy(kg %)(0-300)
±1%(0-400)±1%(0-500)±1%(0-800)±1%   water weighing accuracy(kg %)(0-200)
±1%(0-300)±1%(0-300)±1%(0-500)±1%   fly ash weighing accuracy(kg %)(0-300)
±1%(0-300)±1%(0-300)±1%(0-500)±1%   additive weighing accuracy(kg %)(0-40)
±1%(0-40)±1%(0-40)±1%(0-50)±1%   Discharge height(m)3.8-4.1   Max. aggregate dia.(mm)60608080   Cement silo and screw conveyorOn request   Total weight (ton)20253545   Overall dimension(LxWxH)(m)11.5x5.8x19.412x6x19.420.5x7.5x19.425.9x9.2x19.4

Product Overviews


Why would our clients choose FOCUS automatic small concrete batching plant?
On the basis of combining advantages of various foreign concrete mixing/batching plant and advanced technology, FOCUS HZS concrete mixing/batching plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.

Successful cases

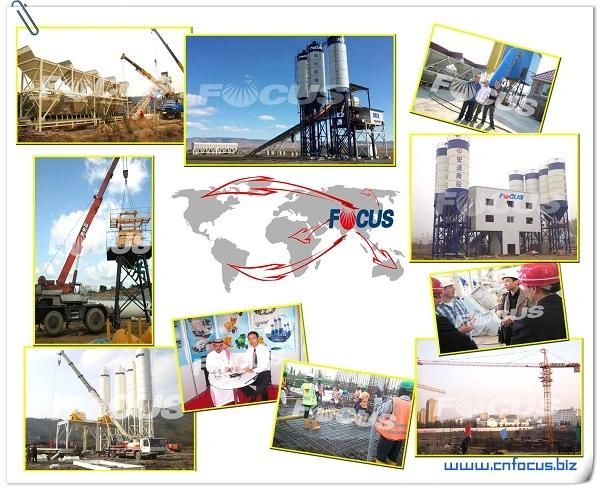

Our automatic small concrete batching plant have been purchased, installed and operated all over the world:

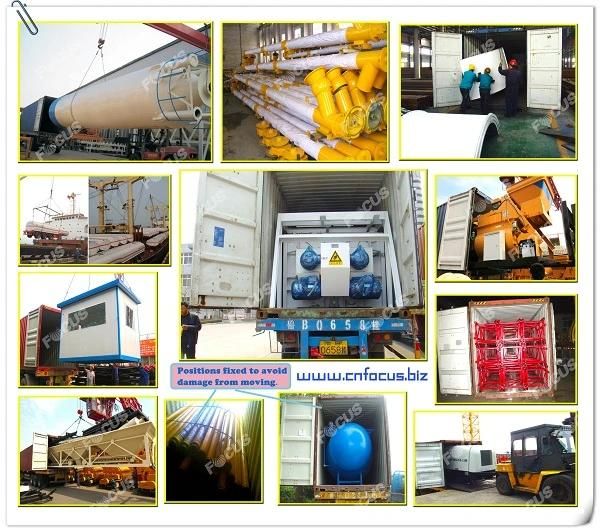

Packaging&Shipping

Our 5automatic small concrete batching plant have been delivered /distributed to the world with high reputation, it'll be such a great honor if you can join us
Certifications
