• Model NO.：YN938G
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Capacity：1.8 M3
• Rated Load Capacity：3000 Kg
• Dumping Clearance：3000 mm
• Dumping Reach：1105 mm
• Max. Break Force：120 Kn
• Max. Drawing Force：96 Kn
• Max. Grade Ability：30°
• Engine Power：92 Kw,2300 Rpm
• Whole Operating Weight：10600 Kg
• Transport Package：Naked
• Specification：7020*2510*3300mm
• Trademark：YINENG
• Origin：Taian City, Shandong Province, China
• HS Code：8429510000
• Production Capacity：300PCS,Month

Basic Info.

Model NO. YN938G Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Capacity 1.8 M3 Rated Load Capacity 3000 Kg Dumping Clearance 3000 mm Dumping Reach 1105 mm Max. Break Force 120 Kn Max. Drawing Force 96 Kn Max. Grade Ability 30° Engine Power 92 Kw/2300 Rpm Whole Operating Weight 10600 Kg Transport Package Naked Specification 7020*2510*3300mm Trademark YINENG Origin Taian City, Shandong Province, China HS Code 8429510000 Production Capacity 300PCS/Month

Product Description

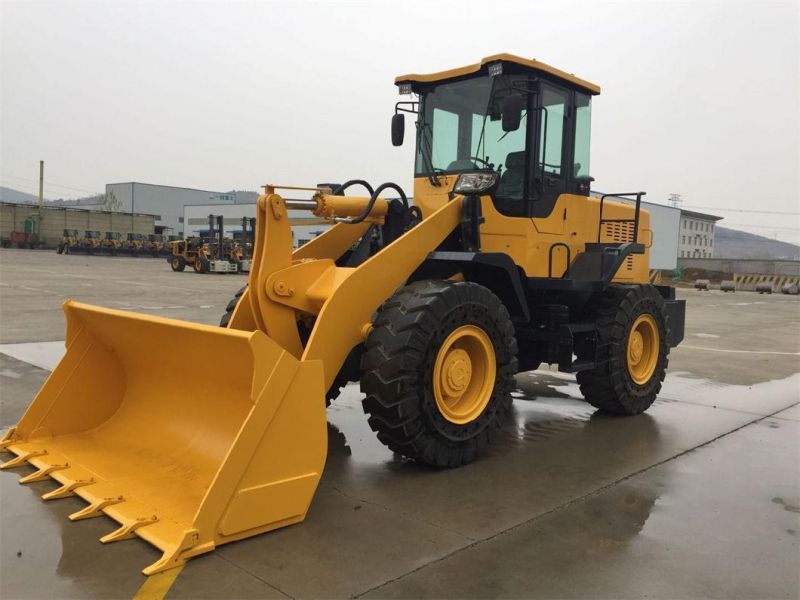

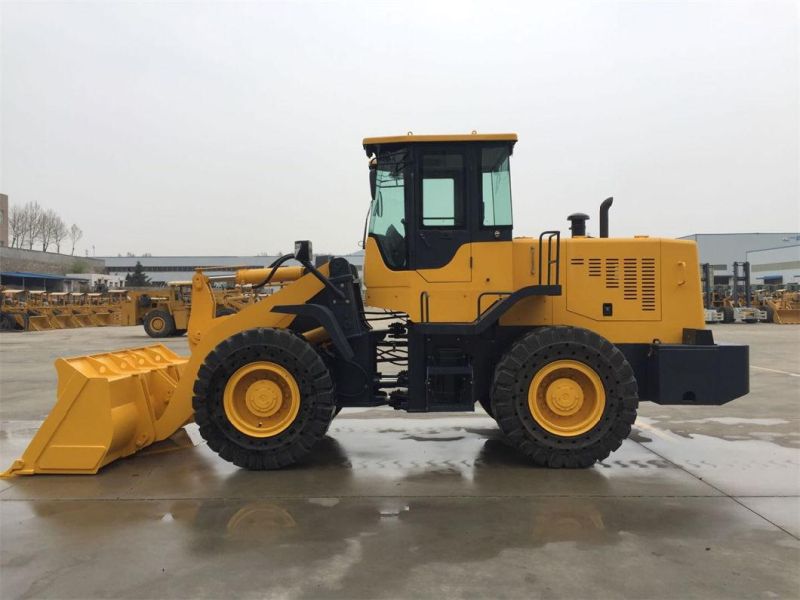

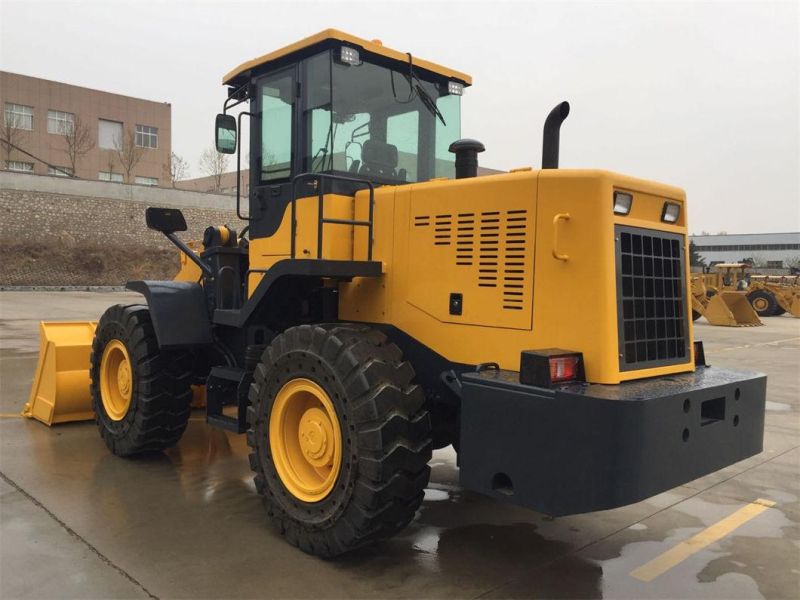

3 Ton Yineng Brand New YN938 Loader
* Weichai DEUTZ diesel engine, higher power and reliability.
* Hangzhou Advance Gear Group ZL50 double-turbine hydraulic torque converter with reasonable structures and higher reliability make the loader obtaining more drawing force.
* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.

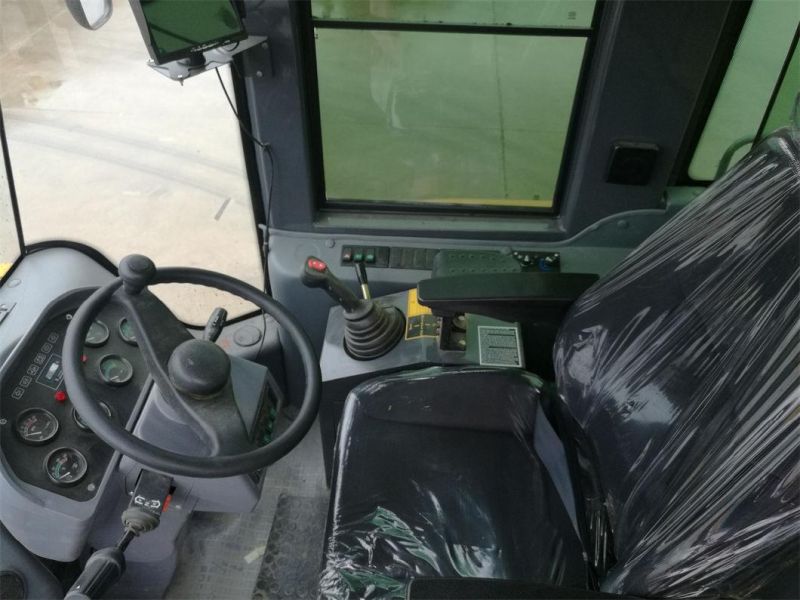

* Single lever joystick control system, comfortable and flexible operation.
* Single pump, split flow working hydraulic system realizes the excellent fuel economy.
* Double sealed hydraulic pipeline joints with 24° Awl and O ring of international standard, avoiding oil leakage;
* Fully hydraulic load sensing steering system, flexible operation and higher reliability.
* Air over hydraulic disks on four wheel brakes.

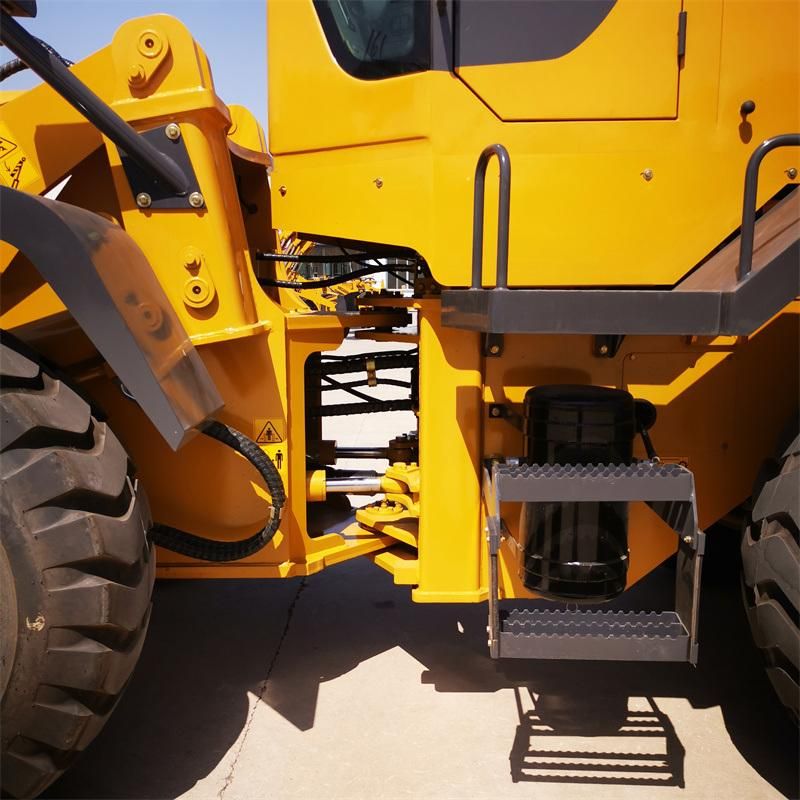

* Large space articulated frames make operation and traveling stable.
* Working device with automatically levelling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin.

Item	Specifications	Item	Specifications
Bucket capacity	1.8 m3	Min. turning radius (outside of  rear wheels)	5160mm
Rated load	3000 kg	Steering angle	36º
Dumping height	3000 mm	Min. ground clearance	375mm
Dumping distance	1100 mm	Wheel base	2845mm
Boom lifting time	5.5 S	Tread	1800mm
Total cycling time	10 S	Engine model	WP6G125E23
Max. speed	36 km/h	Rated power	92kW/2300rpm
Max. breakout Force	120 kN	Tyre specifications	17.5-25
Max.drawing force	90 kN	Overall dimensions	7020*2510*3300mm
Max. Gradeability	30°	Operating weight	10600kg

Company Profile

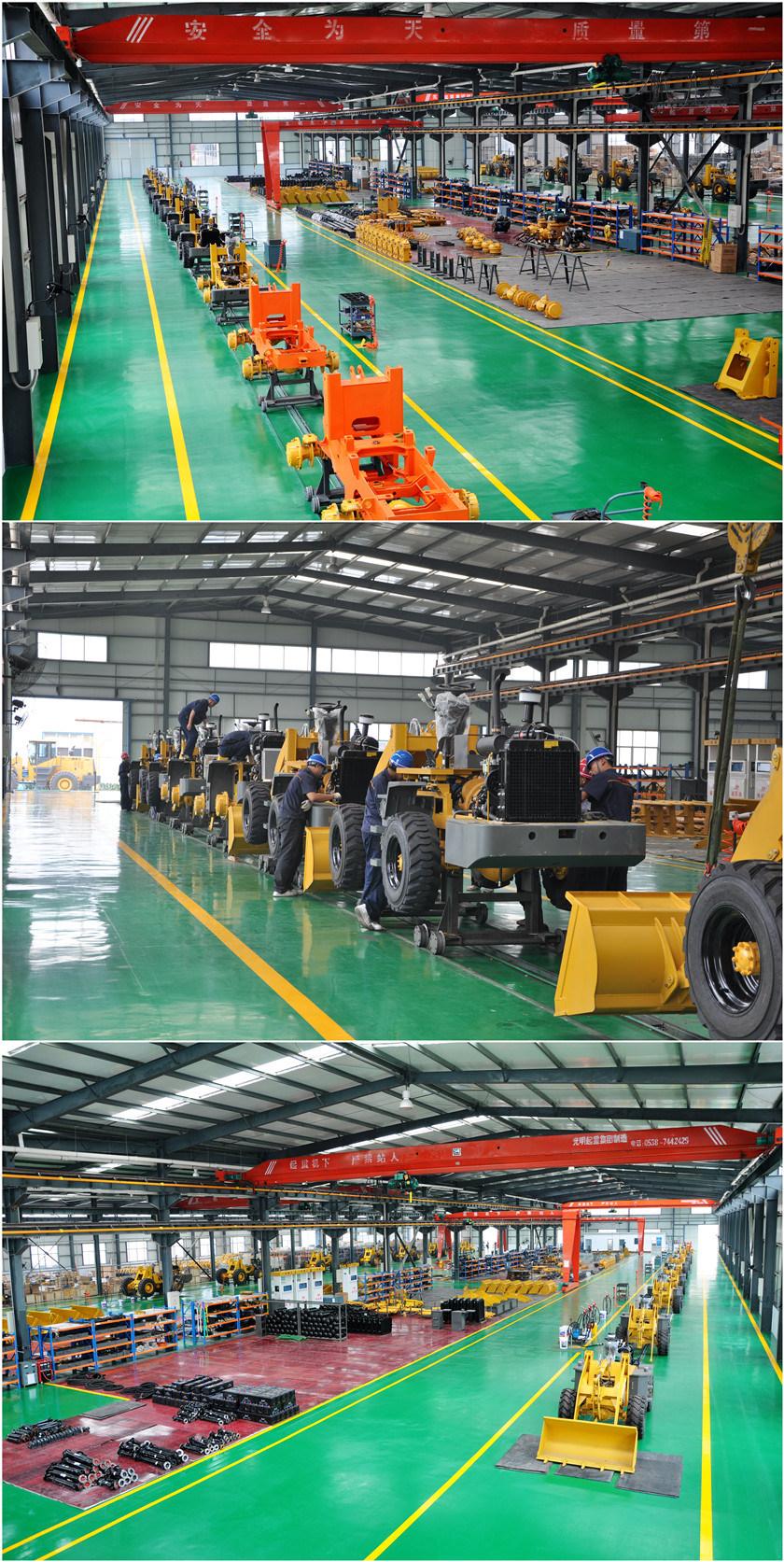

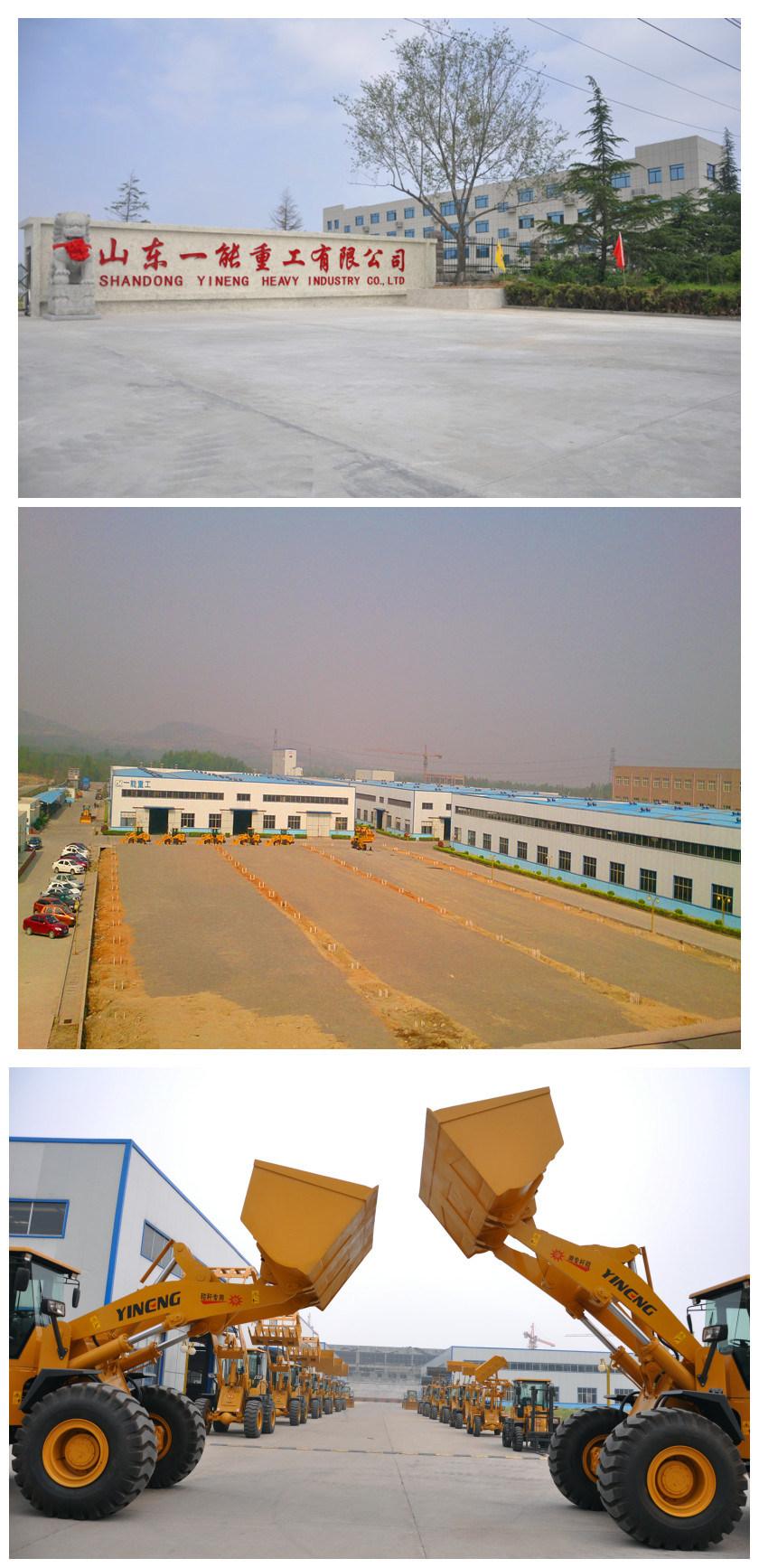

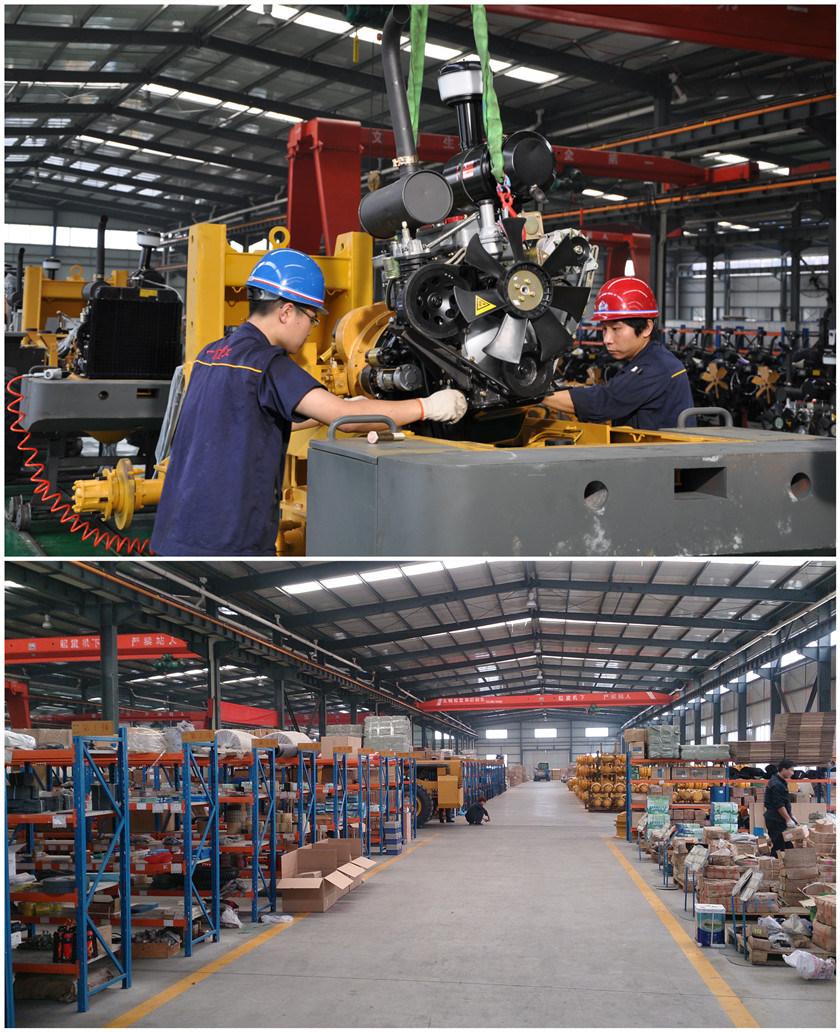

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil,  Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
