Dragon Undercarriage Amphibious Excavator Carriage / Aquatic Excavator
Weifang Dragon Machinery Technology Co., Ltd.- After-sales Service：One Year
- Warranty：One Year
- Type：Amphibious Excavator
- Usage：Marine Excavator, Mining Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：DGAME20
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
- Size：Medium-Sized
- Condition：New
- Weight：20000 Kg
- Power：89.3 Kw
- Color：Customized
- Function：Lake Swamp Wetland
- Transport Package：by Bulk Vessel
- Specification：Customized
- Trademark：Dragon
- Origin：China
- HS Code：8429521900
- Production Capacity：50 Sets,Year
Description
Basic Info.
Model NO. DGAME20 Drive Type Internal Combustion Drive Bucket Capacity 0.1~0.5m³ Size Medium-Sized Condition New Weight 20000 Kg Power 89.3 Kw Color Customized Function Lake Swamp Wetland Transport Package by Bulk Vessel Specification Customized Trademark Dragon Origin China HS Code 8429521900 Production Capacity 50 Sets/YearProduct Description

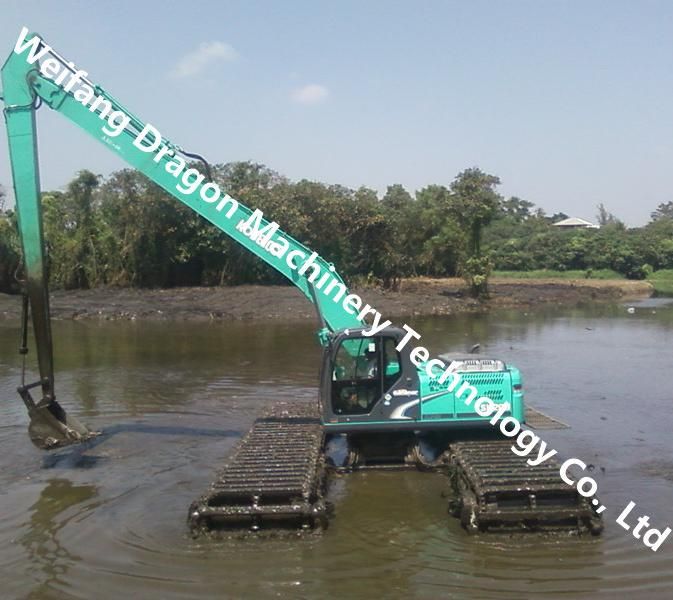

Dragon Undercarriage Amphibious Excavator Carriage / Aquatic ExcavatorDRAGON amphibious excavator is one multifunctional excavator which is suitable for working in swamp, shallow water and land area. This kind of excavator is widely used for dredging work in rivers and lakes, resources and environment protection in wetlands and coastal areas.

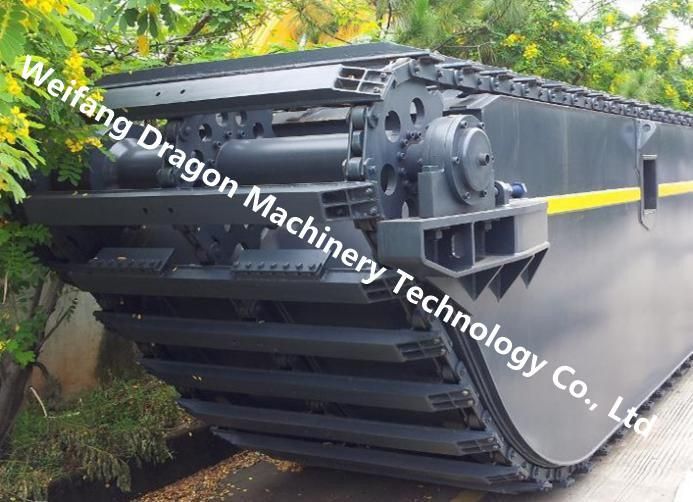

The track shoe and floating pontoon are strengthened specially to enable the amphibious excavator work in hard environment.

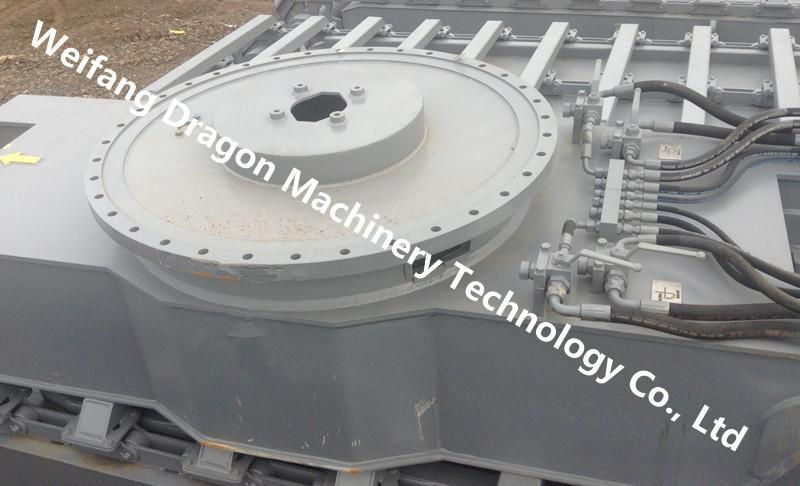

There is one replaceable joint unit between the excavator and floating pontoon which can make it equip with different brands of excavators.

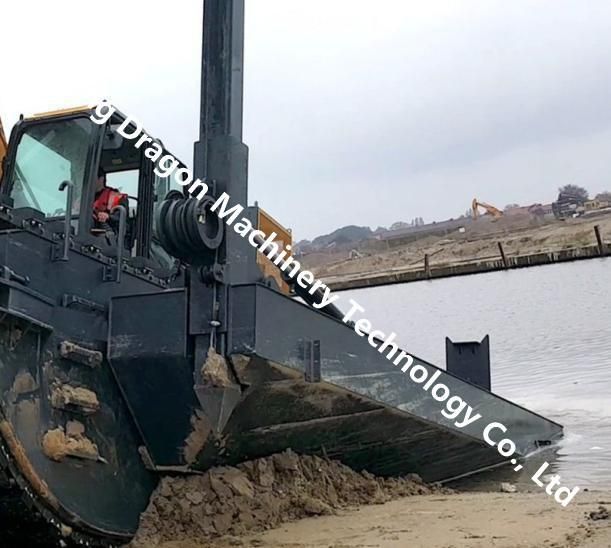

To increase the stability of the amphibious excavator, two spuds can be installed on the floating pontoons.

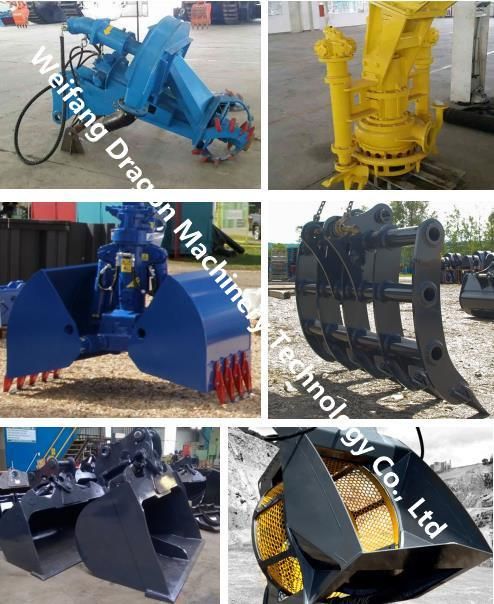

The amphibious excavator can work with differend attachments which enlarges the working range.
Specification
| Model | DGAME15 | DGAME20 | DGAME26 | DGAME30 |
| Weight | 15000 kg | 20000 kg | 26000 kg | 30000 kg |
| Bucket Capacity | 0.25 m3 | 0.4 m3 | 0.9 m3 | 0.9 m3 |
| Installed Power | 56.5 kw | 89.3 kw | 114 kw | 114 kw |
| Walking Speed | 3.8 km/h | 3.1 km/h | 3.2 km/h | 3.1 km/h |
| Rotating Speed | 11 rpm | 11 rpm | 11 rpm | 11 rpm |
| Grade Ability | 30 o | 30 o | 30 o | 30 o |
| Max Digging Depth | 5870 mm | 7360 mm | 5700 mm | 7360 mm |
| Max Digging Radius | 8990 mm | 10810 mm | 9920 mm | 10810 mm |
| Pontoon Dimension | 6640 x 1300 x 1420 mm | 7170 x 1490 x 1700 mm | 8080 x 1490 x 1700 mm | 8290x 1800 x 1650 mm |
