Changlin 936 3 Ton Front End Wheel Loader for Sale
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service:Spare Parts for Free
- Warranty:1 Year
- Certification:TUV, UL, ISO, RoHS, CE
- Condition:New
- Rated Load:1-3t
- Transmission:Hydraulic
Base Info
- Model NO.:936
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
- Type:Medium-sized Loader
- Color:Yellow
- Loader Operation Weight:10500kg
- Loader Gearbox:Zl50 Planet Type with Converter
- Loader Control System:Single Lever Joystick Control
- Loader Bucket Capacity:1.8-2.2m3
- Loader Engine Brand:Cummins or Weichai Deutz
- Loader Service Brake:Air Active Oil, Brake Caliper with Disc
- Scraper Type:Scraper Type
- Engine Power:74~147kw
- Transport Package:by Roro, Bulk Cargo or Container Transprot
- Specification:2.2 CBM
- Trademark:Changlin
- Origin:Guangxi, China
- HS Code:84295100
- Production Capacity:50 Uint, Month
Description
Basic Info.
Model NO. 936 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Color Yellow Loader Operation Weight 10500kg Loader Gearbox Zl50 Planet Type with Converter Loader Control System Single Lever Joystick Control Loader Bucket Capacity 1.8-2.2m3 Loader Engine Brand Cummins or Weichai Deutz Loader Service Brake Air Active Oil, Brake Caliper with Disc Scraper Type Scraper Type Engine Power 74~147kw Transport Package by Roro, Bulk Cargo or Container Transprot Specification 2.2 CBM Trademark Changlin Origin Guangxi, China HS Code 84295100 Production Capacity 50 Uint/ MonthProduct Description

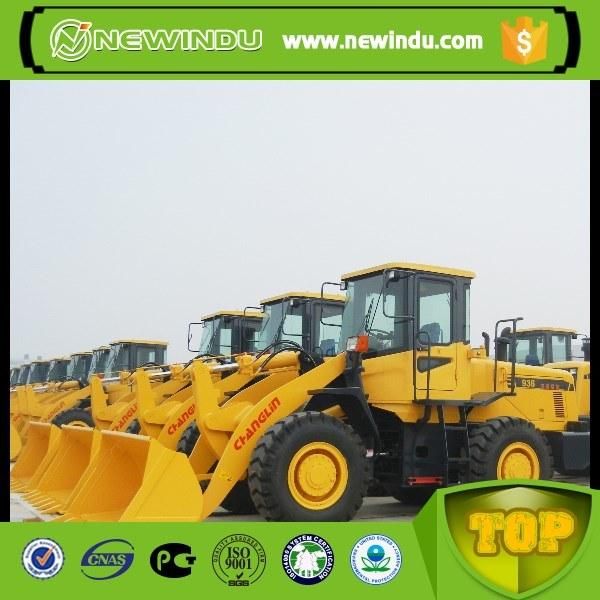

Changlin 936 3 Ton Front End Wheel Loader for Sale
Feature
1.Equipped with Yuchai engine that features large power reservation, low consumption and good power performance.
2.Long -time tested fixed shaft power shift T/M and 3-elements T/C are mature and reliable.
3.Easy, accurate and imported single-handle P.P.C system.
4.Patent streamlined body, humanistic cabin provide operator more space and comfort.
Parameters
Basic Data | |
Bucket capacity | 1.8 m³ |
Rated load | 3200 kg |
Operation weight | 12440 kg |
Dumping height | 3060 mm |
Dumping reach | 1008 mm |
Breakout force | 97 kN |
Traction force | 100 kN |
Wheel base | 2750 mm |
Total hydraulic cycle time | 10.3 s |
Full bucket lifting time | 5.6 s |
Min. turning radius | 5376 mm |
Overall dimension(L×W×H) | 6970×2450×3228 mm |
Engine | |
Model | CUMMINS 6BT5.9-C130 |
Rated power | 97 kw |
Rated speed | 2200 rpm |
Max. torque | 560 N.m |
Fuel consumption | 225 g/kw.h |
Transmission System | |
Gear box type | planetary hydraulic shift |
Forward speed I | 12 km/h |
Forward speed II | 40 km/h |
Reverse speed | 17 km/h |
Torque converter type | single stage 4 elements |
Axle type | four-wheel drive |
Tire size | 17.5-25-12PR |
Our company
Newindu Construction Engineering (Shanghai) Co., Ltd. is professional in construction machinery for nearly 10 years, exporting with good quality and low price, having excavator, truck crane, bulldozer, wheel loader, motor grader, drilling rig, dump truck, road roller, forklift, reach stacker, and also including the spare parts, etc.
