LG936L Compact Wheel Loader with Oil Bath Air Filter Rock Bucket

Shandong Weiyang Construction Machinery Co., Ltd.
  • Certification:TUV, UL, ISO, RoHS, CE
  • Condition:New
  • Rated Load:1-3t
  • Transmission:Hydraulic - Mechanical
  • Load and Unload Mode:Front Discharge
  • Walking Mode:Wheeled

Base Info

  • Model NO.:LG936L
  • Type:Medium-sized Loader
  • Model Number:LG936L
  • Engine:Wp6g125e22
  • Load:3000kg
  • Bucket Capacity:1.8m3
  • Rated Power:92kw
  • Working Type:Hydraulic Pilot Control
  • Operating Weight:10700kg
  • Transport Package:RO-RO or 40 Container
  • Specification:7230*2520*3170 MM
  • Trademark:LG
  • Origin:Shandong, China
  • HS Code:8429510000
  • Production Capacity:5000 Sets,Year

Description

ItemSpecificationsItemSpecificationsItemSpecificationsOverall dimensionOperating weight10700kgSpeed at forward gear 10-38km/hL×W×H7100×2520×3170mmMax. Tractive force≥105kNSpeed at reverse gear 20-17km/hWheelbase2850mmMax. Breakout force≥96kNHydraulic systemMin. Ground clearance370mmTipping load≥66kNTypeHydraulic pilot controlMax. Dumping height2950-3278mmEngineTotal time≤9sLifting height3789mmModelYC6J125Z-T20Brake systemDumping distance1020-1050mmTypeInline, Water-cooled, wet cylinder, direct injectionService brake typeAir over hydraulic disc typeMax. Gradeability30Rated power Speed92kw/2200r/minPacking brake typeElectric air control disc brakeDumping angle45Engine displacement6494mmSteering systemBucket rollback at ground level45Cylinder bore/stroke105/125mmTypeLoad-sensing fully hydraulic articulated steeringWidth of complete machine(outside of rear wheelM)2310mmMax. Torque500NmSystem pressure12MPaWheel tread1865mmEmission standardGB20891 IIFill capacitySteering angle38Min. Fuel-consume ratio≤235g/kw. HFuel140LHorizontal crossing radius5912mmTransmission systemHydraulic oil128LMin. Turing radius5381mmTorque converterSingle-stage four-element double-turbine hydraulic torque converterEngine17LOverall parametersTransmission typePlanetary power shiftTransmission45LBucket capacity1.6-1.8m3GearsForward 2 reverse 1Bridge2×18LRated load3000kgSpeed at forward gear 10-13km/hBrake system4L

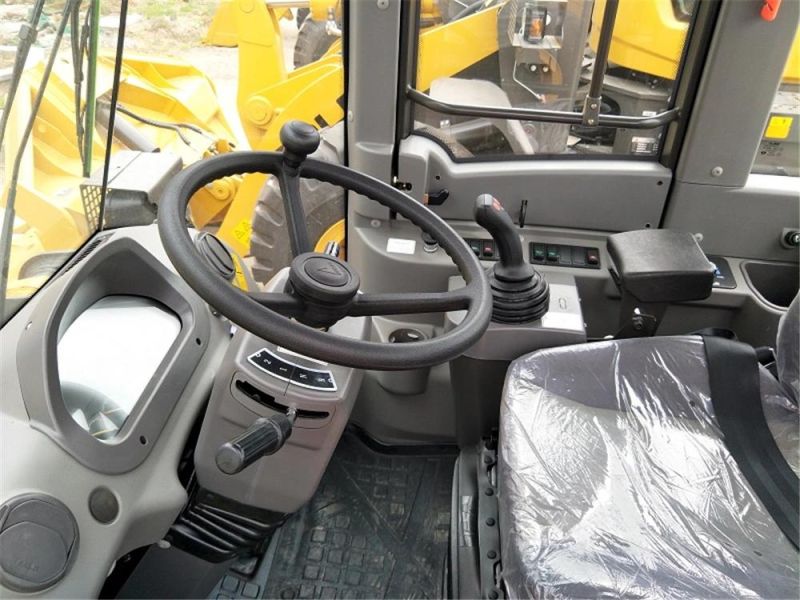

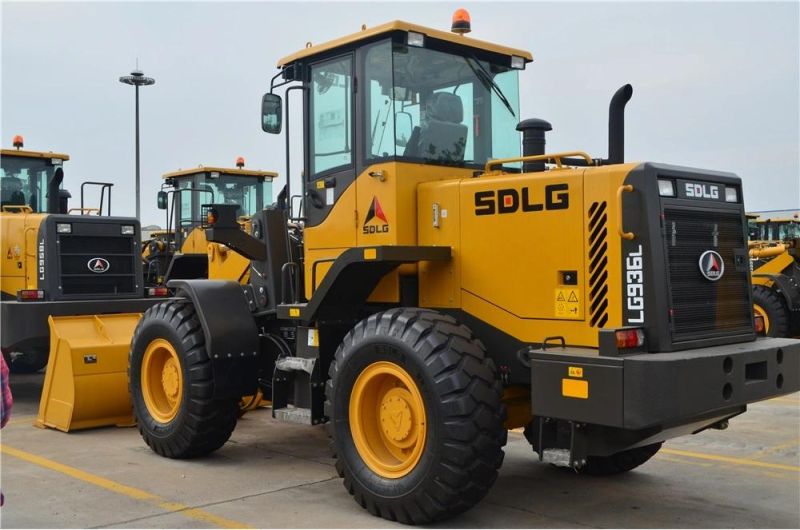

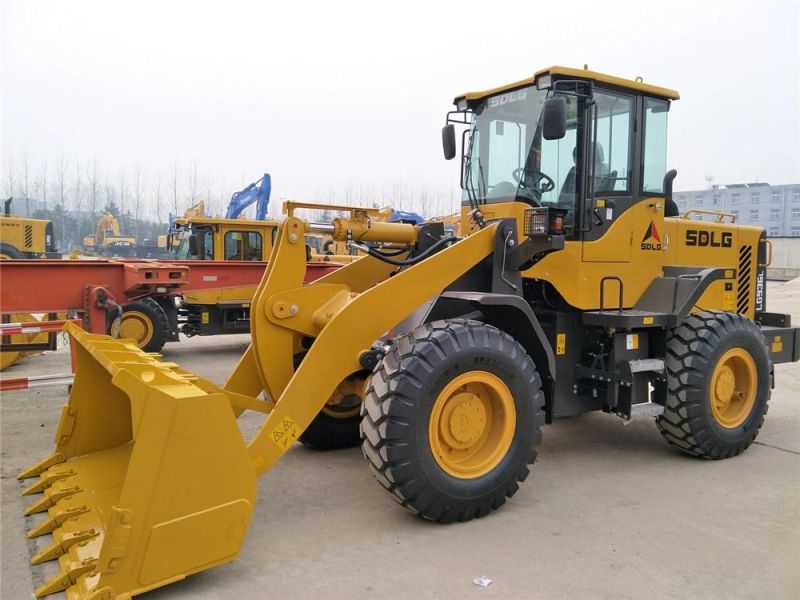

[Detailed photos]
LG936L Compact Wheel Loader with Oil Bath Air Filter Rock Bucket

LG936L Compact Wheel Loader with Oil Bath Air Filter Rock Bucket
LG936L Compact Wheel Loader with Oil Bath Air Filter Rock Bucket
[Company Information]

Shandong Weiyang Construction Machinery Co.,Ltd has been offering a complete range of most reliable and cost effective construction equipments from China to rest of the worldwhich include but not limited to wheel loader,backhoe loader,motor grader, road roller,excavator, truck crane,bulldozer,and etc.
As one of the biggest export distributors of SDLG, and Shantui products,our business has reached more than 60 regions or countries world widely.

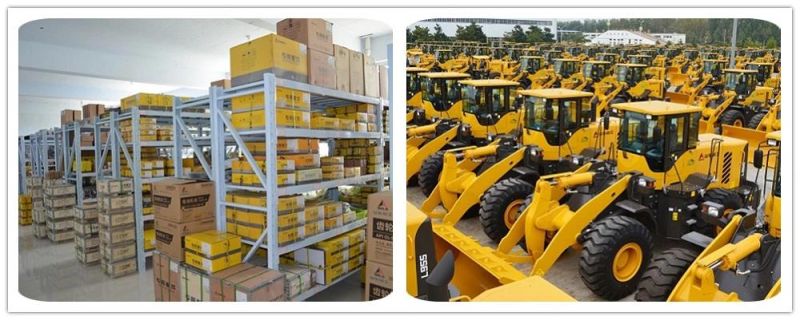

Besides,we are also supplying genuine parts. The 2000m3 warehouse and convenient transportation willguarantee you the high availability and short lead time.
Each of our team is rich in construction machinery background and committed to create the most values to our ustomers.
