• Model NO.：HBT50
• Feeding Height：1380mm
• Vibrating Amplitude：2.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Engine Model：Hx-Hbt5008-62s
• Max.Concrete Output(Theoretical) Low/Hig：50 M3,H
• Max.Delivery Pressure(Theoretical) Low/H：8 MPa
• Delivery Cylinder Bore*Strok：Od180*1400 mm
• Gross Weight：3950 Kg
• Transport Package：Container Packing
• Specification：5670*2045*2370 mm
• Trademark：Huaxing
• Origin：Hunan, China
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. HBT50 Feeding Height 1380mm Vibrating Amplitude 2.0mm Certification ISO9001: 2000, CE Condition New Color Yellow Engine Model Hx-Hbt5008-62s Max.Concrete Output(Theoretical) Low/Hig 50 M3/H Max.Delivery Pressure(Theoretical) Low/H 8 MPa Delivery Cylinder Bore*Strok Od180*1400 mm Gross Weight 3950 Kg Transport Package Container Packing Specification 5670*2045*2370 mm Trademark Huaxing Origin Hunan, China Production Capacity 100PCS Per Month

Product Description

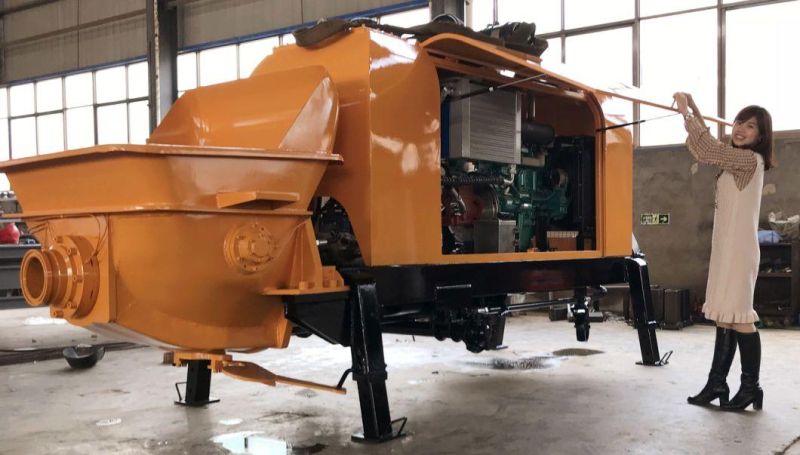

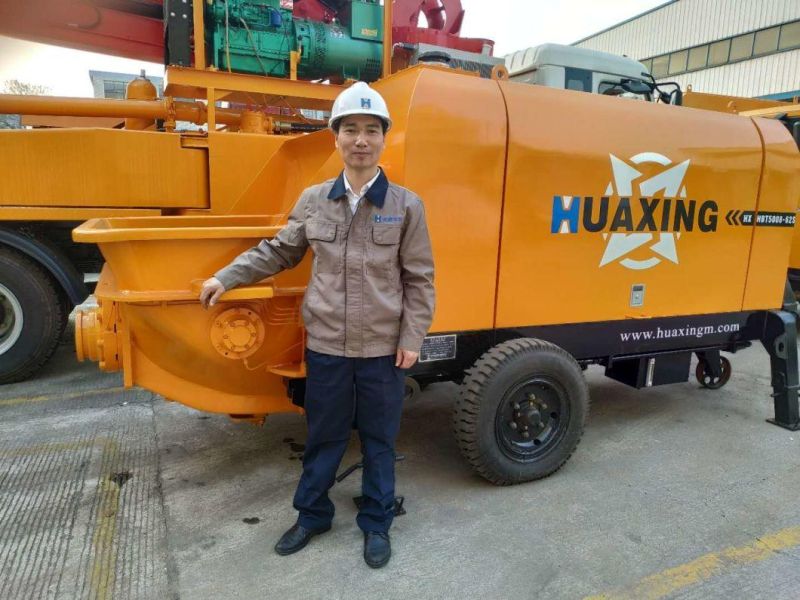

HX-HBT5008-62S trailer pump has maximum output of 50 cubic meter per hour, equipped with self-diagnosis technology monitoring the pump status at any time as well as diagnosing more than 50 faults in real time. The 50 cubic meter trailer pump is capable of reducing the troubles shooting time by 70%, granting you both time and peace of mind.

Specification:

Engine model	HX-HBT5008-62S
Max.delivery pressure(theoretical) Low/High pressure	8 Mpa
Max.concrete output(theoretical) Low/High pressure	50 m³/h
Delivery cylinder Bore*Strok	Φ180×1400 mm
Hopper capacity*Feeding height	0.6×1240 m³/mm
Dimension (L*W*H)	5670×2045×2370 mm
Gross weight	3950 kg
Max.aggregate size Φ150mm delivery pipe	50 mm
Max.aggregate size Φ125mm delivery pipe	40 mm
Type	S-Valve
Slump of concrete	100~230 mm

Low Costs and Wide Adaptability

Advanced Energy-saving Tech
New-generation energy-saving technology and automatic adjustments of the engine and power based on load makes every drop of fuel produce strong power, reducing 25% of energy consumption.

Wear Resisting Parts
Discharge port, wear plate and cutting ring, concrete piston and delivery cylinder adopt Sino-Germany high-tech materials and advanced technology to greatly improve the product performance.

Wide Adaptability
Capable of operating under any condition from -22°C to 55°C, operating continuously for up to 12 hours, can handle any fluid, pumping of difficult concrete like B90, C150, and 3-gradation concrete and even pump materials such as silt, slag, waste materials, and mortar.

Advanced Hydraulic System

Pressure Difference Sensing & Reversing Hydraulic System
With pressure difference sensing and reversing technology, in addition to electro-hydraulic proportional buffering technology, the pump is able to filter impurities self-cyclically with an open-type system, keeping the hydraulic oil clean and cooled. This helps maximize system efficiency, mitigate abrasion between parts, thereby prolonging the pump's service life and reducing maintenance costs.

Automatically Retracted Double-piston
Only one button is needed to retract two concrete pistons into the water tank. This cuts the time for replacement and maintenance in half, making daily maintenance more convenient.

Large-flow High-efficiency Main Valve System
The system adopts high-pressure, large-flow, and electro-hydraulic precision control main valve, as well as an integrated valve bank with an optimized runner design. The system is able to sport a short reversing time, low pressure loss, cooler temperatures, and high reliability for the user.

Intelligent Control

Back-up System
When the peripheral test loop incurs faults during the construction process, "Compulsory" pump operation can be activated for emergency handling.

Improved Performance
Use a dedicated pumping motion controller that integrates a classic pumping algorithm and function libraries, resulting in an increased arithmetic speed and overall improved performance.

Efficient Pump System

A Faster, More Efficient Design
Pressure difference sensing and reversing technology, as well as main oil pump electric proportional control buffering technology to decrease reversing time. As such, SANY pump is able optimize the main oil cylinder and swing cylinder buffering & reversing time matching, resulting in extremely high-efficiency pumping.

Powerful Mixing Motor Handles Everything
Forced feeding by large-displacement and large-torque steel ball motor. The motor mixes normally when there is an aggregate difference and the hopper is heightened, preventing the mixing motor from getting stuck and improving aggregate absorption performance.

Large-bore Reversing Cylinder
Pumping system uses a large-bore reversing cylinder to make reversing powerful and completely avoid pipe blocking.

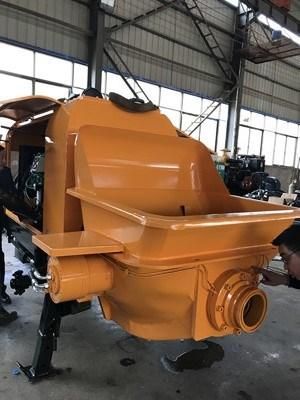

Improved Hopper, Improved Effectivity
The new hopper optimizes the hopper's inner cavity to improve the aggregate absorbing efficiency, guard against aggregate inapplicability, and easily handle high-difficulty concrete.
