• Vibrating Amplitude：0.8mm
• Certification：ISO9001: 2000
• Condition：New
• Color：Orange
• Transport Package：Wood,Carton
• Specification：18.5KW 22KW
• Trademark：Zhongli
• Origin：Jiangxi
• HS Code：8464102000
• Production Capacity：900 Sets ,Year

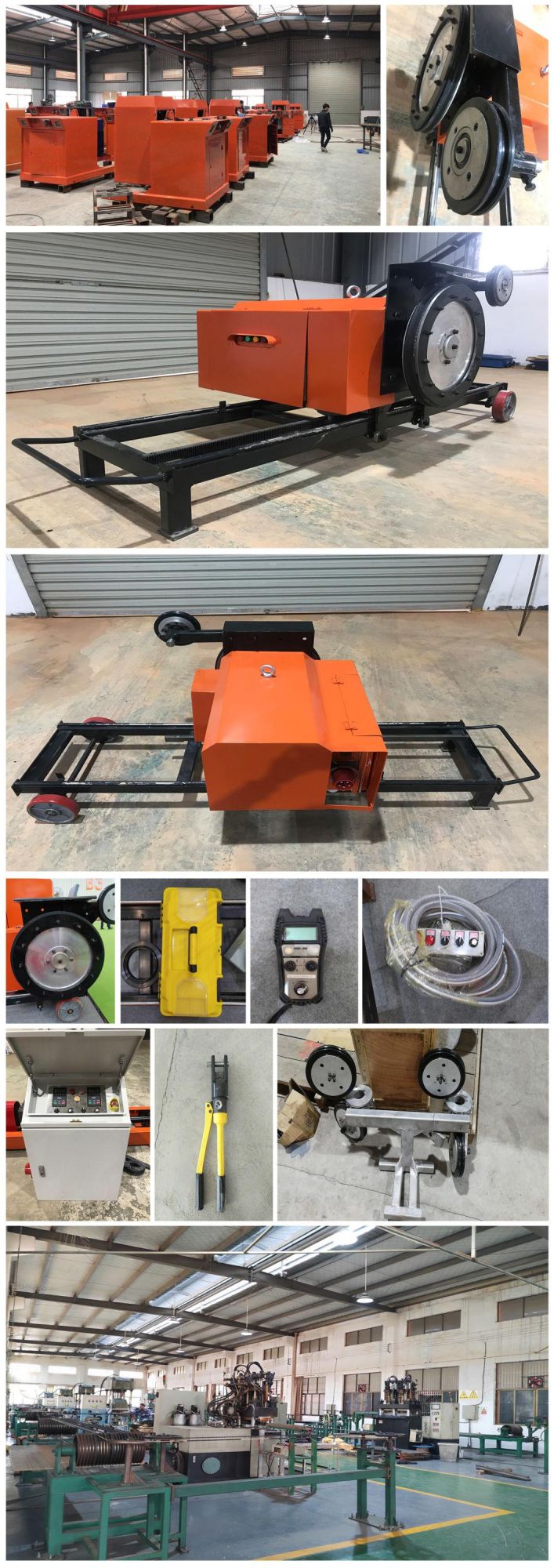

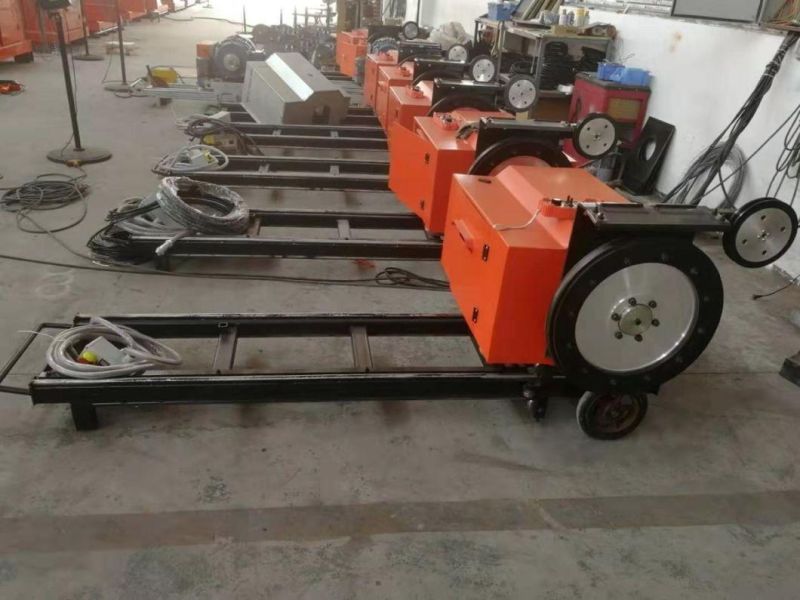

ModelZL-22FATSZL-18FATSDriving wheel Dia.500/550mm500/550mmMotor power22KW18.5KWLength of wire20-5020-50Wire speed0-40m/s0-40m/sWalking speed0-144m/h Waking motor power0.2KW0.2KWRail length1550mm1550mmRail width470mm470mmRPM0-980r/min0-980r/minVoltageAC380±10% 50Hz 3phaseAC380±10% 50Hz 3phaseWorking environment temperature(-15ºC- +40ºC)(-15ºC- +40ºC)Total weight450kg420kgSize2400*900*900mm2400*900*900mm
 ParametersTechnical requirementsFilled by Supplierpower source typeelectric or hydraulicElectricnominal powerfrom 10 to 25 kW22kwSystem voltage3 phases, 400 ± 20 V, 50 Hz3 phases,380,50hzmaximum wire speedAdjustable, at least 22m / s30m/s
(double frequency converter)wire holding capacitynot less than 9m (holding at least 9m length wire)Yeselectrical resistance classnot less than IP 54IP56remote control unit (remote control)wired or wirelessYesWire protectionMust beYesWater supply kitMust beYesHydraulic hose kit (if applicable, i.e., electrohydraulic system)must beIts electric type,no need to use this kitdiamond cutting wireIt must be possible to cut reinforced concrete, the minimum length of each rope is at least 100 m.Yes
11.5mm or 10.5mm beads diamterkit for connecting wiresHand (manual) pressyes jointsyespulleys to guide the wirewith holder/handleYesRepair KitThe kit must be approved by the manufacturer of the cable cutting system.yesComposition of the kit must ensure the operation of the wire-cutting system for 2 years, taking into account that within one year the wire-cutting system will operate for 1000 hoursCan ensure work 2000 hoursThe cutting system must comply with the 2006/42 / EC (Machinery Directive) and 2014/35 / EU (electrical safety) or equivalent yesThe guaranteed period of the supplied goods must be not less than 2 years from the date of signing the acceptance-transfer act.  1-year guarantee
or 2000 hours, as which come firstDuring the warranty period, the Supplier must repair or replace the goods or its parts that do not comply with the parameters specified in the operating or maintenance documentation. Yes,
Exclude damage to machine parts caused by intentional damage or operational errors.
Consumables can be replaced free of charge during the warranty periodThe goods supplied and the parts to be replaced during the warranty period must be new and not used. yes

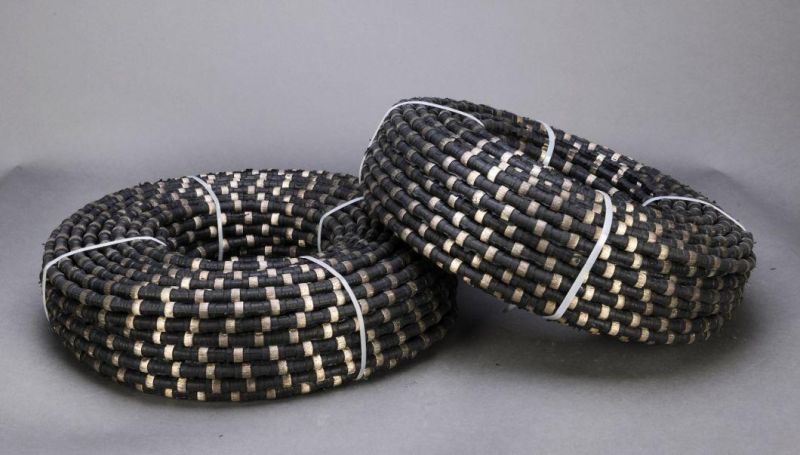

Diamond Wire Saw for concrete cutting technincal parameters



DiameterCoating typeBeads/mMaterialWire speed
(m/s)Sawing speed
(m/s)Wire life
(m2/m)11.5Rubber+spring40/mNormally reinforced22-252-4.52-611.0Highly reinforced20-221.5-3.52-410.5Steel/metal reinforced18-200.5-21-3

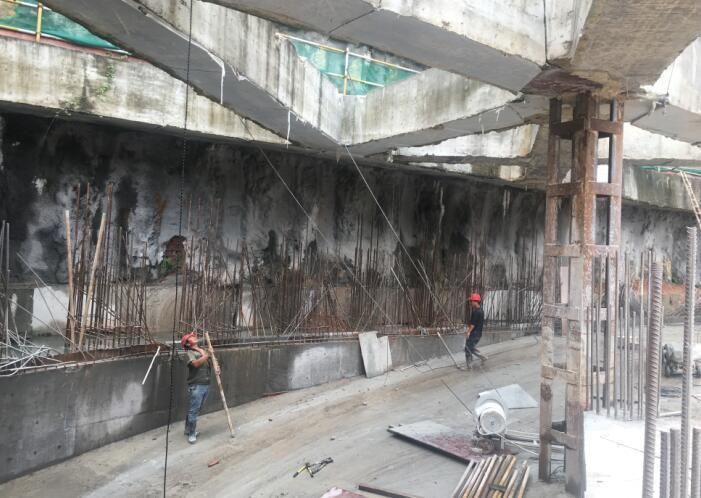

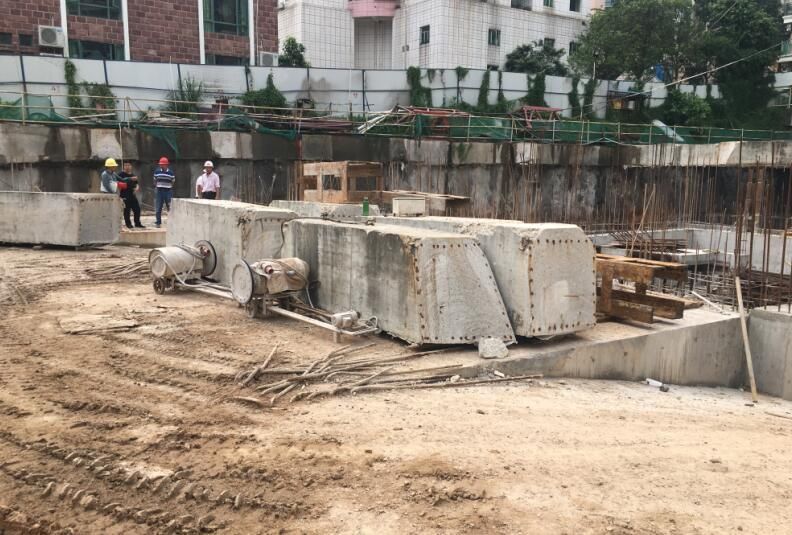

Clients feedback of concrete wire saw performance

1. Finland market cutting bridge
--Material cutting area: 15 square meters, Steel pipe inside.
--Wire diameter: 10.5mm
--Machine power: 18.5kw/22kw
--cutting speed: 3 square meters per hour;
--Wire life: 2.5 square meters per meter

2. Japan market cutting building
--Material cutting area: 1.5 square meters, 25mm thickness steel inside.
--Wire diameter: 11.5mm
--Machine power: 18.5kw/22kw
--cutting speed: 2.4 square meters per hour
--Wire life: 2.6 square meters per meter

2. Thailand market cutting building
--Material cutting area: 1.2 square meters, 32mm thickness steel inside.
--Wire diameter:11.5mm
--Machine power: 18.5kw/22kw
--cutting speed: 1.2 square meters per hour
--Wire life: 1.4 square meters per meter
