• Model NO.：HBTSL40
• Shotcrete Type：Wet
• Machining Process：Hydraulic
• Structure：Cylinder Type
• Productivity：7-11m³,H
• Feeding Height：1380mm
• Vibrating Amplitude：1.3mm
• Certification：CE
• Condition：New
• Color：Orange
• K1：Concrete Mixer Pump
• K2：Concrete Pump Price
• Name：Cement Pump for Sale
• K3：1200 Concrete Cement Mixed Soil Delivery Pump
• Host Quality Kg：3400 Construction Cement Mixer Pump
• Most Suitable for Pumping Concrete Slump：15—2 Cement Trailer Pump

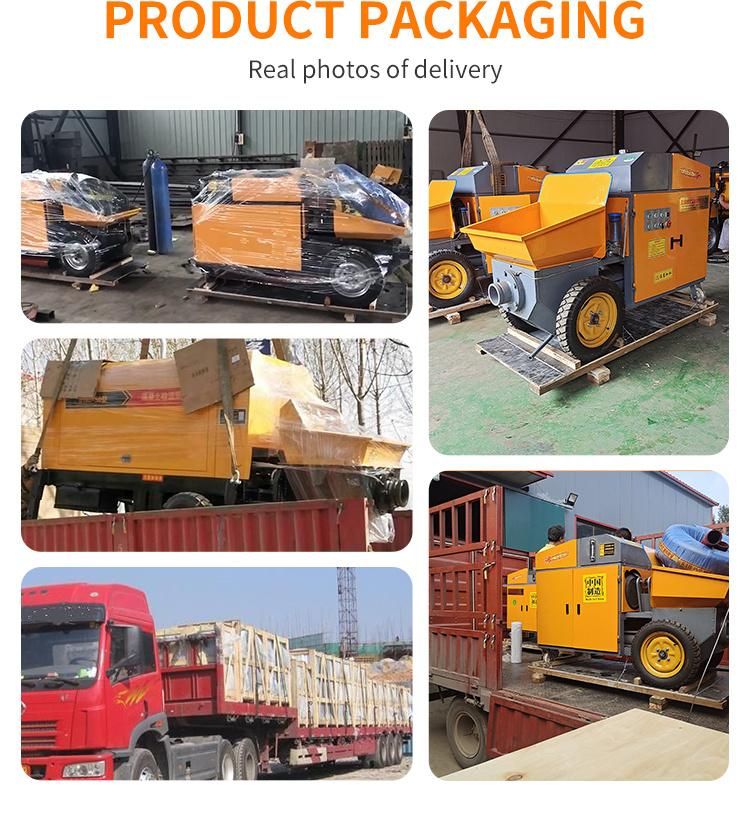

• Transport Package：Wooden Case or as Required by The Customer
• Specification：4300× 1600× 1800mm
• Trademark：China Coal
• Origin：China
• Production Capacity：1000 Sets Per Month
• Package size per unit product：800.00cm * 800.00cm * 800.00cm
• Gross weight per unit product：800.000kg

Basic Info.

Model NO. HBTSL40 Shotcrete Type Wet Machining Process Hydraulic Structure Cylinder Type Productivity 7-11m³/H Feeding Height 1380mm Vibrating Amplitude 1.3mm Certification CE Condition New Color Orange K1 Concrete Mixer Pump K2 Concrete Pump Price Name Cement Pump for Sale K3 1200 Concrete Cement Mixed Soil Delivery Pump Host Quality Kg 3400 Construction Cement Mixer Pump Most Suitable for Pumping Concrete Slump 15—2 Cement Trailer Pump Transport Package Wooden Case or as Required by The Customer Specification 4300× 1600× 1800mm Trademark China Coal Origin China Production Capacity 1000 Sets Per Month

Packaging & Delivery

Package size per unit product 800.00cm * 800.00cm * 800.00cm Gross weight per unit product 800.000kg

Product Description

Introduction of Construction Machinery Diesel Electric Portable Small Mini Stone Cement Beton Mixer Mortar Piston Mortar Grouting Machine Trailer Concrete Pump

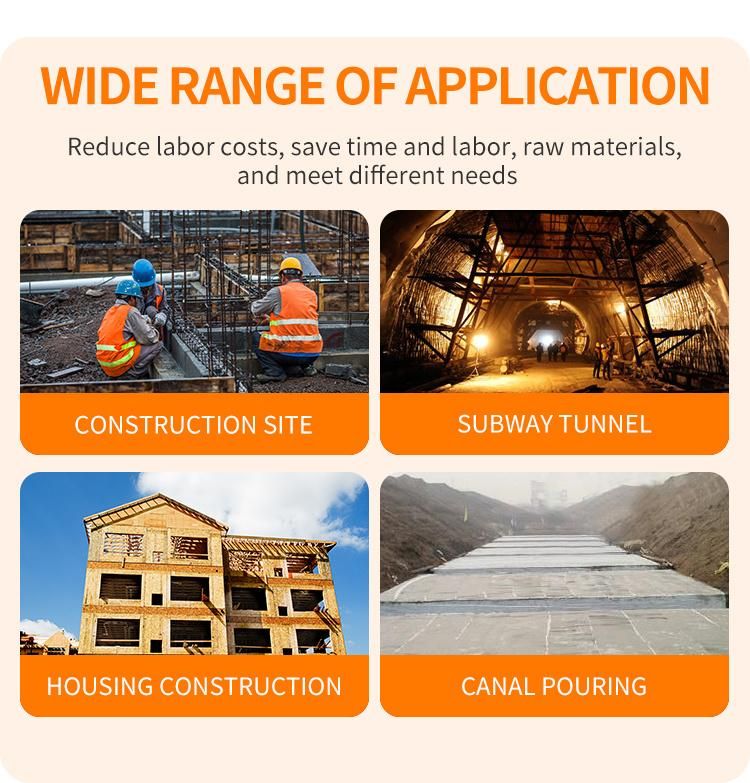

The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel Backfill grouting anchor support in subway and mine construction. Other descriptions This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building application. This product has large displacement, high pressure, labor saving, flexible movement, etc. Features, is an ideal mortar conveying equipment. The pump is widely used in indoor construction of urban construction projects (such as infusion of structural columns and invisible columns), anchorage grouting, consolidation grouting and backfill grouting works for underground tunnels of urban subway hydropower stations. It can also be used for grouting of anchor piles during slope and soft rock reinforcement.zmwm07


Parameters of Construction Machinery Diesel Electric Portable Small Mini Stone Cement Beton Mixer Mortar Piston Mortar Grouting Machine Trailer Concrete Pump



Project	Unit	HBTS25	HBTS40	HBTS60	HBTS80
Maximum theoretical delivery	m³/h	23	40	60	80
Maximum outlet pressure	Mpa	8	13	13	13-16
Maximum theoretical transport distance	m	100/300	200/800	240/1100	240/1100
Motor Power	kw	30	55	90	90-110
Feeding height	mm	1200	1200	1350	1350
Pumpable concrete maximum particle size	mm	≤50	≤40	≤40	≤40
Most suitable for pumping concrete slump	cm	15-23	15-23	15-23	15-23
Duct inner diameter	mm	Φ125	Φ125	Φ125	Φ125
Host weight	Kg	1900	3400	5000	5600
Dimensions: length × width × height	mm	3300×1600 ×1800	4300×1600 ×1800	5500×1800 ×2000	5800×1800 ×2000

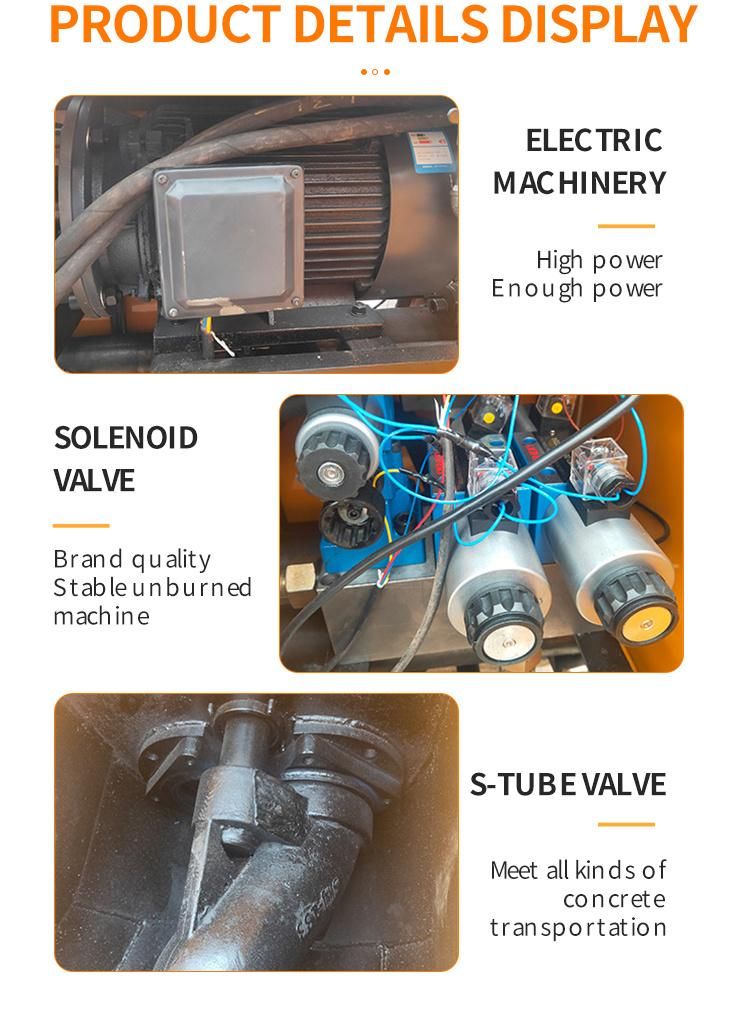

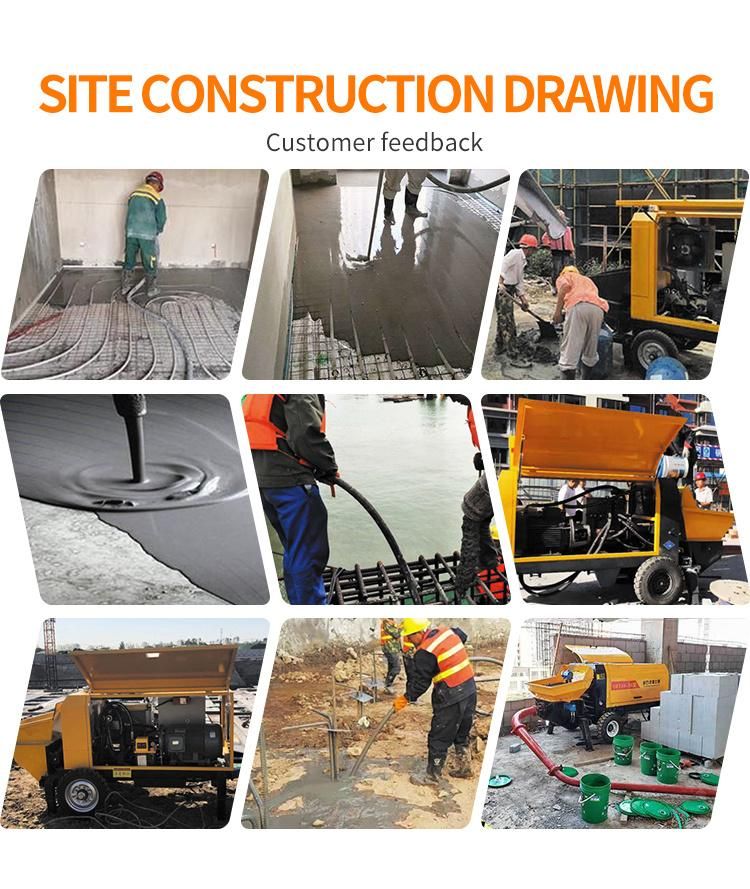

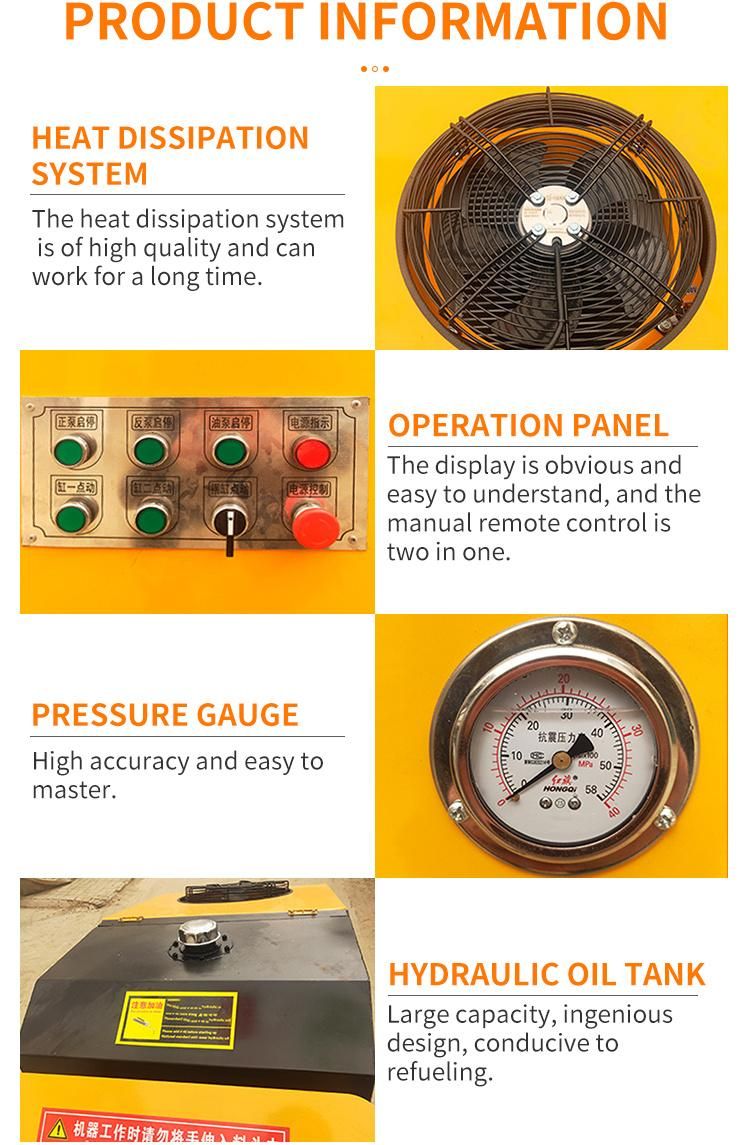

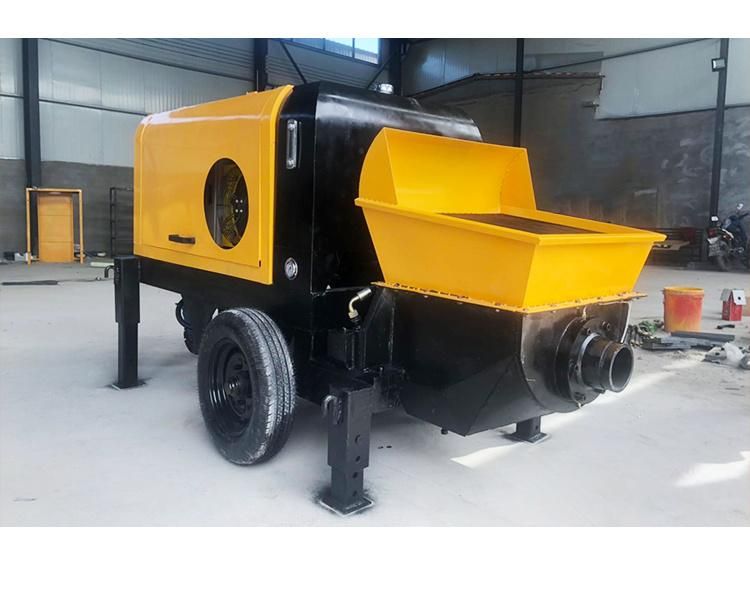

Photos of Construction Machinery Diesel Electric Portable Small Mini Stone Cement Beton Mixer Mortar Piston Mortar Grouting Machine Trailer Concrete Pump
