CE EPA Engine 0.8ton/1ton Household Hydraulic Small Digger Crawler Mini Excavator Machine
Shandong China Machinery Co., Ltd.- Warranty：One Year Warranty
- Type：Crawler Excavator
Base Info
- Model NO.：HT10
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Garden Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Diesel ,Gasoline
- Bucket Capacity：0.02cbm
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Digging Bucket Capacity：0.025cbm,120 Kg
- Rated Power：8.6kw,3600 Rpm
- Bucket Width：380 mm
- Weight：800 Kg
- Optional Engine：Changchai, Koop, Euro 5, EPA Engine
- Max. Digging Depth：1650 mm
- Max. Vertical Digging Depth：1375 mm
- Max. Digging Height：2610 mm
- Max.Dumping Height：1850 mm
- Max.Digging Radius on Ground：2850 mm
- Transport Package：Wooden Case
- Specification：800 kg
- Trademark：HT
- Origin：Shandong, China
- HS Code：8429521200
- Production Capacity：300 Sets , Month
- Package size per unit product：277.00cm * 93.00cm * 221.00cm
- Gross weight per unit product：900.000kg
Description
Model
HT10
Operate Weight
1000KG
Digging bucket capacity
0.025cbm/120kg
Bucket width
380mm

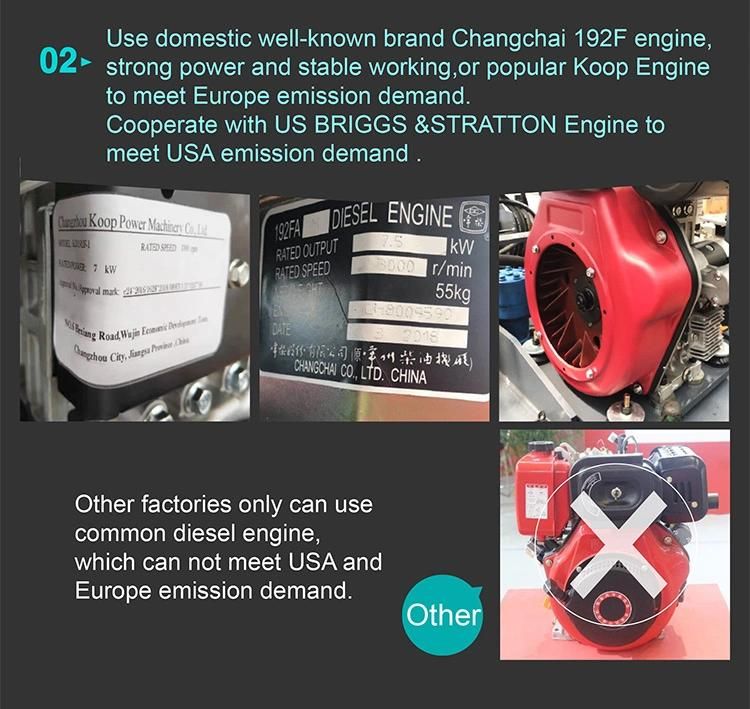

Engine
CHANGCHAI (KD192),Single cylinder, fan cool
Optional engine
BRIGGS & STRATTON/LCT EPA, Euro 5
Rated power
8.2kw/3600r/min
Main pump
CBK-F6.8
Displacement
6.8ml/r
Swing motor
SJ-TECH (MP-1-160)
Traveling motor
KERSEN(OMS-2450)
Travel speed
1.2km/h
Overall dimension( LxWxH)
2590x800x1250 mm
Max. Digging depth
1200mm
Max. Vertical digging depth
1375mm
Max. Digging height
2350mm
Max. Dumping height
Max. Digging radius on ground
Min. Rotation radius
Max. Upgrade height of bulldozer blade
Max. Digging depth of bulldozer blade
1. Easy to operate
Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
2. BIG PERFORMANCE IN A COMPACT DESIGN
Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
3. SAFETY ON THE JOB SITE
Your safety is our top priority. The mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we've built into the machine.
4. LOWER OPERATING COSTS
Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the mini excavator was designed with reducing your operating costs in mind.
Details image:
