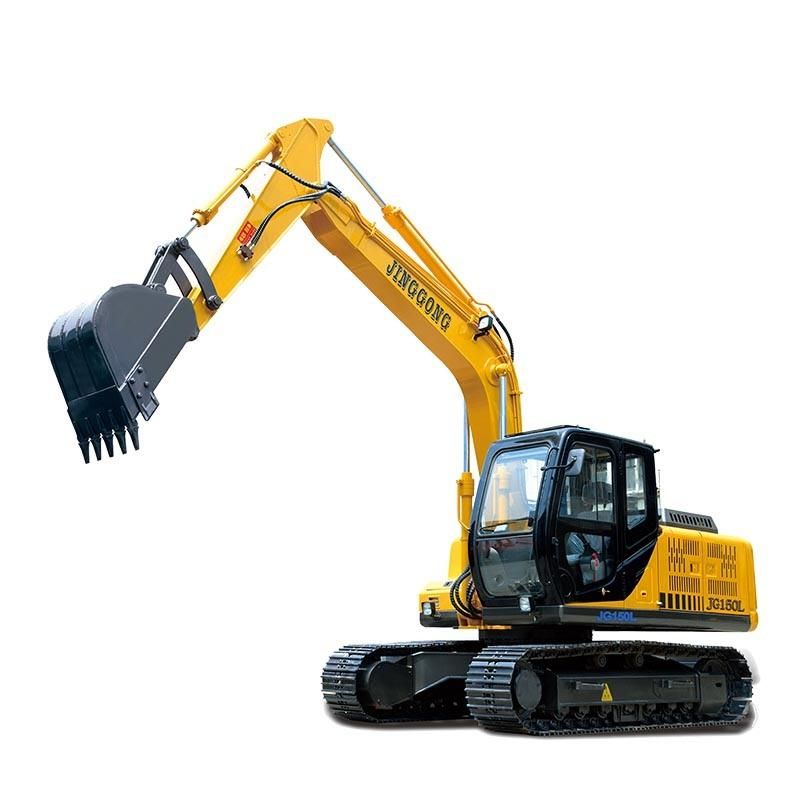

• Model NO.：JG150L
• Transmission：Hydraulic Transmission
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Nude Packing
• Specification：6720*2230*2660mm
• Trademark：JING GONG
• Origin：China
• HS Code：842952
• Production Capacity：3000sets,Year
• Package size per unit product：10.00cm * 10.00cm * 10.00cm
• Gross weight per unit product：1000.000kg

JG150L Crawler Excavator SPECIFICATIONS
RANGE OF OPERATIONBoom length3830mmArm length1615mmMaximum Digging Reach6750mmMaximum Digging Depth4407mmMaximum Digging Force60KNMaximum Digging Height6550mmMaximum Dumping Height4500mmBack-end radius of gyration1950mmDIMENSION(Length*width*height) travel position6720*2230*2660mmMachine Height 2660mmWheel base2320mmTrack Gauge1785mmWidth Of Crawler450mmWidth Of Platform 2230mmGround clearance of counterweight850mmMin ground clearance360mmTECHNICAL PARAMETERSAngle of rotation360°Machine weight8700kgEngine modelYN38GBZ/4102 (turbocharged) Hydraulic system working pressure23.5MpaRated Power65KWRated Speed2400r/minMax Hauling force58.5KNWalking speed(High speed/low speed)4.8/2.8km/hGrade Climbing ability70%/35°Full circle swinging time5.5sVolume Of Bucket0.36m3Revolution Overdrive Pressure20MpaFqt Fuel Quantity ≥6L/hCapacity Of The Fuel Tank137LHydraulic Tank Capacity 109L

Please see the advantages of China Jinggong crawler excavators.

1. Use specified high-quality cylinder

2. New Integrated console makes it comfortable when operating

3. Development Patent: Grapple rotates flexibly to improve work efficiency

4. Luxury cab with air conditioner & multi-functional charging interface & comfortable seat with shock resistance, Lift cab,
bright and spacious, wide vision, low noise, reduce driver's fatigue and improve work efficiency

5. Full hydraulic pilot operation, advanced and perfect operation system, light and flexible

6. The whole machine use high-quality steel, which is strong, reliable and more durable

7. Strong drive system, high carrying capacity, great tractive force to resist impact

8. Equipped with multi-way valve, hydraulic system, walking motor from South Korea, advanced and reliable

9. New condition engine with turbocharged, adopt domestic famous engine brand, which ensures low fuel consumption,
strong power and high reliability

10. Inlet and outlet oil tubes are all used steel braided tubes, oil resistant and high-pressure tubes, safe and reliable

11. Use engineering cross-country tires, strong anti friction

Warranty



We grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period,
in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or
replaced free of charge, at our discretion.



Spare Parts

If there is a sole sales agent in your country, then you can buy directly from our agent, to save the time and shipping cost. If no,
we also will send you the spare parts you need directly by shipping or by courier to your address after payment.

We are dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function.
With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your
spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee
that your request will be handled quickly and appropriately.



Training



We offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions
include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations
training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our
factory field, or at the client's site.



Technical Advice



We can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your
specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
