High Quality Competitive Price Factory Direct OEM Large Capacity Amphibious Excavator for Dredging Work
Weifang Dragon Machinery Technology Co., Ltd.- After-sales Service:One Year
- Warranty:One Year
- Type:Amphibious Excavator
- Usage:Special Excavator, Marine Excavator, Mining Excavator
- Bucket:Backhoe
- Transmission:Hydraulic Transmission
Base Info
- Model NO.:DGAME15
- Drive Type:Internal Combustion Drive
- Bucket Capacity:0.1~0.5m³
- Size:Small-Scale
- Condition:New
- Weight:15000 Kg
- Power:56.5 Kw
- Maximum Digging Depth:5870 mm
- Maximum Digging Radius:8990 mm
- Floating Pontoon Dimension:6640 X 1300 X 1420 mm
- Minimum Ground Clearance:734
- Color:Customized
- Transport Package:by Containers
- Specification:Customized
- Trademark:Dragon
- Origin:China
- HS Code:8429521900
- Production Capacity:50 Sets,Year
Description
Basic Info.
Model NO. DGAME15 Drive Type Internal Combustion Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Condition New Weight 15000 Kg Power 56.5 Kw Maximum Digging Depth 5870 mm Maximum Digging Radius 8990 mm Floating Pontoon Dimension 6640 X 1300 X 1420 mm Minimum Ground Clearance 734 Color Customized Transport Package by Containers Specification Customized Trademark Dragon Origin China HS Code 8429521900 Production Capacity 50 Sets/YearProduct Description

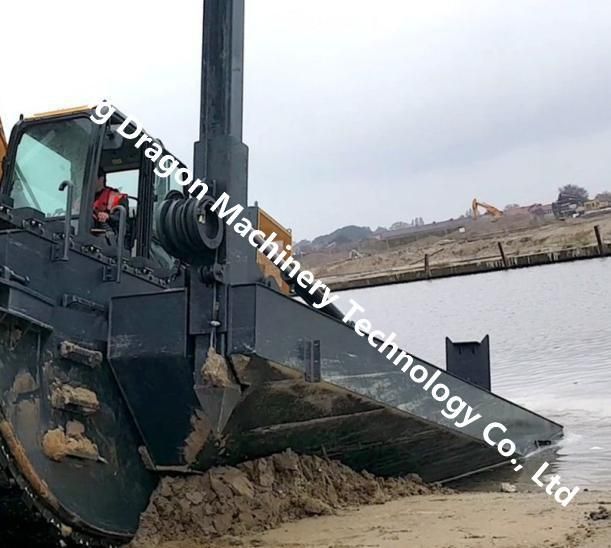

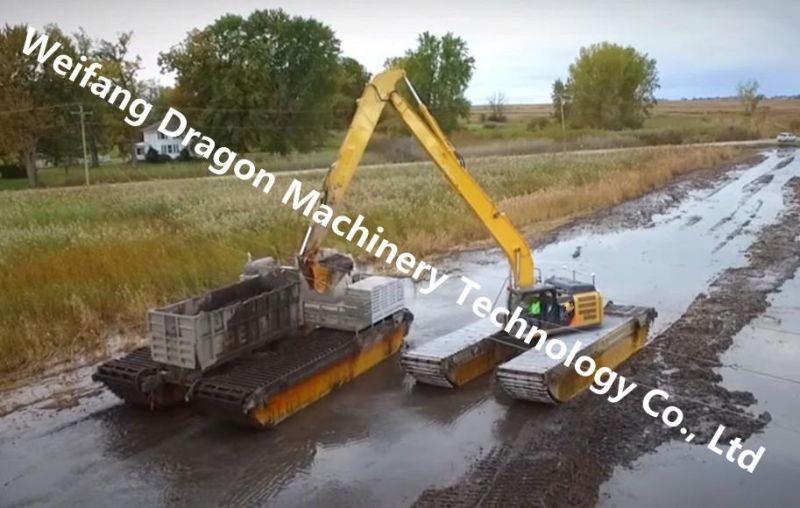

High Quality Competitive Price Factory Direct OEM Large Capacity Amphibious Excavator for Dredging WorkDRAGON amphibious excavator is one multifunctional excavator which is suitable for working in swamp, shallow water and land area. This kind of excavator is widely used for dredging work in rivers and lakes, resources and environment protection in wetlands and coastal areas.

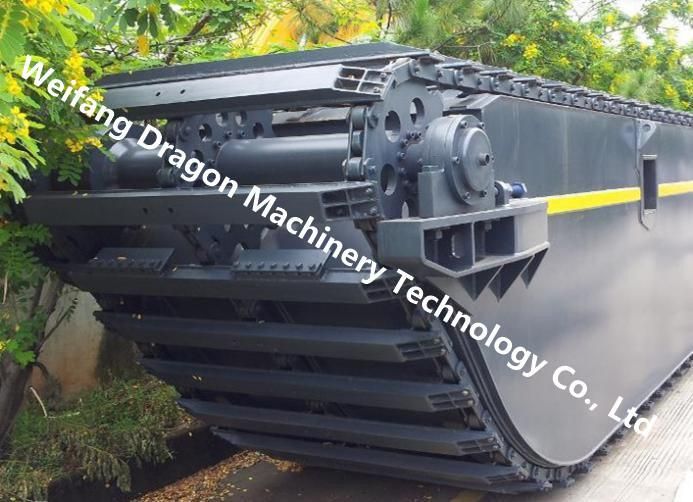

The track shoe and floating pontoon are strengthened specially to enable the amphibious excavator work in hard environment.

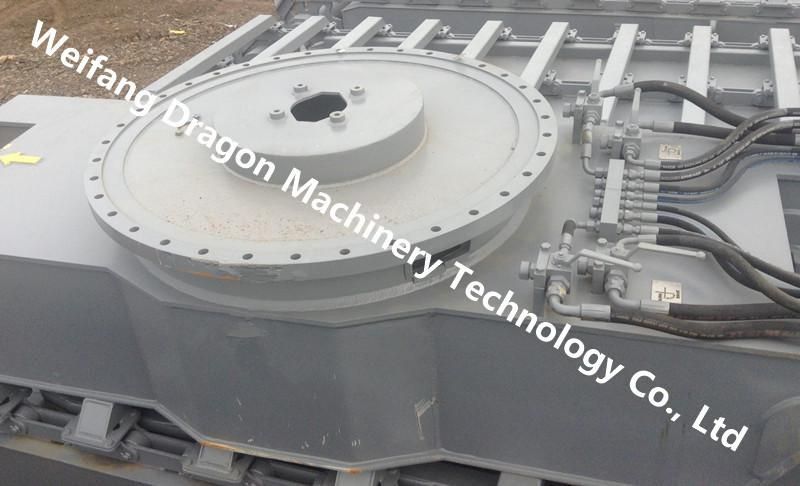

There is one replaceable joint unit between the excavator and floating pontoon which can make it equip with different brands of excavators.
To increase the stability of the amphibious excavator, two spuds can be installed on the floating pontoons.

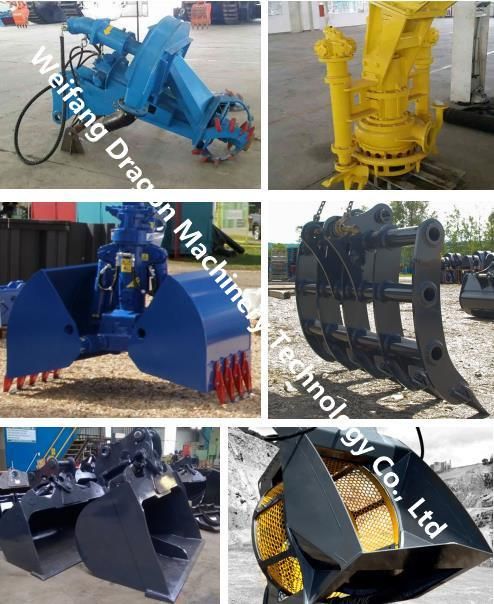

The amphibious excavator can work with differend attachments which enlarges the working range.
Specification
Model | DGAME15 | DGAME20 | DGAME26 | DGAME30 |
Weight | 15000 kg | 20000 kg | 26000 kg | 30000 kg |
Bucket Capacity | 0.25 m3 | 0.4 m3 | 0.9 m3 | 0.9 m3 |
Installed Power | 56.5 kw | 89.3 kw | 114 kw | 114 kw |
Walking Speed | 3.8 km/h | 3.1 km/h | 3.2 km/h | 3.1 km/h |
Rotating Speed | 11 rpm | 11 rpm | 11 rpm | 11 rpm |
Grade Ability | 30 o | 30 o | 30 o | 30 o |
Max Digging Depth | 5870 mm | 7360 mm | 5700 mm | 7360 mm |
Max Digging Radius | 8990 mm | 10810 mm | 9920 mm | 10810 mm |
Pontoon Dimension | 6640 x 1300 x 1420 mm | 7170 x 1490 x 1700 mm | 8080 x 1490 x 1700 mm | 8290x 1800 x 1650 mm |
Why You Choose Dragon Dredger
1. Advanced Design
2. Advanced Equipment and Quality
3. Creative Design and Layout
4. Considerate Service and Training
5. Competitive Price
6. Extended Warranty
7. Performance Guarantee
8. Bring Other Cooperation Opportunities
Our Servicea. Standby our dredger expert Team will follow up all our supplied dredger's working condition in certain time. b. Chinese engineers will stay in Bangladesh all the time and give regular inspection and consultation for the clients. Our service staff will be presented at the dredger location within 24 hours if any emergency service needed on the dredger. c. We can supply detailed training to the staff from the clients. During the manufacturing of the dredger, the client can appoint one engineers to stay in our factory and even work with our engineers. Our engineers will train them from starting of the dredger assembling. d. When the dredger is assembled, our engineers will give training program to more staff from the client's company. If more training program needed, our engineers can give regular maintenance training to the client's staff up to their satisfactory level.
Other Products

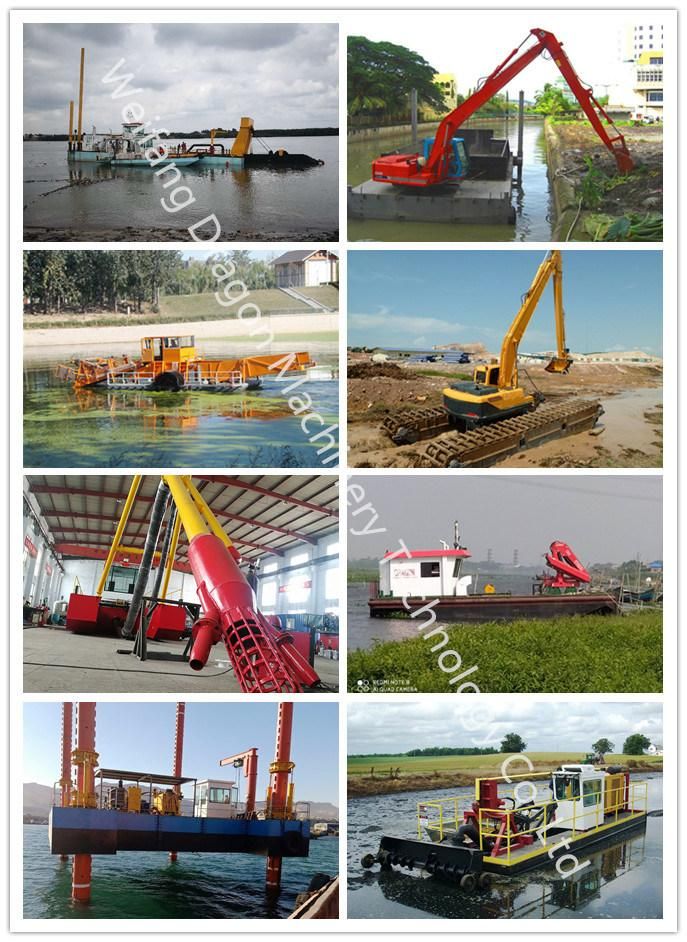

Dragon products scope covers all kinds of dredger, aquqtic weed harvester, amphibious excavator, workboat, backhoe barge, jack-up platform.
