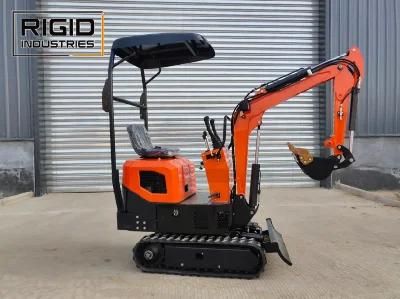

• Model NO.：RE10
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.02
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Nude Packing or Wooden Case Package
• Specification：2, 876*908*1, 495mm
• Origin：China
• HS Code：84295212
• Production Capacity：2, 500,Year

Basic Info.

Model NO. RE10 Drive Type Internal Combustion Drive Bucket Capacity 0.02 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Nude Packing or Wooden Case Package Specification 2, 876*908*1, 495mm Origin China HS Code 84295212 Production Capacity 2, 500/Year

Product Description

This type of excavators are mainly applied to: farming, landscaping, ditching and fertilization in garden, vegetable greenhouse, agricultural transformation, indoor demolition, small earthwork, civil engineering, road recovery, basement and indoor construction, concrete breaking, burying of cable, laying of water supply line, garden cultivation, desilting and others.

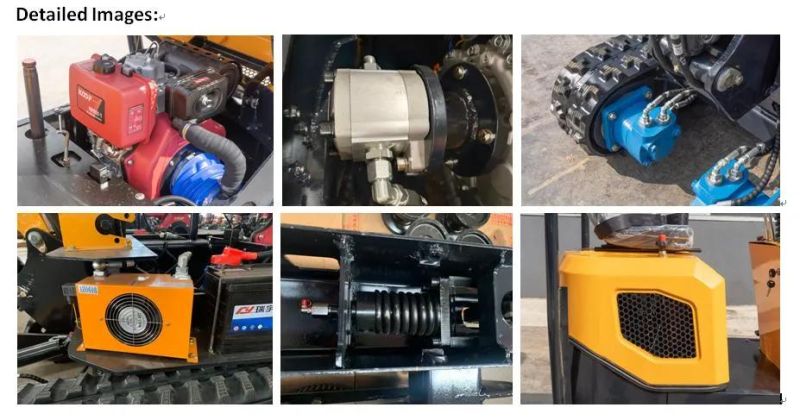

The excavator are equipped with Changchai/KOOP EURO 5/Yanmar/Kubota diesel engines, well-known main pump and rotary motor and traveling motor, featuring comprehensive guarantee, durability and flexibility.

Features:

• Small and flexible, easy operate for narrow places.
• Parts are made out of stainless steel or spraying plastics technology for lasting longer service life.
• 360°rotation, easy learning and operating.
• Light weight and transport easily with good performance.

Model	RE10 (Euro 5)
Operating weight (ton)	0.85
Bucket capacity (cbm)	0.022
Engine model	KOOP KD192F-1
Rated power (kw/r/min)	7.0/3,000
Hydraulic pump model	China Brand
Max.flow (L/min)	18
Working pressure (Mpa)	16
Control valve model	China Brand
Swing motor model	Chinese Sanyang
Travel motor model	Chinese Sanyang
Fuel tank capacity (L)	7
Hydraulic oil tank capacity (L)	14.5
Travel speed (km/h)	1.9
Swing speed (r/min)	13
Max. climbing degree (%)	58
Arm digging force	4.6
Bucket digging force (KN)	7.2
Average grounding pressure (Kpa)	20
A-Overall length (mm)	2,876
B-Overall width (mm)	840/908
C-Overall height (to top of boom)(mm)	1,040
D-Overall height (to top of cab)(mm)	1,495
E-Counterweight ground clearance(mm)	385
F-Min. ground clearance (mm)	132
G-Tail swing radius (mm)	800
H-Track Ground Length (mm)	900
J-Track length (mm)	1,233
K-Track gauge (mm)	670
L-Track width (mm)	840
M-Track shoe width (mm)	180
N-Turntable width (mm)	760

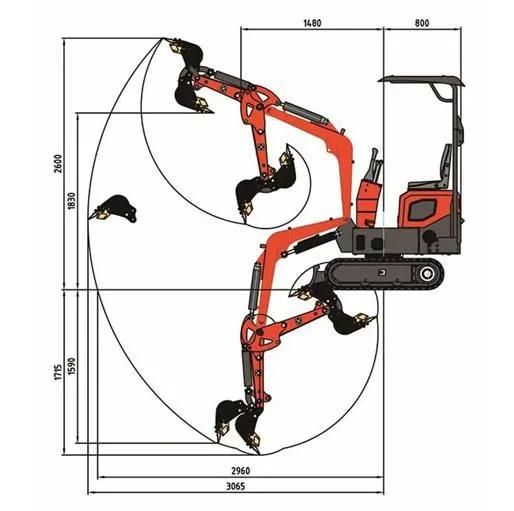

O-Max. digging height (mm)	2,550
P-Max. dumping height (mm)	1,687
Q-Max. digging height (mm)	1,787
R-Max. vertical wall digging depth (mm)	1,626
T-Max. digging reach (mm)	3,077
U-Max. digging reach at ground level (mm)	2,992
V-Min. swing radius (mm)	1,483
X-Distance between center of rotation and tail length (mm)	795
Y-Track shoe thickness (mm)	-
Z-Height of counterweight (mm)	366
A1-Ground length (in transportion)(mm)	2,650
Arm length (mm)	800
Boom length (mm)	1,480

About Us:

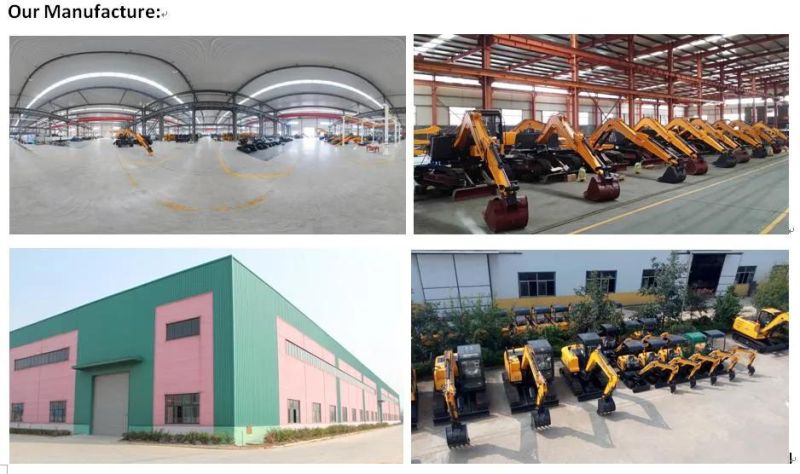

RIGID INDUSTRIES CO., LTD is a company who has over 10 years experience in construction machinery industry. We started doing machinery export in 2008. We are located in Dalian, which is a very well-known coastal and harbour city in China.

In machinery industry, We have very much learned about the strengths and weaknesses from different types of Chinese construction machines such as wheel loaders, excavators, skid loaders, forklifts, backhoe loaders, graders as well as related attachments etc. We know the differences of standards and requirements from different markets. Now our products can be found that working and serving in more than 20 countries in the world.

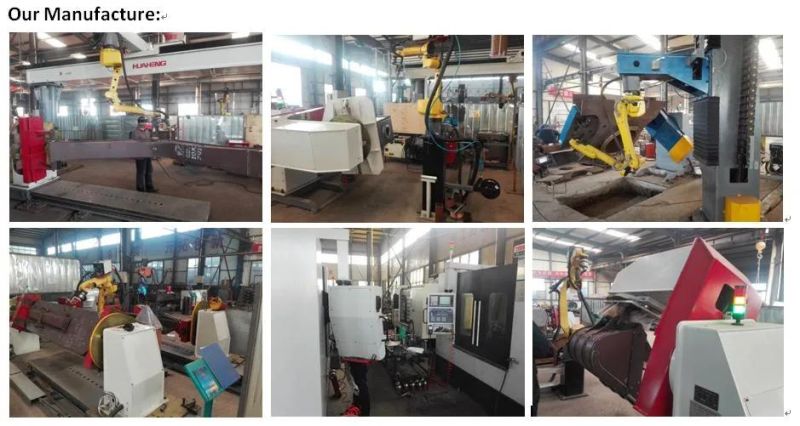

Products' research&development is always the most important factor in RIGID's success and we are specializing in manufacturing and exporting. RIGID INDUSTRIES knows the international standards and requirements of machines, and most of our products have also passed CE, SGS, TUV certificates. Also, our target markets are mainly focus on developed countries such as Australia, New Zealand, North America and Europe.

Moreover, providing excellent after sale services is another significant factor to lead our business successfully and also it is always our first principle in RIGID's culture. We will help our customers to buy and store spare parts in local and also we will ship parts for free for our customers if necessary when some parts are broken during the warranty.

We hope our professional experiences and skills could make our customers' businesses great, prosperous and long last. We look forward to establishing long-term cooperations with our customers in the future.

FAQ:
Q1. What is the leading time of RE10 mini excavator?
The leading time is about 20 days.

Q2. What is the payment term will you accept?
30% deposit, 70%TT balance payment before the shipping..

Q3. What is the warranty for the RE10 mini excavator?
6 months.

Q4. What is the MOQ for RE10 excavator?
MOQ: 1 unit

Q5. What after sale services can you provide?
We can ship some urgent parts to our customers for free through DHL or TNT if they are during the warranty.
They generally take 5-7 working days to our customers' hands.
If some parts are too big or too heavy, we will ship them with machines in the next order for free.

Q6. Can you do OEM for overseas dealers?
Yes, we also can do paint customization for our dealers, but it is only for a 40ft container's order.

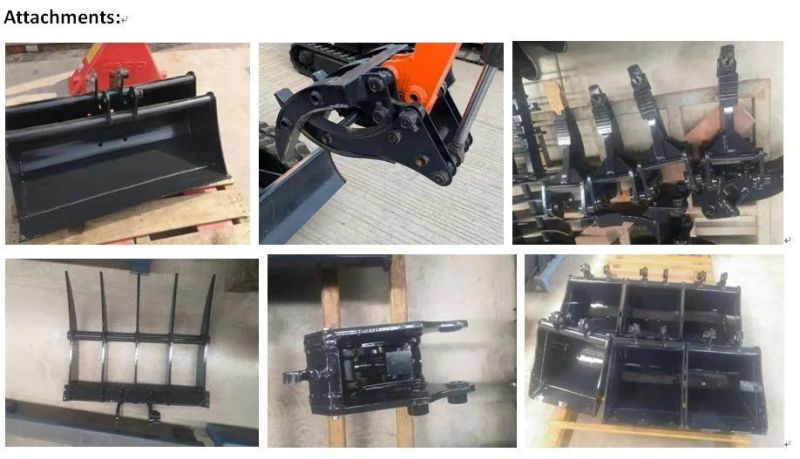

We also can provide other types of machines such as forklifts, graders, backhoe loaders, rollers, bulldozers, dumpers, trailers, tractors and related attachments.

If you have any questions that I can answer or need anything of our machines, we are very happy to do so.
