• Model NO.：LG6016
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Medium-Sized
• Certification：CE
• Condition：New
• Self Weight：1600kg

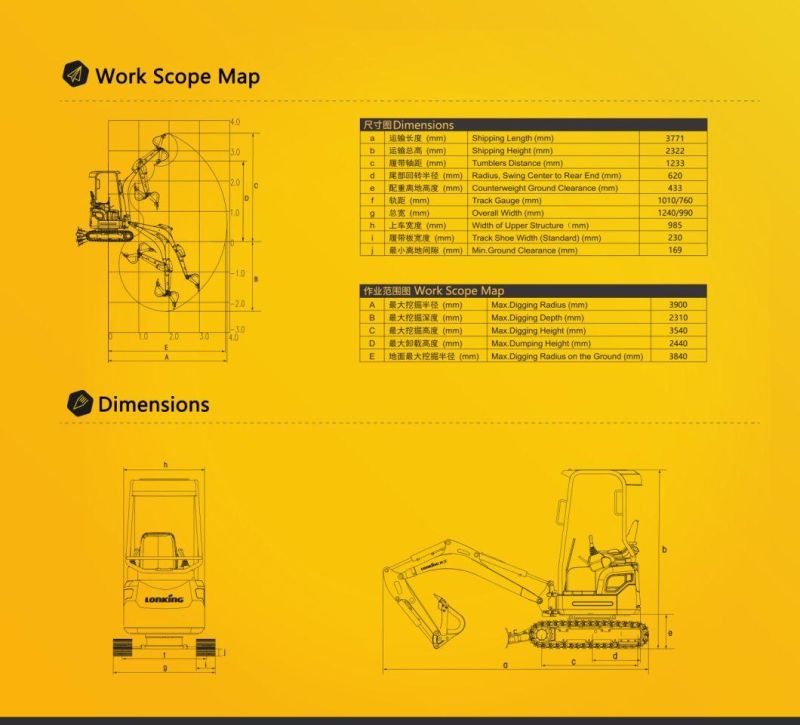

• Shipping Length：3771mm
• Shipping Height：2322mm
• Tumbers Distance：1233mm
• Radius Swing Center to Rear End：620mm
• Counterweight Ground Clearance：433mm
• Track Gauge：1010,760mm
• Overall Width：1240,990mm
• Width of Upper Structure：985mm
• Track Shoe Width(Standard)：230mm
• Min. Ground Clearance：169mm
• Origin：China
• HS Code：8429521200

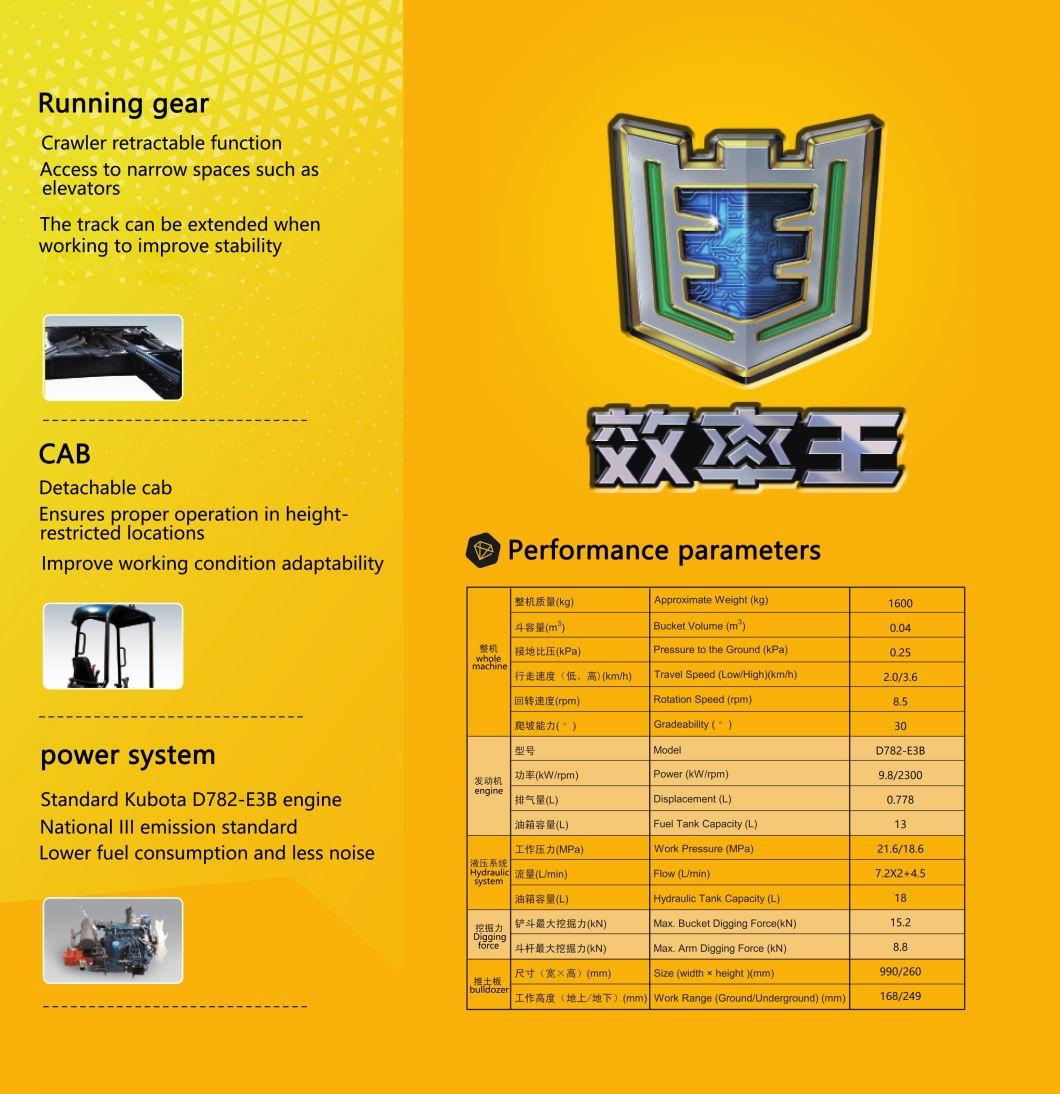

Overview Product DescriptionWhole machineApproximate Weight (kg)1600Bucket Volume (m')0.04Pressure to the Ground (kPa)0.25Travel Speed (Low/High)(km/h)2.0/3.6Rotation Speed (rpm)8.5Gradeability(' )30EngineModelD782-E3BPower (kW/rpm)9.8/2300Displacement (L)0.778Fuel Tank Capacity (L)13Hydraulic systemWork Pressure (MPa)21.6/18.6Flow (L/min)7.2*2+4.5Hydraulic Tank Capacity (L)18Digging forceMax. Bucket Digging Force(kN)15.2Max. Arm Digging Force (kN)8.8BulldozerSize(width*height)(mm)990/260Work Range(Ground/Underground)(mm)168/249  Detailed Photos

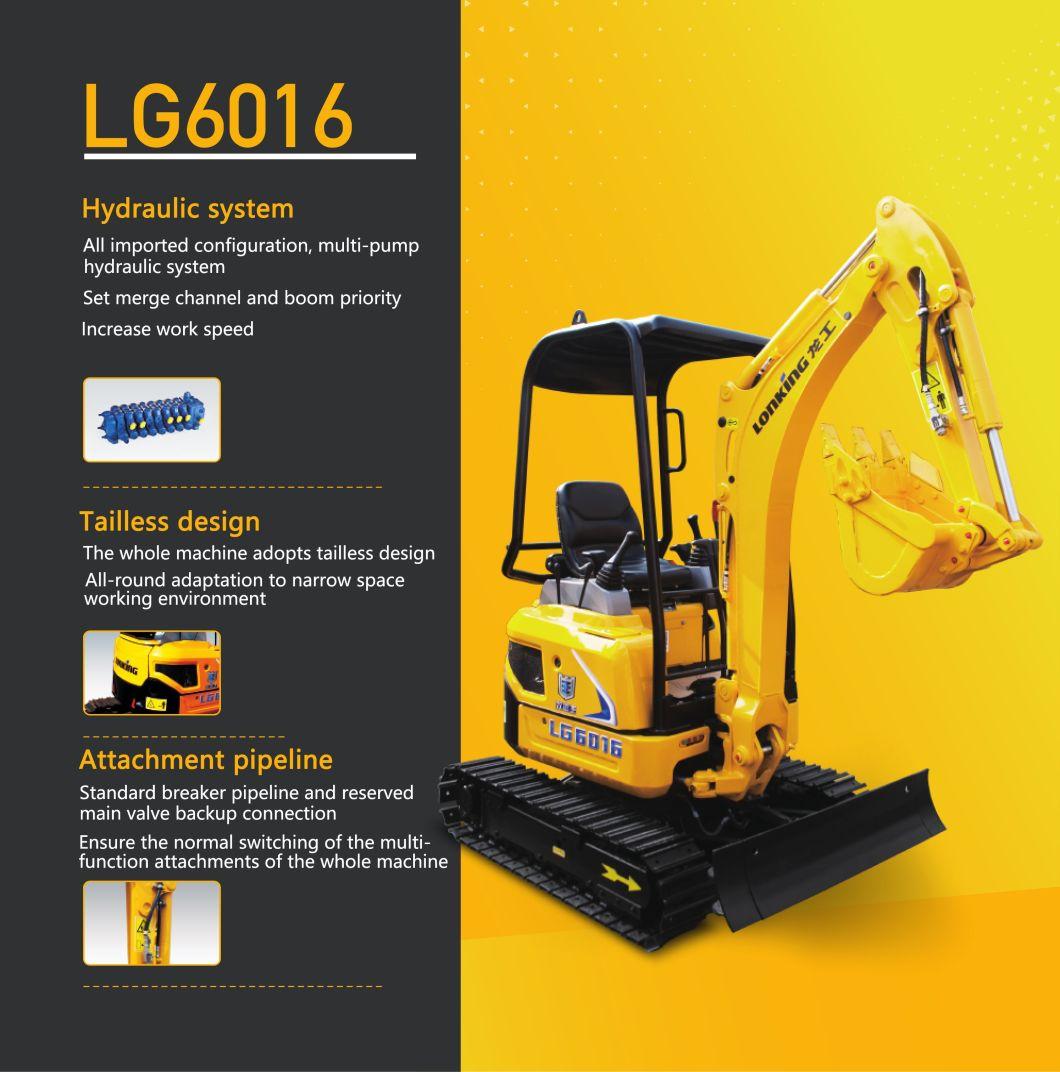

Product advantageAll-round work structureRealize diversified operation of excavators, cope with various working environments, quickly and effectively, and save timeIntelligent man-machine dialogueSelfdeveloped MCSS electronic control system,
people work closely with the machine to maintain the best state and efficiency of the machineEngine Management Specialist
 Achieve precise power matching, more powerful, more energy -saving, and improve work efficiency360· safe cabinThe left and right column reinforced cab greatly improves the strength and rigidity of the cab, forming a solid 360' safety protectionRemote command centerThe operating status of the machine can be remotely mastered through the Internet or mobile phone, and management and support can be carried out without on-site, which saves time and space.
 Shipping By Sea
