• Model NO.：LT214
• Travel Speed：40cm,s
• Centrifugal Force：13.5KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2008
• Condition：New
• Opeartion Weight：14000kg
• Vibration Frequency(L/H)：28,35Hz
• Engine：Cummins 6bt5.9
• Engine Power：97kw
• Drum Diameter：1523mm
• Drum Width：2130mm
• Over All Dimension：5820 X2278X3100 mm
• Compaction Width：2100mm
• Max Travling Speed：10.4km,H
• Drive Model：Mechanical Drive
• Transport Package：Nude
• Specification：CE,CCC,ISO,GHOST,SGS
• Trademark：LUTONG
• Origin：Luoyang, China
• HS Code：84294019
• Production Capacity：300 Units,Month

Basic Info.

Model NO. LT214 Travel Speed 40cm/s Centrifugal Force 13.5KN Certification EPA, CS, CE, RoHS, ISO 9001:2008 Condition New Opeartion Weight 14000kg Vibration Frequency(L/H) 28/35Hz Engine Cummins 6bt5.9 Engine Power 97kw Drum Diameter 1523mm Drum Width 2130mm Over All Dimension 5820 X2278X3100 mm Compaction Width 2100mm Max Travling Speed 10.4km/H Drive Model Mechanical Drive Transport Package Nude Specification CE/CCC/ISO/GHOST/SGS Trademark LUTONG Origin Luoyang, China HS Code 84294019 Production Capacity 300 Units/Month

Product Description

Features

LT214 Mechnical  vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. this machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can be a good effect compaction in cohesive material, There fore the machine ideal equipment for expressway, mining road, embankment, seaport and industrial sites.


1)Equipped with reliable Chinese Cummins 6BT5.9 diesel engine,huge power
2) Front Drum Drive
3)Front Drum have scraper
4)double amplitude, hydraulic vibration and steering with optimal price ratio and reliable performance
5)Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability.
6)Spacious and comfortable cab mounted on top quality rubber damping elements.

Technical Paramters


MODEL		LT214
Operating mass	Kg	14000
Static linear load	N/cm	342
Vibrating amplitude	Mm	1.8/0.9
Vibrating frequency	Hz	29/35
Centrifugal force	KN	290/160
Travel speed	Km/h	12
Grade ability	%	30
Turning radius	mm	6500
Overall dimension	mm	5860X2280X3020
Vibration round width	mm	2100
Wheelbase	mm	3160
Ground clearance	mm	472
Diesel power	kW	110
Diesel model		6BT5.9

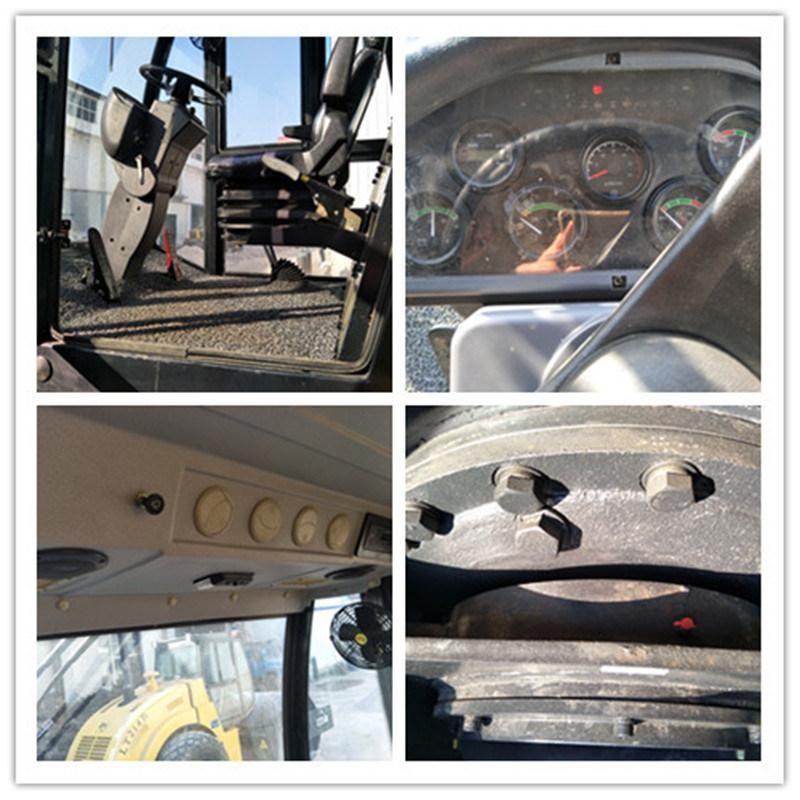

 Deatailed Photo of the Roller
