Concrete Mixer Cement Mortar Mixing Spraying Machine Concrete Pump
Shaanxi Zhongtuo Mine Equipment Co., Ltd.- Type:Concrete Mixing and Spraying
- Shotcrete Type:Wet
- Machining Process:Electric Drive Mixing and Spraying
- Structure:Spiral Type
- Productivity:75m²,h
- Feeding Height:1400mm
Base Info
- Model NO.:GLP-3
- Vibrating Amplitude:2.6mm
- Certification:ISO9001: 2000, CE
- Condition:New
- Color:Orange
- Motor Power:7.5kw
- Flow Rate:3 Cubic Meters
- Maximum Pressure:2MPa
- Through The Diameter mm:Less Than 4
- Horizontal Conveying Distance:20
- Vertical Conveying Distance:18
- Hopper Volume:220L

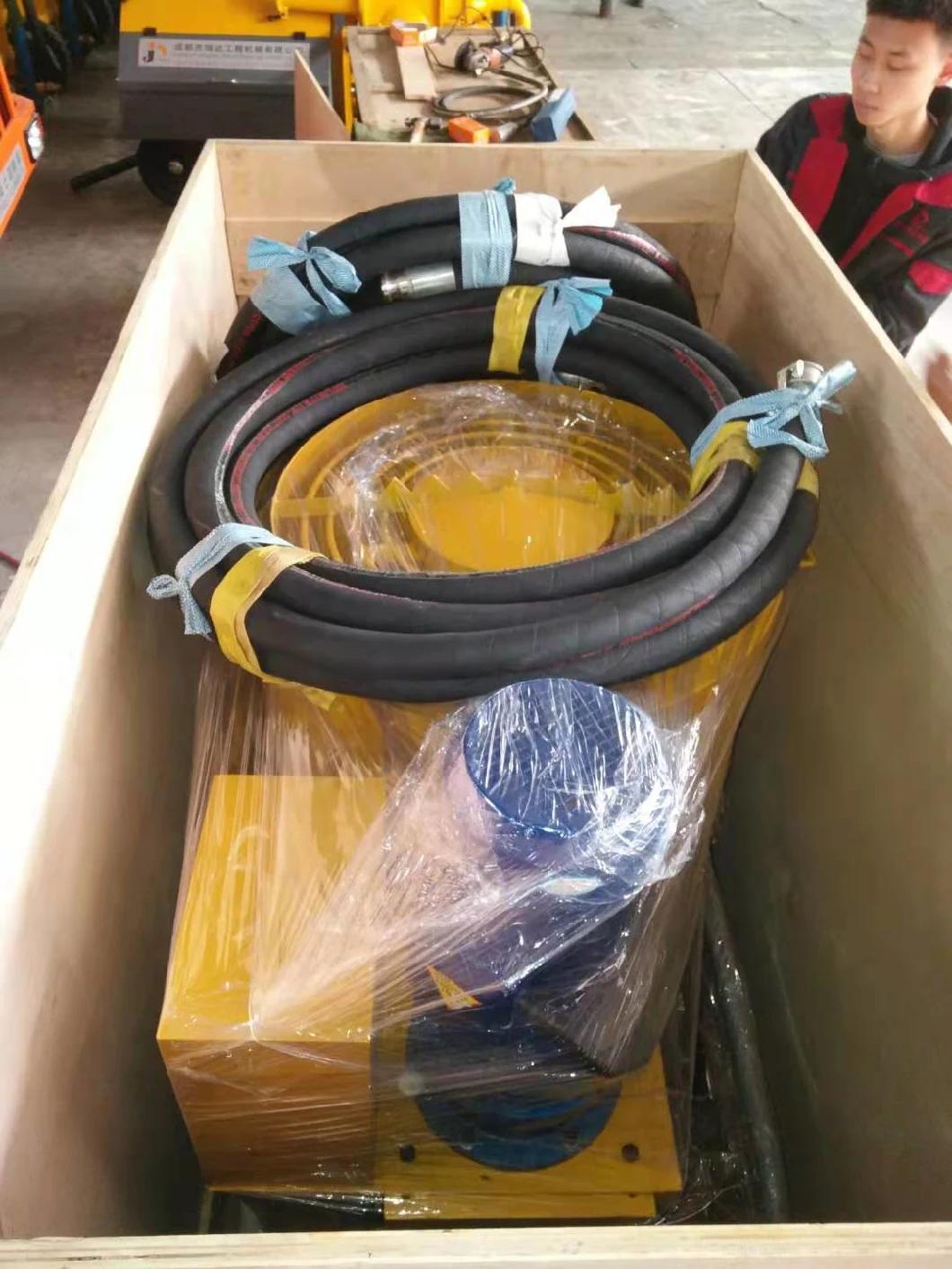

- Transport Package:Wooden Box
- Specification:1950*960*1400
- Trademark:ZHONGTUO
- Origin:China
- HS Code:8424300000
- Production Capacity:50piecces,Month
Description
Basic Info.
Model NO. GLP-3 Vibrating Amplitude 2.6mm Certification ISO9001: 2000, CE Condition New Color Orange Motor Power 7.5kw Flow Rate 3 Cubic Meters Maximum Pressure 2MPa Through The Diameter mm Less Than 4 Horizontal Conveying Distance 20 Vertical Conveying Distance 18 Hopper Volume 220L Transport Package Wooden Box Specification 1950*960*1400 Trademark ZHONGTUO Origin China HS Code 8424300000 Production Capacity 50piecces/MonthProduct Description

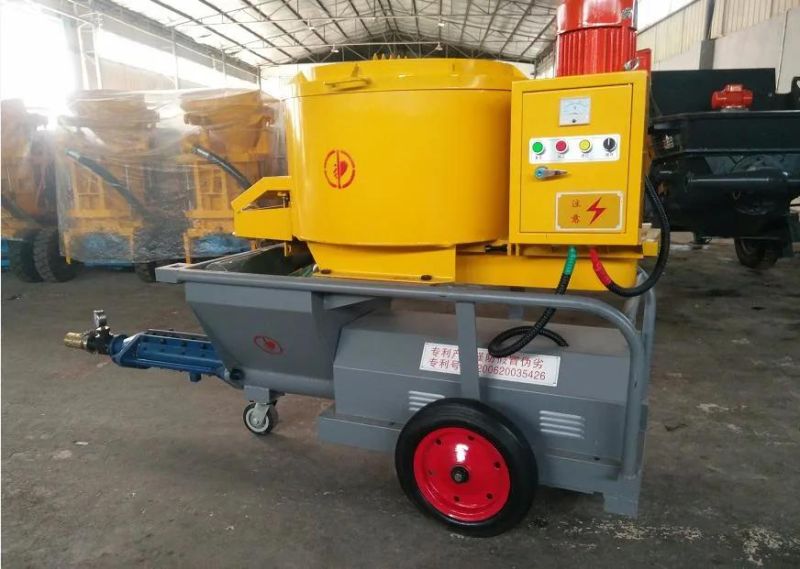

Description of Cement mortar spraying machine|automatic|wet
Structural principle
It consists of a mixing mechanism, a pressurized conveying mechanism and an electrical system. The electric mechanism of the pressurized conveying mechanism is composed of an electric motor, a speed reducer, a conveying screw, a pressurized stator assembly, a pressure measuring joint, a grouting pipe etc.
Parameters of cement spraying machine:
Power KW | 7.5KW/3KW |
Flow rate M³/H | 3 |
Maximum pressure MPa | 2 |
Horizontal Conveying distance m | 20 |
Vertical Conveying distance m | 18 |
Through the diameter mm | <4 |
Hopper volume L | 220 |
Weight kg | 500 |
Dimensions mm | 1500*600*1300 |

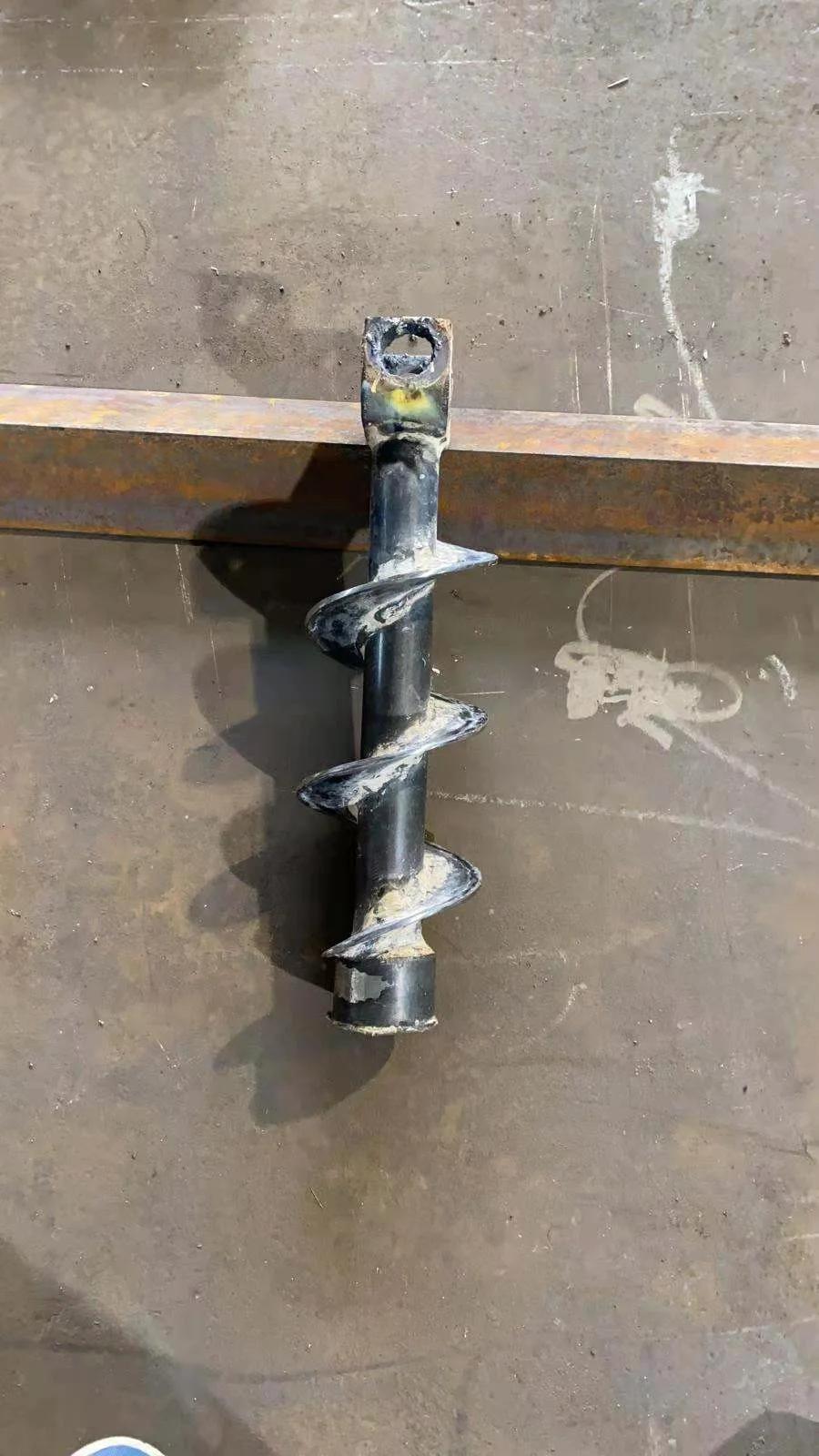

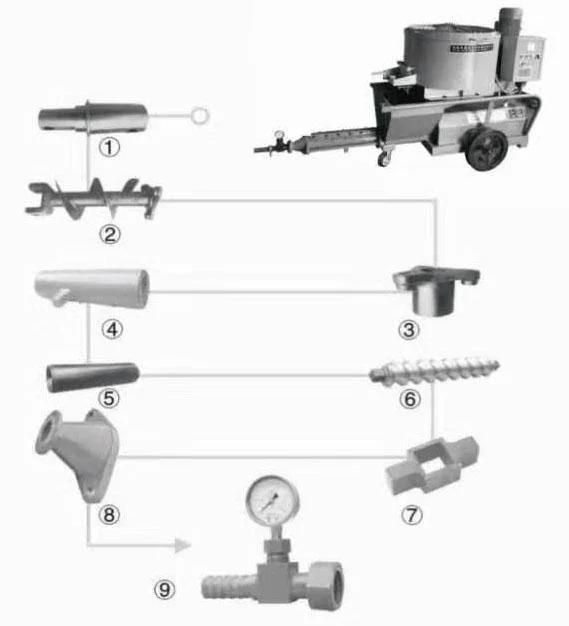

Main assemble:

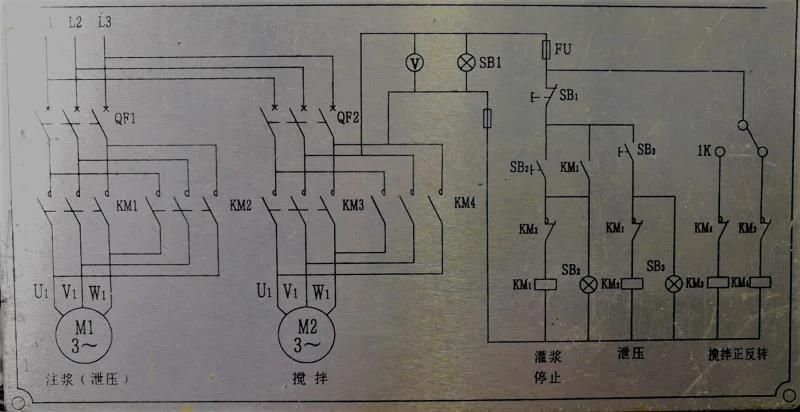

Working circuit diagram:
FAQ:
Q:This is the first time I use this kind of machine, is it easy to operate?
A:There are English manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Q:If machine have any problem after I receive it, how can I do?
A:Free parts send to you in machine warranty period if machine have any problem.
Q:What is MOQ?
A:The minimum order is 1 set machine, if you order more one time, the price will be better.
10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEER
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO,SGS certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it,
We can give you a best solution within 24 hours
10 fast delivery, save your time.
Welcome to your inquiry,we can customize for your every inquiry,thanks
