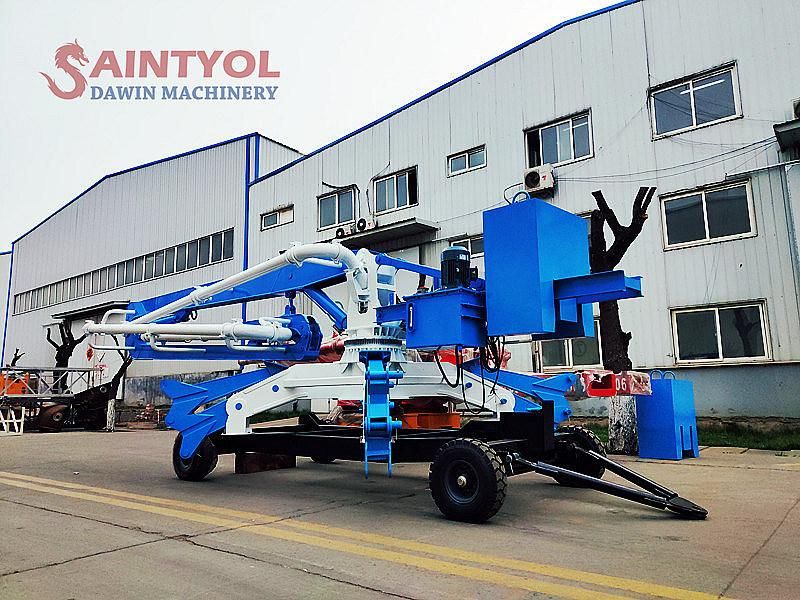

Safework 13m 15m 17m Mobile Spider Hydraulic Concrete Placing Boom Concrete Placer
Qingdao Saintyol Dawin Machinery Co., Ltd.- After-sales Service：24 Hous Online
- Warranty：1 Year
- Type：Concrete Pump
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Cylinder Type
Base Info
- Model NO.：HGY13 15 17
- Productivity：240m²,h
- Feeding Height：0
- Vibrating Amplitude：0
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：as Your Option
- Placing Shape：3 Sections , R Shape , Z Shape,4 Sections M Shape
- Motor：4kw 5.5kw
- Brand：Saintyol Dawin
- Series：13m 15m 17m 18m 23m
- Key Word：Concrete Placing Boom
- Control：Proportional Remote , Wire Control
- Wheels：4 Wheels Trailer
- Outrigger：Spider
- Boom Arms：Detachable
- Valve：Proportional
- Transport Package：Standard Exporting Package
- Specification：CE ISO
- Trademark：SAINTYOL DAWIN
- Origin：Qingdao Shandong
- HS Code：84134000
- Production Capacity：2000 Sets,Year
Description
Weight

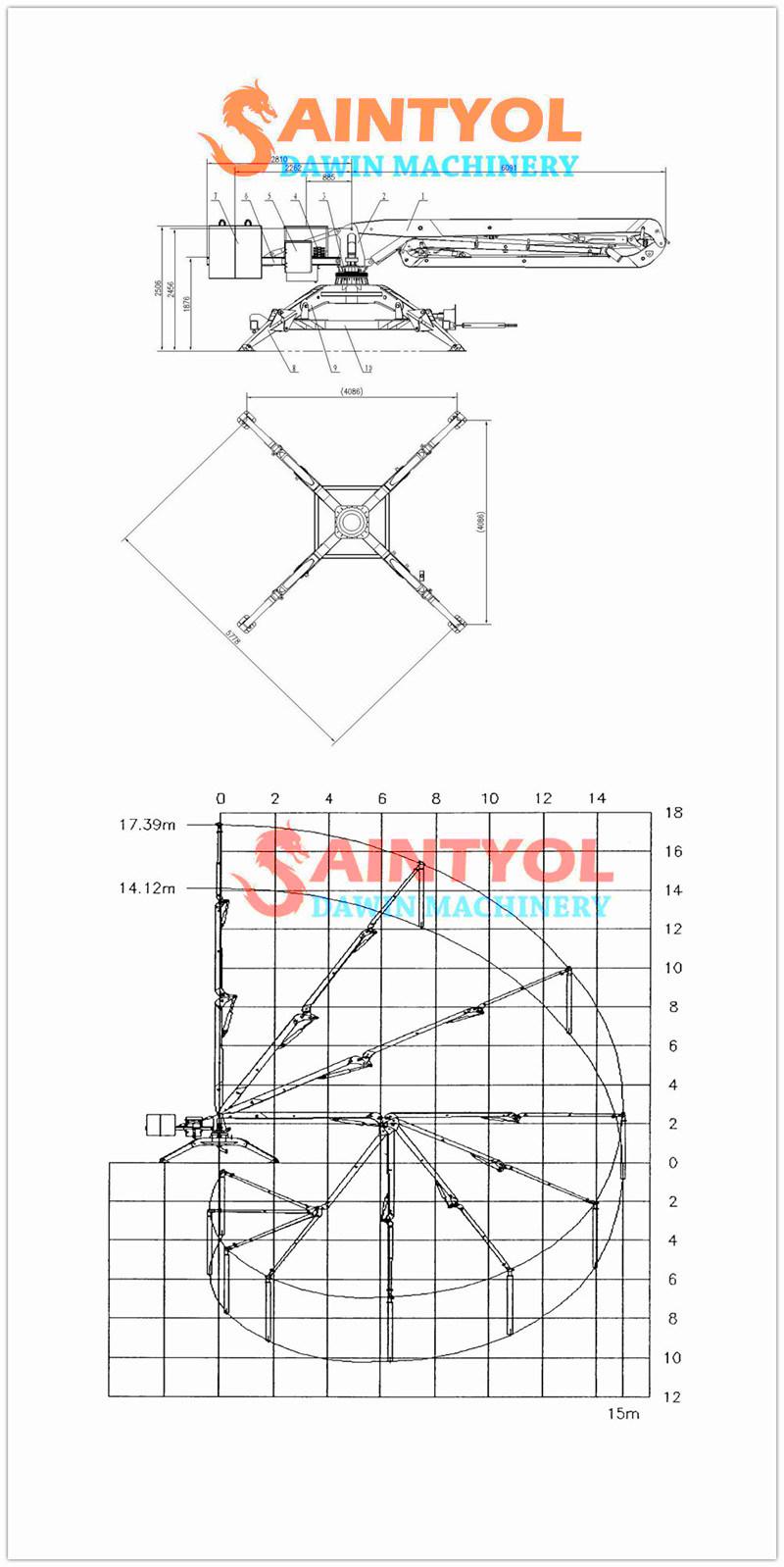

| PLACING RADIUS | 15000mm |
| PLACING HEIGHT | 17390mm |
| PLACING DEPTH | 10300mm |
| BOOM ARM ELEVATION TRAVEL | 0°~90° |
| SLEWING RANGE | 360° |
| HYDRAULIC SYSTEM POWER | 4kW |
| WORKING PRESSURE | 20MPa |
| SLEWING SPEED | 0.2~0.3r/min |
| CONCRETE PIPE DIAMETER | φ125×4 |
| RUBBER HOSE | 3m |
| OUTRIGGER SPAN | 4000×4000mm |
| TOTAL WEIGHT | 4500kg |
| COUNTERWEIGHT | 2×1100kg |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE | 67kN |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION | 45kN |
| OVERALL DIMENSION | 8900×4000×2585mm |
| CONCRETE PIPE DIAMETER | Φ125mm |
| PLACING RADIUS | 17m |
| BOOM ARM ELEVATION TRAVEL | -4°~90° |
| SLEWING RANGE | 360° |
| RUBBER HOSE | 3m |
| HYDRAULIC SYSTEM POWER | 5.5KW |
| WORKING PRESSURE | 20Mpa |
| SLEWING SPEED | 0.2~0.3r/min |
| TOTAL WEIGHT | 6200 |
| COUNTERWEIGHT | 2200kg |
| TOTAL HEIGHT | 3400mm |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE | 104kN |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION | 69.6kN |
Saintyol DAWIN Machinery Concrete Placing Boom Main Parts:
Package & Shipping:

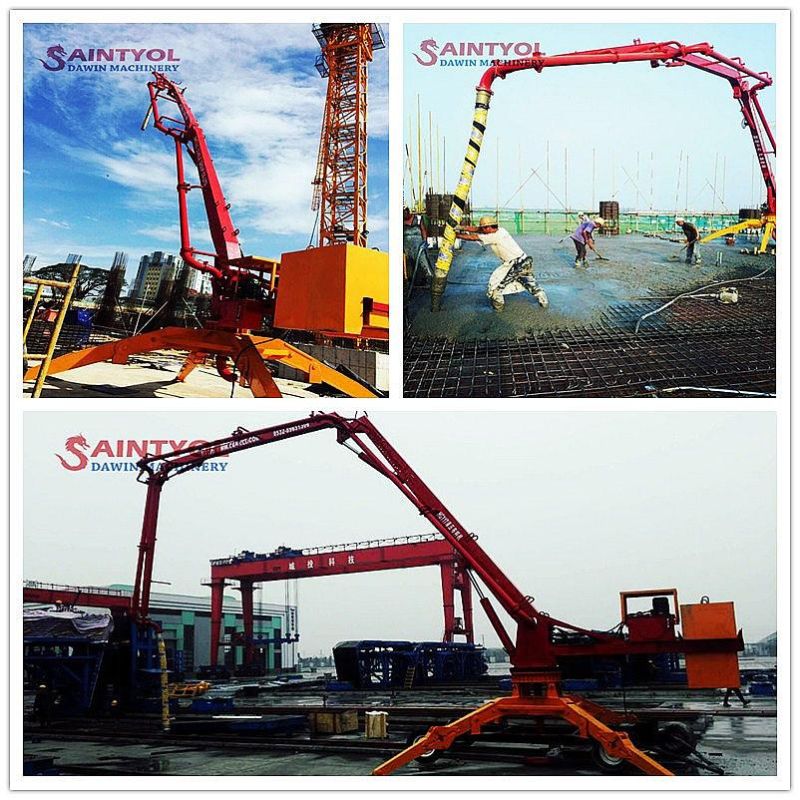

Jobsite Performance:

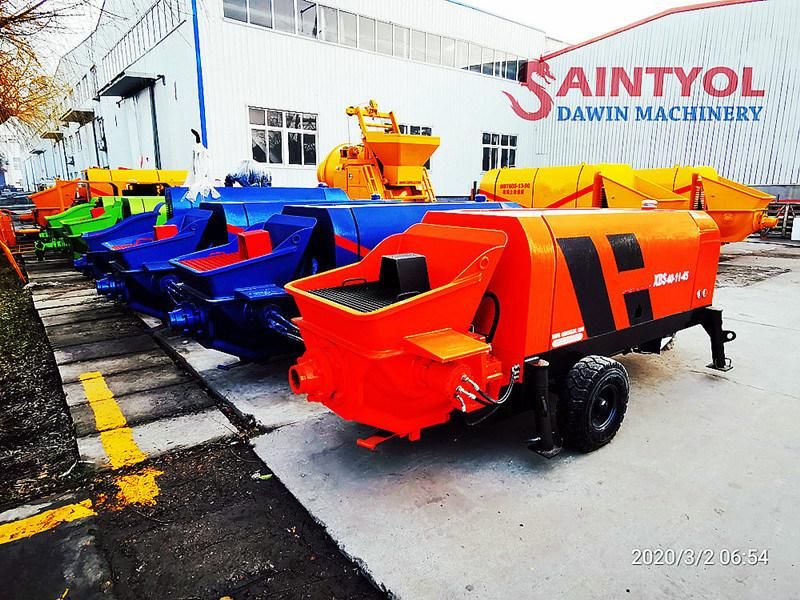

Related Concrete Pump & Shotcrete Pump Spraying Machines:
Saintyol DAWIN Machinery Hydraulic Concrete Placing Boom FAQ.
Q: How many kinds of concrete placing booms you have?
A: We have below series.
1: 12/15/18m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17/19/21/23m Mobile Hydraulic Spider Concrete Placing Booms
3: 29/32m/33m/36m Floor Climbing Type and Elevator Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: Do you have concrete placing booms with boom length over 36m?
A: Yes, boom length over 36m needs to be customized by order.
Q: Is there any proportional multiway valve for concrete placing boom?
A: Proportional mutiway valve is optional for more smooth operation like pump trucks.
Q: Our tower crane is not big enough to lift tubular column for installation, how can we do?
A: We can make the tubular column separate for light weight such as 5m, 6m 7m, fast and easy installation.
