• Model NO.：YX656 Premium
• Type：Large Loader
• Engine：Weichai or Shangchai
• Power：162 Kw
• Bucket Capacity：2.4-4.5 M3
• Transport Package：1*40 Hq Nude Packed
• Specification：8260× 3035× 3480
• Trademark：ENSIGN
• Origin：Shandong Province, China
• HS Code：84295100
• Production Capacity：20000 Units,Year

Bucket capacitym32.4~4.5(standard bucket 2.8)Total cycle time(lift, dump& lower)s<11Rated loadkg5000Dump height/Dump anglemm/ °3215/48Overall operating weightkg17420Dump distance/Dump anglemm/ °1180/48Max. traction forcekN>160Min. ground clearancemm445Max. breakout forcekN>184Wheel basemm3200Grade ability°30Wheel treadmm2250Min. turning radius(outer side of the bucket)mm6750Departure angle°30Min. turning radius(outer side of the tire)mm6040Steering angle(left & right)°38Overall dimension (standard configuration) mm8260×3035×3480

Core componentsEngineDrive SystemModelWei chai WD10G220E21Torque converter typeSingle stage, 2 phase, 4 elements Typevertical, in-line, direct injection, water cooling,
four-stroke, turbo chargedTransmission typeplanetary power shiftRated power162 kWGears2 forward,1 reverseSteering SystemMain drive typespiral bevel gear, first reductionTypeload sensing hydraulicHub reduction typeplanetary, first reductionOil pump typegear pumpDrive axledry type axleOil pump displacement80 ccrBraking System Working pressure16 MpaService brakeAir-over-oil caliper discWorking Device Hydraulic SystemParking brake
(emergency  brake)manual pneumatic caliper discHydraulic system pressure17.5 MpaTire Control typejoystickSpecification 23.5-25Oil pump typegear pumpTread patterngeneral patternOIl CapacityFuel tank300 LHydraulic oil 176 LEngine oil 20 LGear oil (per gear)11 LTransmission oil 59 LAntifreeze liquid45 L

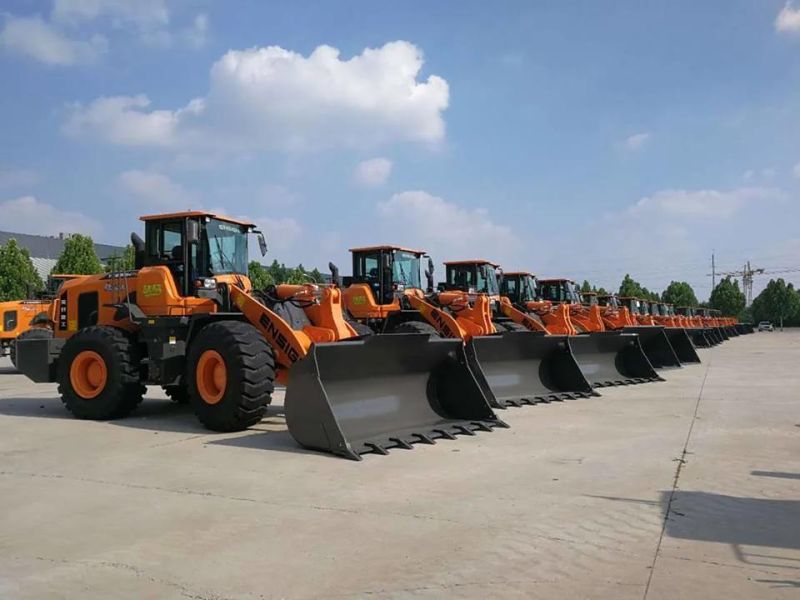

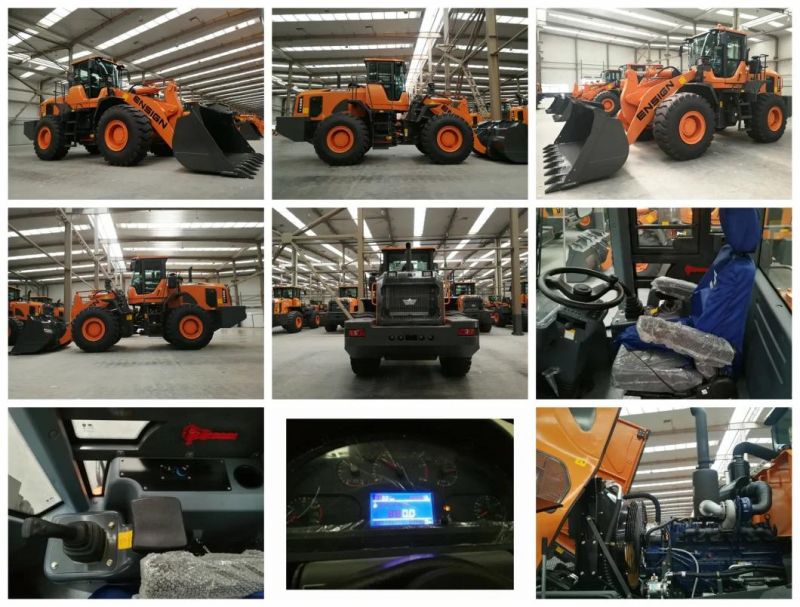

Details of YX656 wheel loader:



FAQ:

Why choose us?
1). Ensign Heavy Industires Co.,Ltd is a big  manufacturer which established in 2011, Belongs to Ensign Holding Group.
2). Focus on providing high quality product to customers.
3). Competetive price for same configuration.
4). Long term after-sales service. ( 24 months or 2000 hours warranty, whichever comes first)
5). Various of supports for potential partners like techinical supports, exhibition subsidy, free gifts and training etc.

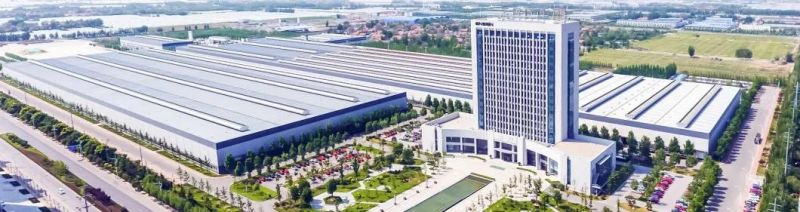

About ENSIGN:

Ensign heavy Industries, invested and established by ENSIGN Holding Group in 2011, headquartered in Weifang city of Shandong Province, is a large-scale machinery manufacturer. So far, Ensign has established three main business including construction machinery, agricultural equipment, lubricating oil for machinery.

Ensign Heavy Industries has most advanced technological R&D center and fully functional production & manufacture center in the country. Ensign Heavy Industries has passed ISO9001 quality management system certification and self-operation Export and Import Right.

Bearing in mind its corporate spirit of "Strives Constantly for Self-improvement, Commitment to Excellence" and the strategic layout of globalization, Ensign will accelerate the pace of international development and make full efforts to build the leading brand of off-road machinery industry in China and around the world by constantly improving our technology innovation, introducing high-tech talents and improving independent R&D ability.

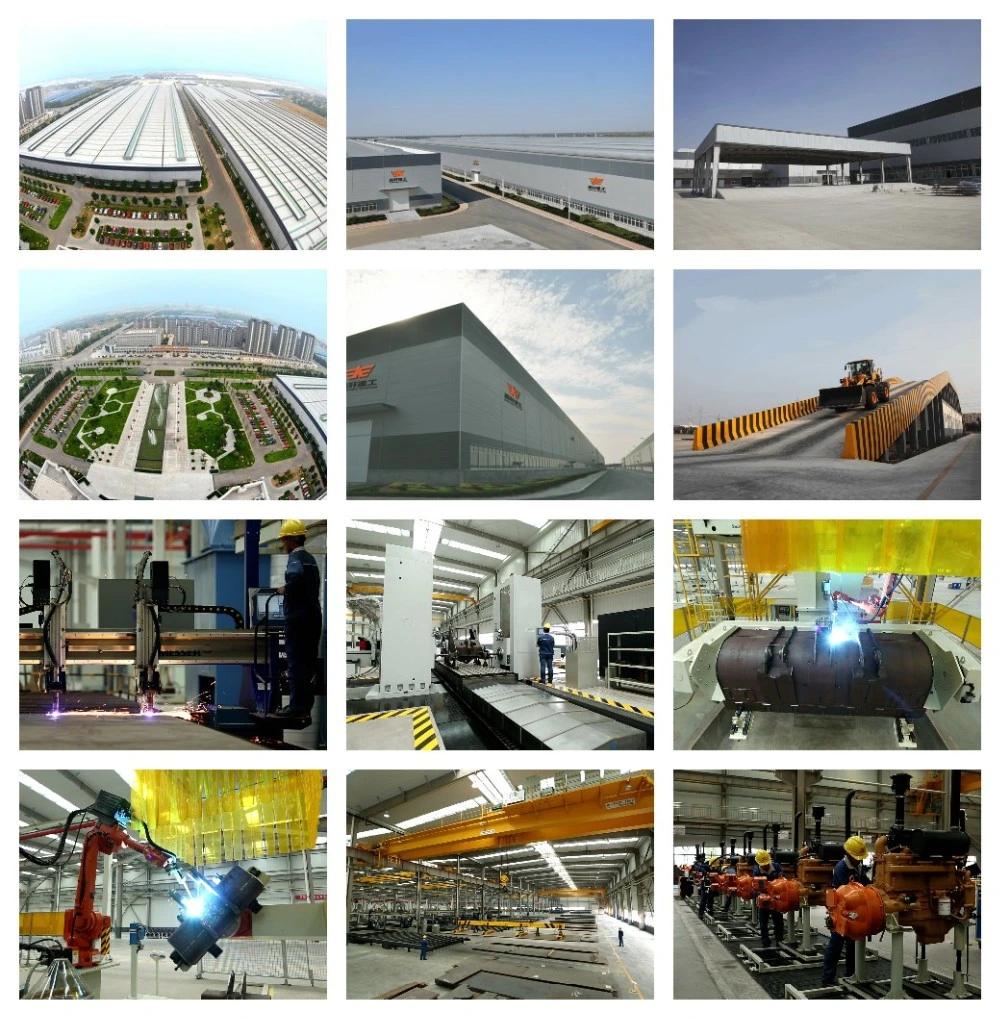

We have the longest wheel loader workshop in China and comprehensive facilities.  The testing ground is also biggest in China. By the advanced processing technology and strict quality control system, we can ensure each product delivered to the customers is with the best quality.

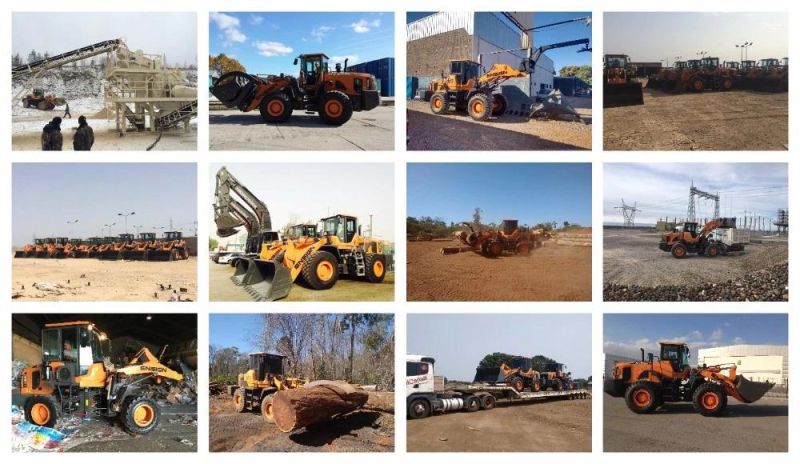

ENSIGN in the world:

ENSIGN wheel loaders have been exported to more than 30 overseas countries like USA, Australia, Russia, Brazil, Argentina, Saudi Arabia, Iraq, Indonesia, The Philippines, Sudan, Ghana etc. Ensign has built a win-win relationship with dealers in these markets. Thanks to the both efforts, Ensign is becoming more and more popullor in the world.



Ensign in Exhibition:





Our Service:


Ready stock:






Supports:

1). Delivery: 30 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF or CFR your destination for your choice
3). Payment terms for first order:
-----T/T 30% down payment and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have Euler Hermes insurance for our VIP clients. We are looking for partnership for long-term business
