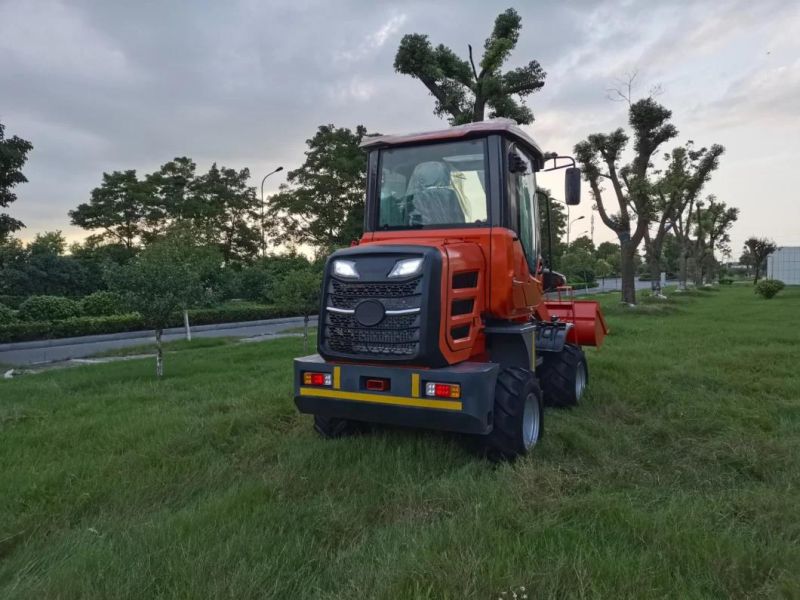

Small Mini Compact Wheel Loader
Yancheng Jiayang Machinery Co., Ltd.- After-sales Service:3 Years
- Warranty:3 Years
- Certification:CE
- Condition:New
- Rated Load:1-3t
- Transmission:Hydraulic
Base Info
- Model NO.:LX1000
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
- Type:Small Loader

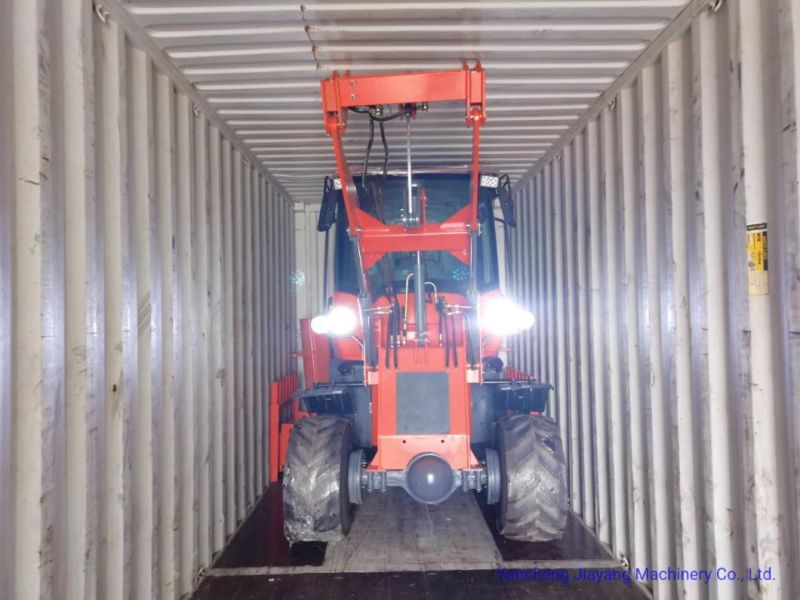

- Transport Package:Container
- Specification:LX1000
- Trademark:Jiayang
- Origin:China
Description

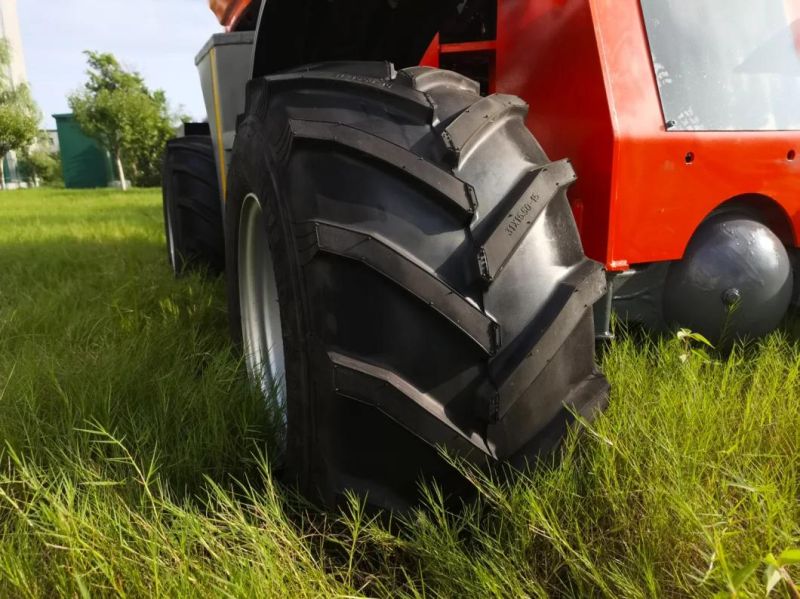

LAND X 1000 MINI WHEEL LOADER SPECIFICATIONItem Feature 1.0 Engine details: Model YUNNEI490 Engine type In-line arrangement, water-cooled, three-cycle diesel Engine Rated Power 37KW Rated Speed 2400 r/min (rpm) 2.0 Steering System Cycloid full hydraulic steering system BZZ-80 System Pressure 10MPa 3.0 Bucket Bucket Capacity 0.4 m3 Bucket width 1400mm Bucket type Heavy-duty bolt on teeth Max. Breakout Force 28KN Rated Load 1000kg Operating Weight 2850kg 4.0 Overall Dimensions Overall Length (Bucket on ground position) 4600mm Overall Height 2580mm Ground to Cab Top 2580mm Ground to exhaust pipe It is below from the top of cabin Overall Width 1700mm 5.0 Operating Specifications Drive Means Four-wheel drive Min Turning Radius 4600mm Driving System torque converter Dumping Height 2300mm Dumping Reach at max height 750mm Min the ground distance 240mm Time of raise 4sec. Hydraulic cycle time 9sec. 6.0 Brake System Service Brake Four Wheel Hydraulic spread-shoed brake Parking Brake Hand operated 7.0 Tyre Model 31*15.5-15 Wheelbase 2170mm Track 680mm
----4 Cylinder Engine.
----Automatic with Torque Converter.
----4 Wheel Drive.
----Standard Bucket.
----Luxury Cabin.
----Adjustable Steering Wheel.
----220V Engine Pre-heater.
----Cabin Heater.
----Air Pre-heater.
----Lock For Lifting And Steering Cylinder.
----Hydraulic Check System.
----Quick Hitch.
----Mechanical Joystick.
----Easy-damaged Spare Parts.
----Optional equipments.
----Extra Hydraulic Line.
----LED Lights.
----Varta Anti-free Battery.
----pallet fork
The standard equipment:
----YUNNEI 490 Engine.----4 Cylinder Engine.
----Automatic with Torque Converter.
----4 Wheel Drive.

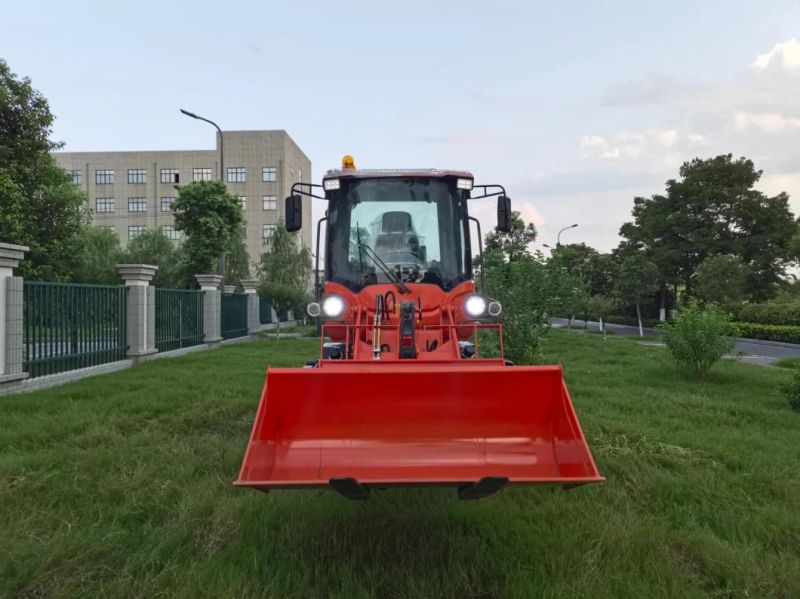

----Standard Bucket.
----Luxury Cabin.

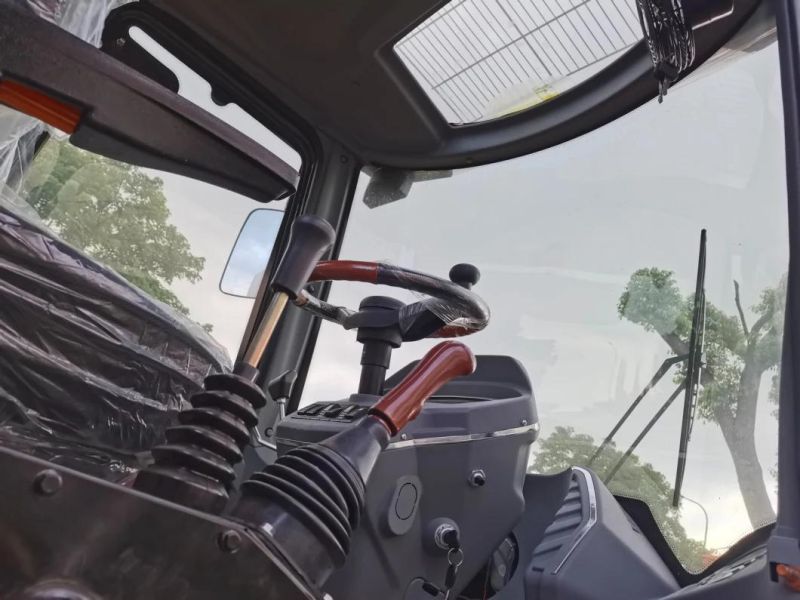

----Adjustable Steering Wheel.
----220V Engine Pre-heater.
----Cabin Heater.
----Air Pre-heater.
----Lock For Lifting And Steering Cylinder.
----Hydraulic Check System.
----Quick Hitch.
----Mechanical Joystick.
----Easy-damaged Spare Parts.
----Optional equipments.
----Extra Hydraulic Line.

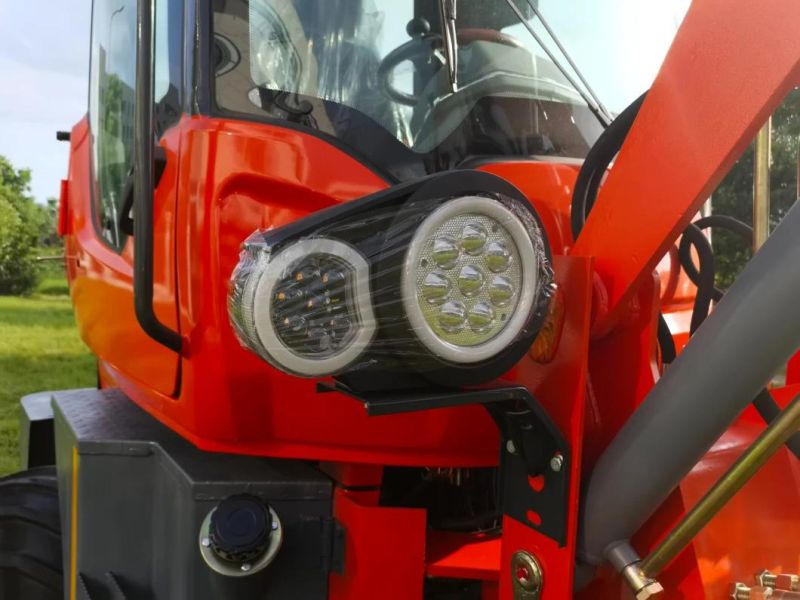

----LED Lights.
----Varta Anti-free Battery.
----pallet fork
