• Model NO.：YN08
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Trademark：YINENG
• Origin：Taian City, Shandong Province, China

Basic Info.

Model NO. YN08 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Trademark YINENG Origin Taian City, Shandong Province, China

Product Description

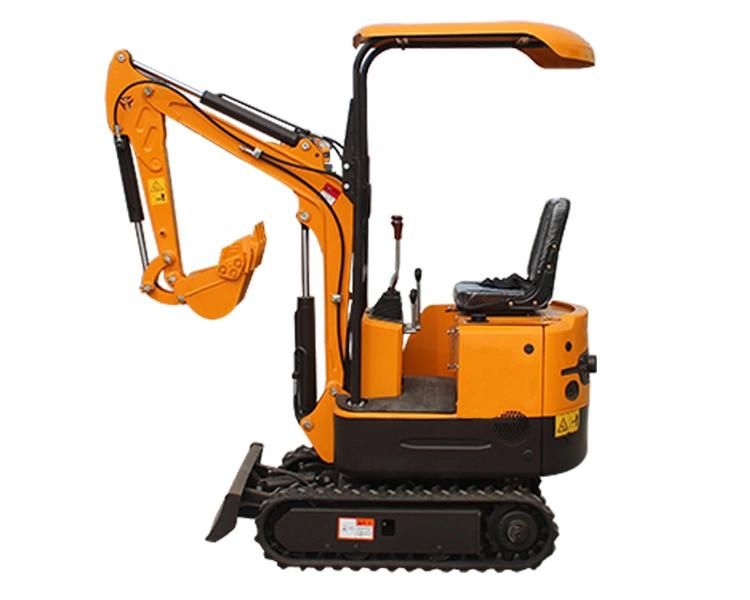

MINI EXCAVATOR: YN08

This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

SPECIFICATION:

Model	YN08
Brand	RHINOCEROS
Operating Weight	800kg
Digging bucket capacity	0.025cbm/100kg
Bucket width	340mm
Engine	KOOP / CHANGCHAI
Rated power	8.6 kw/1800r/min
Displacement	0.499 L
Bore stroke	70x55
Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN 310
Travel speed	1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)	1877x896x1990 mm
Wheelbase	770 mm
Total length of track	960mm
Platform ground clearance	376 mm
Platform back turning radius	664 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1376 mm
Max. Digging height	2365 mm
Max. Dumping height	1655 mm
Max. Digging radius on ground	2560 mm
Min. Rotation radius	1200 mm
Max. Upgrade height of bulldozer blade	165 mm
Max. Digging depth of bulldozer blade	170 mm

Company Profile

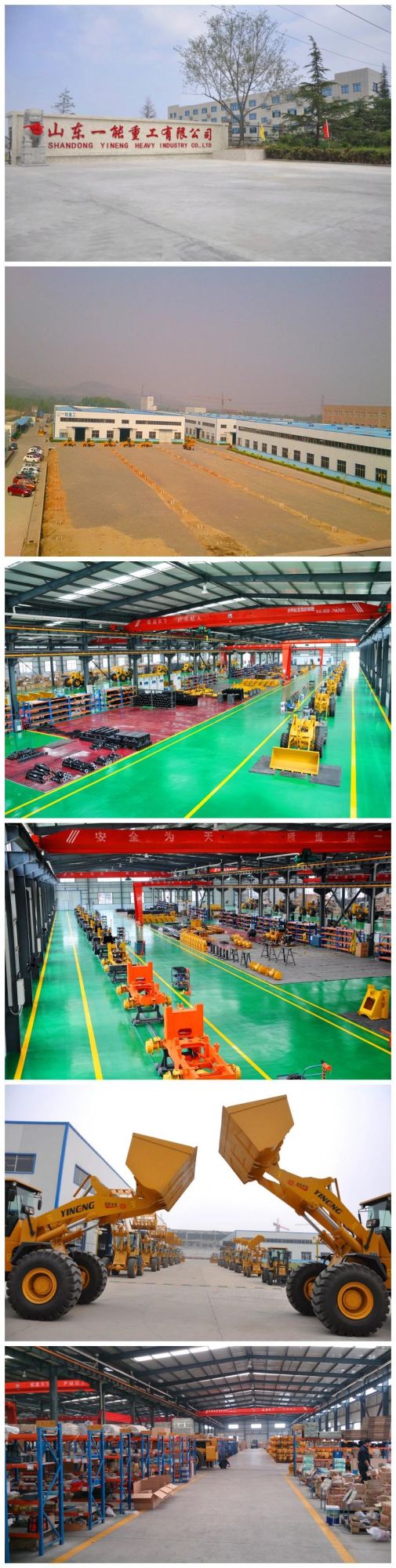

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
