Mucking Loader for Tunnel Project
Jining Enwei Intelligent Technology Co., Ltd.- Certification:TUV, UL, ISO, RoHS, CE
- Condition:New
- Rated Load:>9t
- Transmission:Hydraulic
- Load and Unload Mode:Conveyor Belt
- Walking Mode:Crawler
Base Info
- Model NO.:EW-50
- Type:Small Loader
- Excavating Width(mm):4200
- Excavating Distance(mm):1600
- Excavating Height(mm):1800-2700
- Excavating Depth(mm):450
- Unload Height(mm):1300-1600(Changeable)
- Climbing Ability(°):≤20(Hard Ground)
- Transport Package:Wooden Case
- Specification:680x580x500
- Trademark:ENWEI
- Origin:China
- HS Code:842959000
- Production Capacity:50 Piece,Month
Description
Basic Info.
Model NO. EW-50 Type Small Loader Excavating Width(mm) 4200 Excavating Distance(mm) 1600 Excavating Height(mm) 1800-2700 Excavating Depth(mm) 450 Unload Height(mm) 1300-1600(Changeable) Climbing Ability(°) ≤20(Hard Ground) Transport Package Wooden Case Specification 680x580x500 Trademark ENWEI Origin China HS Code 842959000 Production Capacity 50 Piece/MonthProduct Description

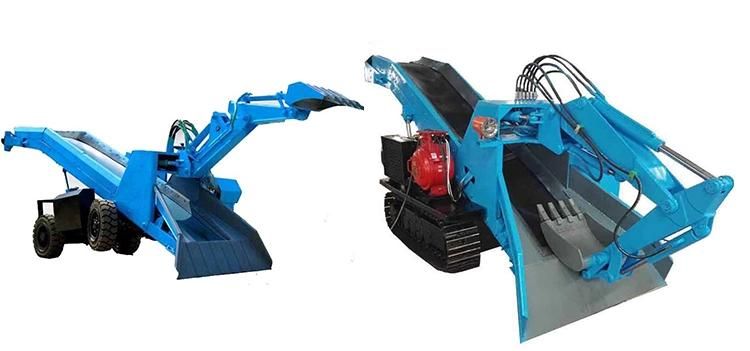

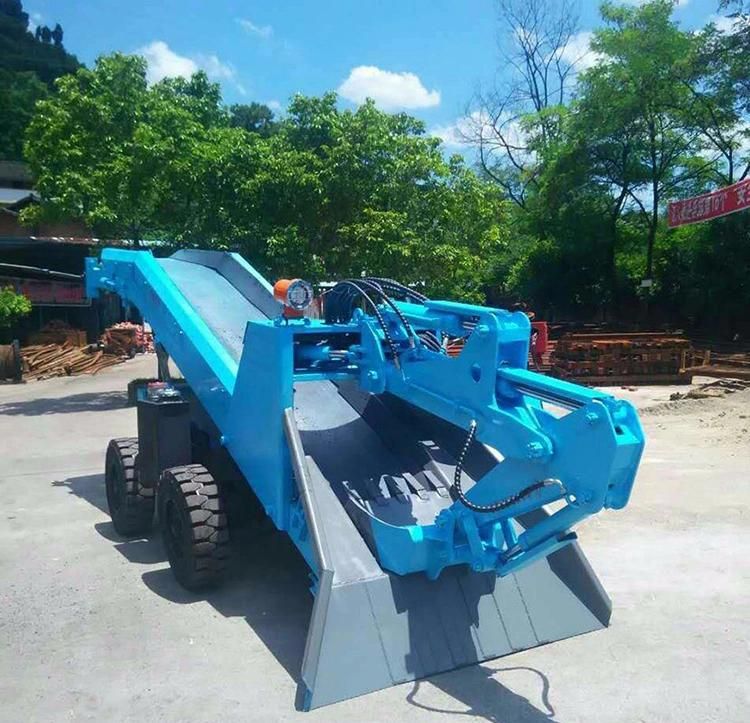

Product introduction:Mucking loader, also known as excavating loader, is a mechanical hand and conveyor joint, slag removal and conveying and loading functions into one, the use of electric full hydraulic control system and production equipment, with safety and environmental protection, low energy consumption, high efficiency characteristics.
Mucking loader is an indispensable advanced mining equipment for mining enterprises. Instead of manual operation, it can scrape all kinds of slag and stone materials after blasting onto transport vehicles. It is a substitute product of manual and other machinery, filling the blank of no mechanical operation in a narrow space.
Mining multi-functional mucking loader is a new type of loader developed to improve labor intensity and work efficiency. It can directly convey ore to conveyor belt. The machine adopts full hydraulic first-come control, and the operation is simple and convenient. The gantry frame of the machine can be disassembled without cutting, so it is convenient to go down well and install. In addition, the rear unloading height can be adjusted according to the customer's own needs.
Product parameters:

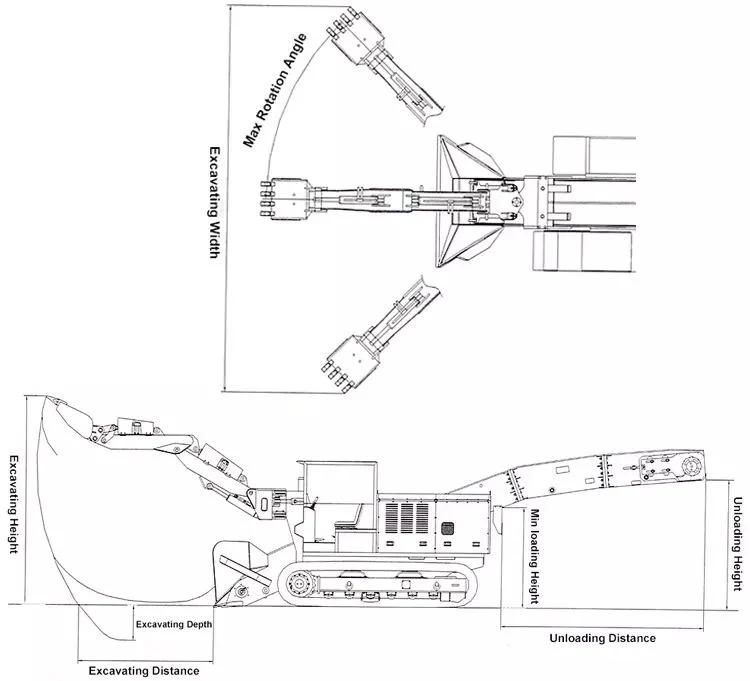

Mode | EW-60 | EW-80 | EW-120 | EW-180 |
Excavating Width(mm): | 4200 | 4800 | 5300 | 6500 |
Excavating Distance(mm): | 1600 | 1850 | 2200 | 2800 |
Excavating Height(mm): | 1800-2700 | 2800 | 3300 | 4400 |
Excavating Depth(mm): | 450 | 500 | 700 | 800 |
Unload Height(mm): | 1300-1600(Changeable) | 1700(Changeable) | 1913(Changeable) | 2693(Changeable) |
Minimum Loading Height(mm): | 1200(Changeable) | 1350(Changeable) | 1680(Changeable) | 1700(Changeable) |
Unload Distance(mm): | 1600(Changeable) | 1700(Changeable) | 2000(Changeable) | 3500(Changeable) |
Maximum Rotation Angle(°): | ±50 | ±50 | ±50 | ±50 |
Weight(T): | 7.8 | 8.2 | 14.8 | 18.6 |
Dimension: | 5000x1650x1750 | 6100x1700x1800 | 6500x2000x2300 | 13088x2350x2600 |
Loading Capacity(m³/hour): | 60 | 80 | 120 | 180 |
Min Turning Radius(mm): | 5500 | 5500 | 6000 | 12000 |
Climbing Ability(°): | ≤20(hard ground) | ≤25(hard ground) | ≤25(hard ground) | ≤25(hard ground) |
Travelling Speed(m/min): | 2-4.5 | 2-4.5 | 2-4.5 | 0.54 |
Motor Power(kw): | 22 | 30 | 55 | 55 |
Maximum Material By Size(LxWxH) (m): | 680x580x500 | 650x700x650 | 800x780x700 | 800x780x800 |
Ground Clearance(mm): | 200 | 230 | 270 | 380 |
Applied Working Section(W*H) (m): | ≥2x2 | ≥2.2x2.2 | ≥3x3 | ≥3.8x3.8 |
Nominal Working Pressure(Mpa): | 20 | 25 | 35 | 32 |
Conveying Mode: | Conveying Belt | Conveying Belt | Conveying Belt | Graper |
Product Function and Application:
Mucking loader is one type of multi-function mining machine integrating moving, digging, collecting, loading, conveying.
The products adopt electric power full-hydraulic drive system. Pushing force is large, digging range is wide,whole section excavating,no need manual work to clean the working site.
Mucking loader is used widely for mining of coal mine,metal mine,non-metal mine and tunneling of hydro project.
Products Advantage:
Compact structure
Easy to handle and maintain
Stable and durable performance
High efficiency and saving man power
Energy conservation and environment protection
