• Model NO.：GR215
• Engine Model：Ctaa8.3,6CTA8.3
• Traction Force：90kn
• Overall Weight：16500kg
• Transport Package：Nude, Suitable for Shiping
• Specification：8970x2625x3470
• Trademark：Made in China
• Origin：Jiangsu, China
• HS Code：96243060

Basic Info.

Model NO. GR215 Engine Model Ctaa8.3/6CTA8.3 Traction Force 90kn Overall Weight 16500kg Transport Package Nude, Suitable for Shiping Specification 8970x2625x3470 Trademark Made in China Origin Jiangsu, China HS Code 96243060

Product Description

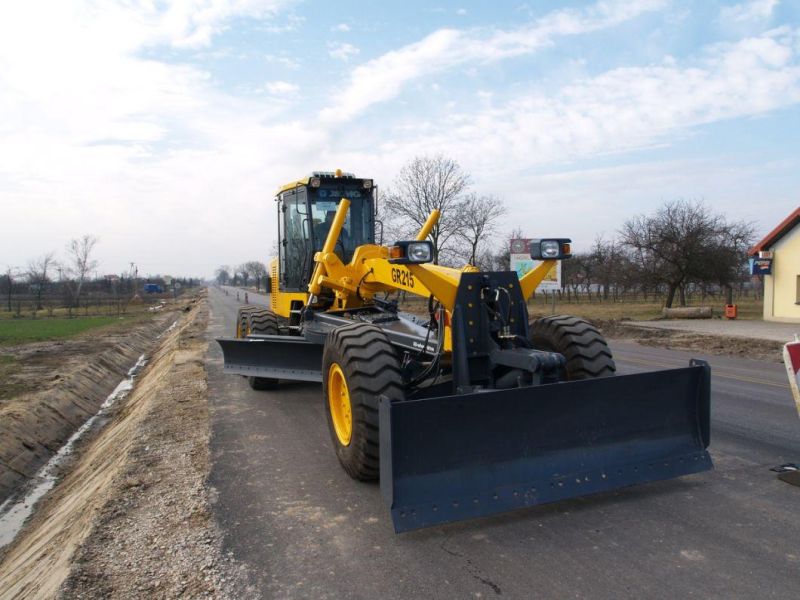

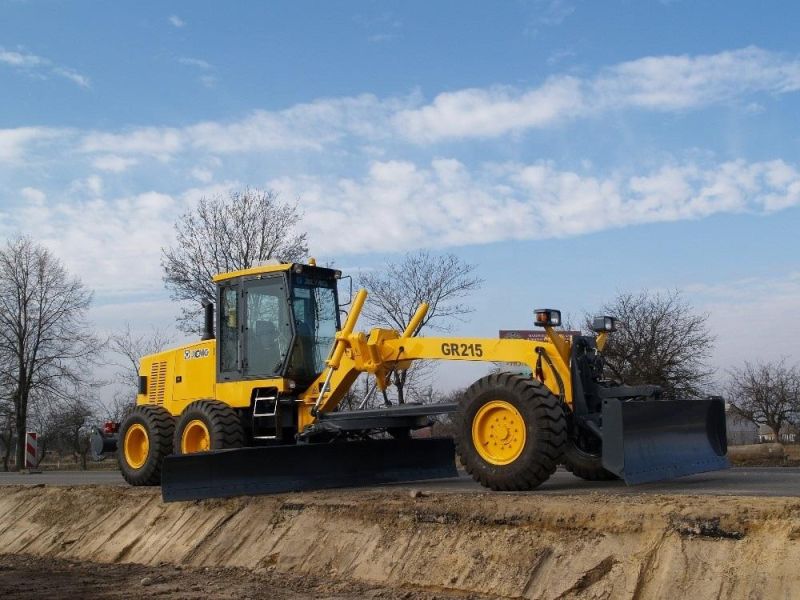

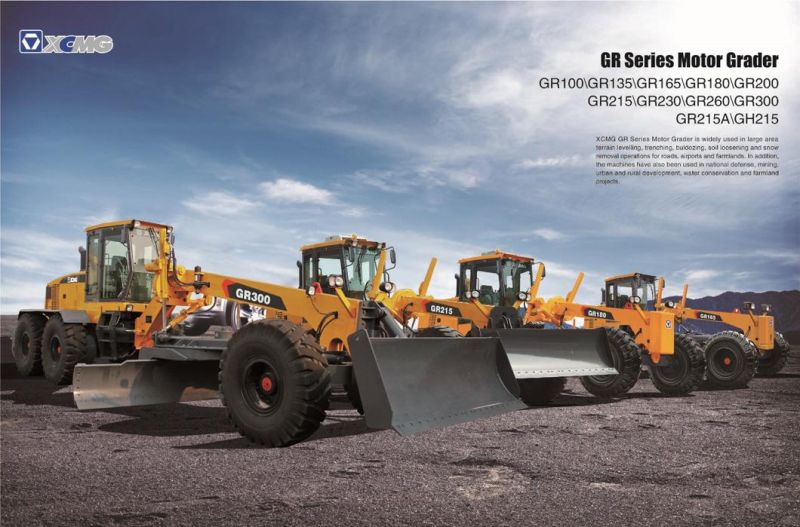

Road Construction Machinery 205/214HP Mini Grader GR215 with Cummins Engine

Product Description


1.The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

3.Rear axle main drive is equipped with "NO

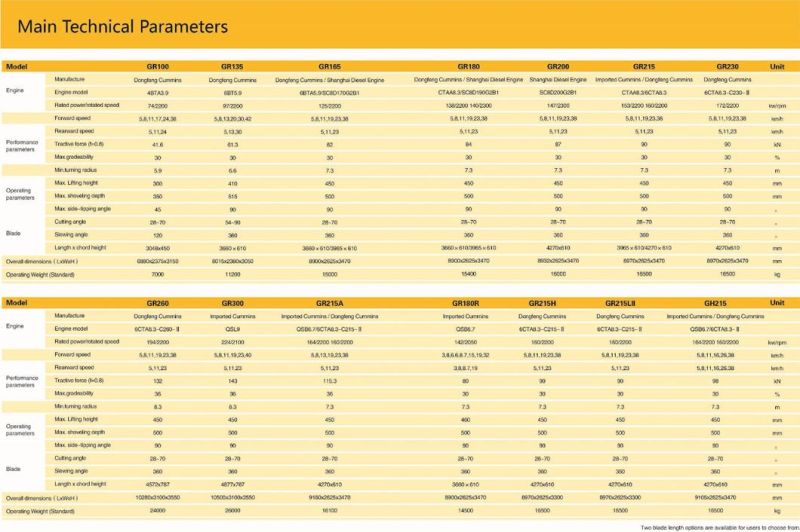

Item	Unit	GR100	GR135	GR165	GR180	GR200	GR215	GR230	GR260	GR300
Rated Power/speed	kW/rpm	74/2200	97/2200	125/2200	140/2200	147/2200	160/2200	172/2200	194/2200	261/2100
Traction Force (F=0.8)	kN	41.6	61.3	82	84	87	90	90	132	143
Min. Turing Radius	m	5.9	6.6	7.3	7.3	7.3	7.3	7.3	8.3	8.3
Moldboard WidthxHeight	mm	3048x45-	3660x610	3660x610	3965x610	4270x610	3965x610	4270x610	4572x787	4877x787



-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
5.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
