Custom Built Rubber Crawler Track Undercarriage with Payload 1-30 Ton
Ningbo Kingbonny Machinery Imp. & Exp. Co., Ltd.- Warranty：12 Months
- Type：Crawler
Base Info
- Model NO.：RT series rubber crawler undercarriage
- Application：Pile Driver
- Certification：ISO9001: 2000
- Condition：New
- Transport Package：Pallet
- Specification：on request
- Trademark：bonny hydraulics
- Origin：Ningbo, China
- HS Code：8431499000
- Production Capacity：on Request
- Package size per unit product：200.00cm * 80.00cm * 43.00cm
- Gross weight per unit product：1000.000kg
Description
MODEL
Dinamic
capacity
Static
capacity
Weight
kg.
Press.Bar
oil flow
L/min
Torque
Nm to
engine
Grad.
Speed
km/h
RT-1500
1200
1500
330
270
17
2000
65%
1.7
RT-2500
2500
3000
380
220
35
4723
65%
2/3.2
RT-3500
3500
4000
650
220
35
4723
65%
2/3.5
RT-5000
5000
6000
900
220
55
8330
65%
2/3.7
RT-6000
6000
7000
1280
220
55
8330
65%
2/3.7
RT-8000
8000
9500
1550
300
82
11700
65%
2.8/4.7
MODEL
A
Length
B
Center Distance
C
Height
D
Total Width
E
Width of track shoe
F
Height of Cross beam
No. of
roller
RT-1500
1420
1066
350
980
230
165
3+3
RT-2500
1850
1370
480
1220
250
245
4+4
RT-3500
1980
1511
500
1520
300
250
5+5
RT-5000
2500
1950
550
1800
350
265
6+6
RT-6000
2905
2355
550
1800
400
265
7+7
RT-8000
2950
2450
600
1800
400
310
7+7

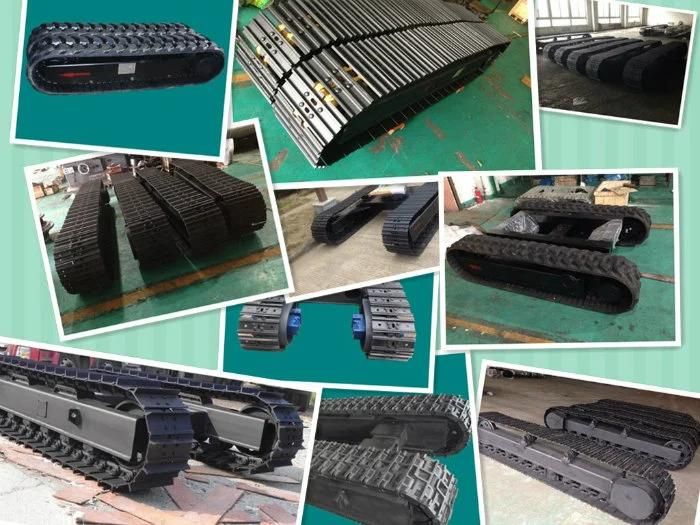

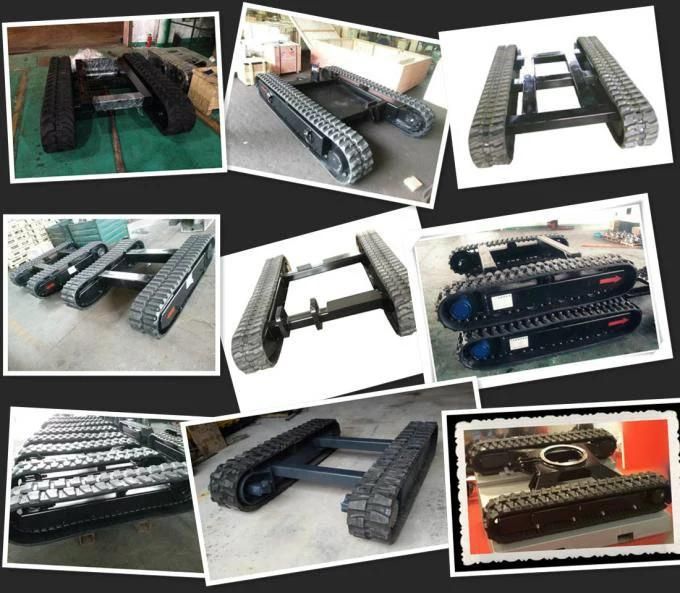

Company

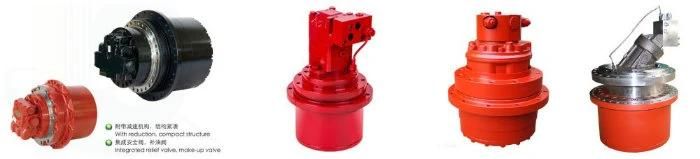

Type of final drive gearbox

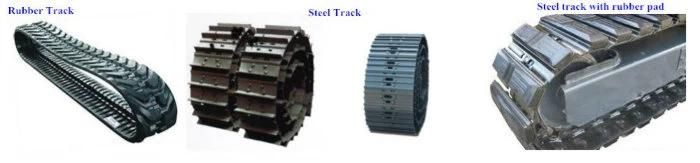

Type of track

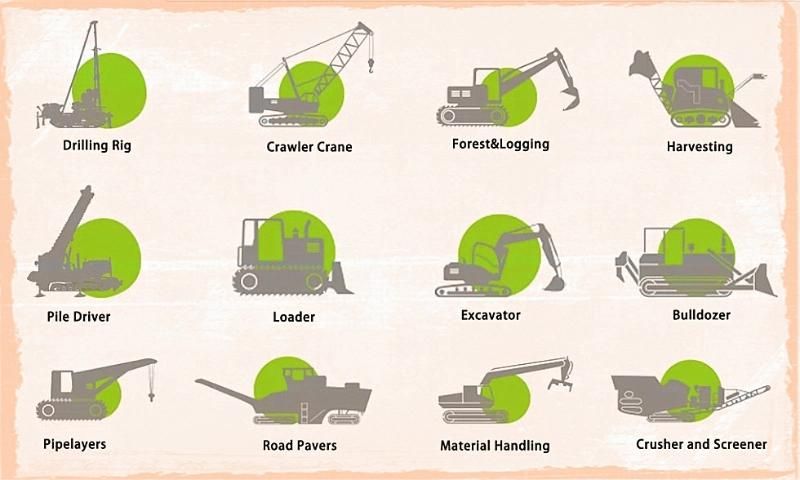

Application of undrcarriage
FAQ
1. Are you the manufacturer or trader of crawler undercarriage?
We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of rubber crawler track undercarriage.
2. How long is the delivery?
Usually it is 20 days for the production.
3. What's the warranty of your product?
We can offer you 12 months quality guarantee period after receipt of product.
4. Can you custom make the product?
Yes, all dimensions and specifications of rubber crawler track undercarriage can be designed and made based on your requirements.
5. How to order?
To make sure the offered rubber crawler undercarriage is suitable for your application, please offer the following details:
1. Rubber or steel track undercarriage:
2. What is the payload of undercarriage:
Note: it is the weight of machine excluding the weight of undercarriage.
3. length of track undercarriage (mm):
4. width of each side of track undercarriage (mm):
5. height of track undercarriage (mm):
6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):
9. travelling speed (km/hr):
10. climbing capacity:
