• Model NO.：XS163j
• Vibration Frequency：28Hz
• Weight on Front Drum：7700kg
• Max. Power：115kw,1800r,Min
• Transport Package：Nude Packing
• Trademark：Made in China
• Origin：Jiangsu, China
• HS Code：84294019

Basic Info.

Model NO. XS163j Vibration Frequency 28Hz Weight on Front Drum 7700kg Max. Power 115kw/1800r/Min Transport Package Nude Packing Trademark Made in China Origin Jiangsu, China HS Code 84294019

Product Description

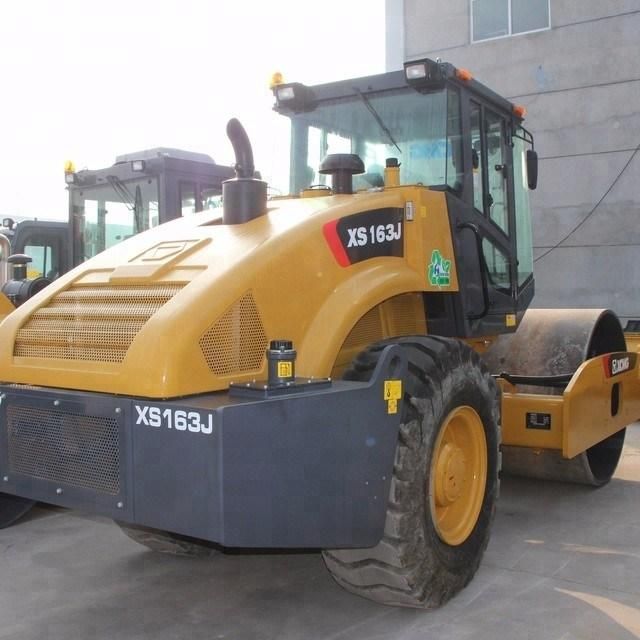

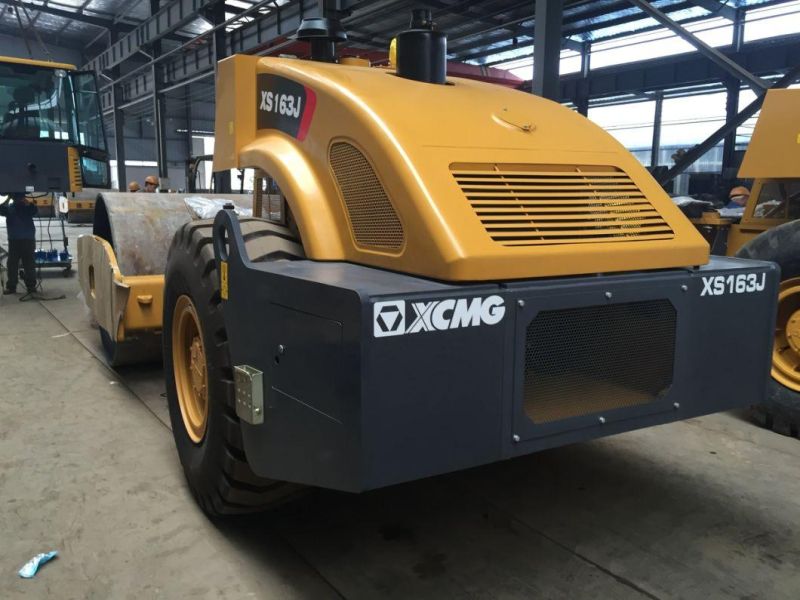

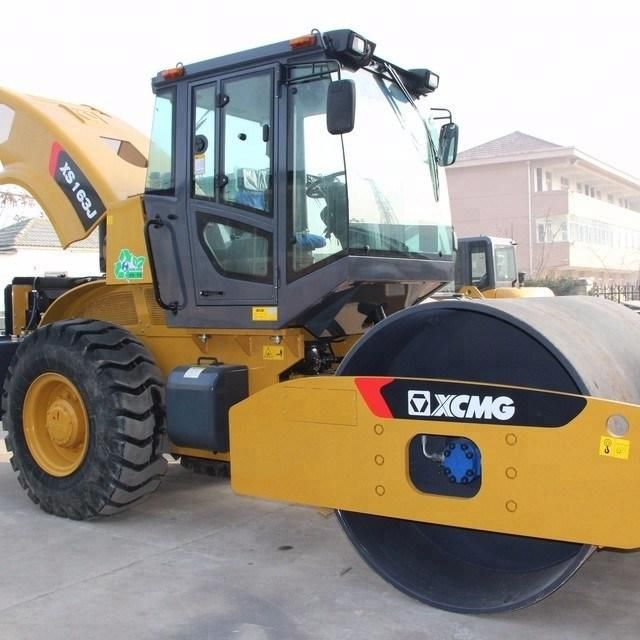

Construction Machinery 16t Single Drum Compactor Xs163j


Comfortable driving

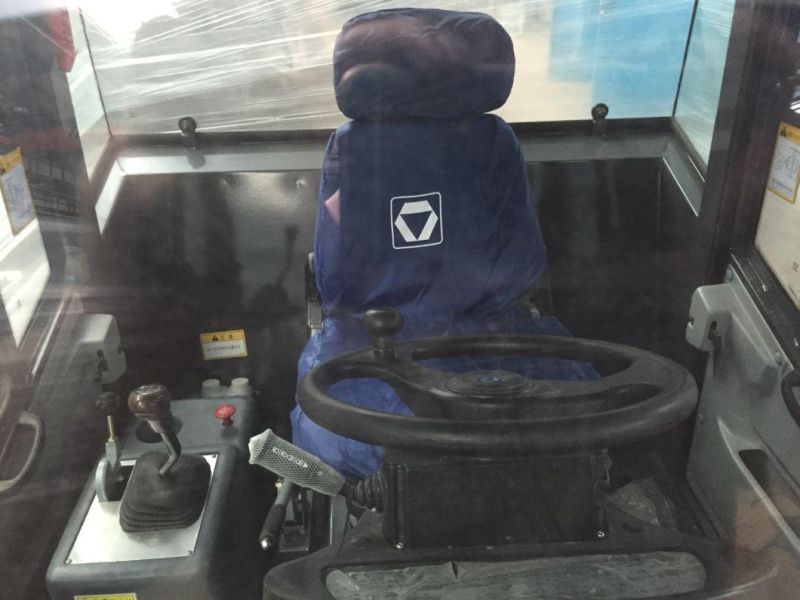

ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure

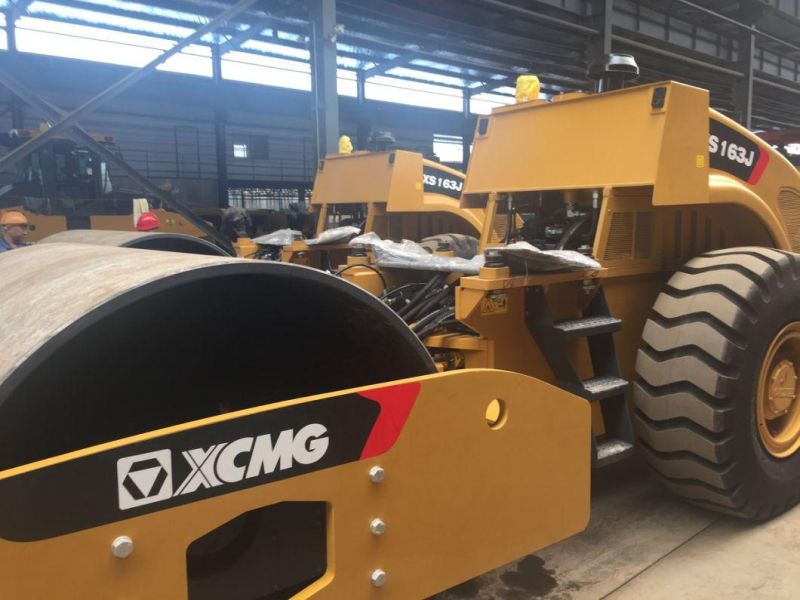

Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.

Specification:

Model	Unit	XS163J
Operating weight	kg	16000
Weight on front drum	kg	7700
Static linear pressure	N/cm	362
Speed range	km/h
Speed I		2.54
Speed II		4.97
Speed III		10.51
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	290/145

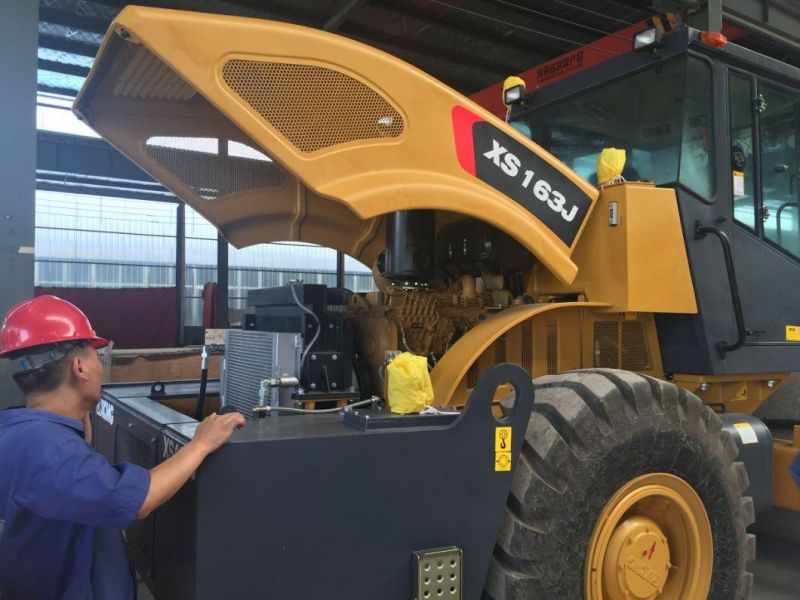

Engine model		SC8D156.2G2B1
Type		Water cooled, pressurized
Max. power	kW	115kw/1800r/min
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240
