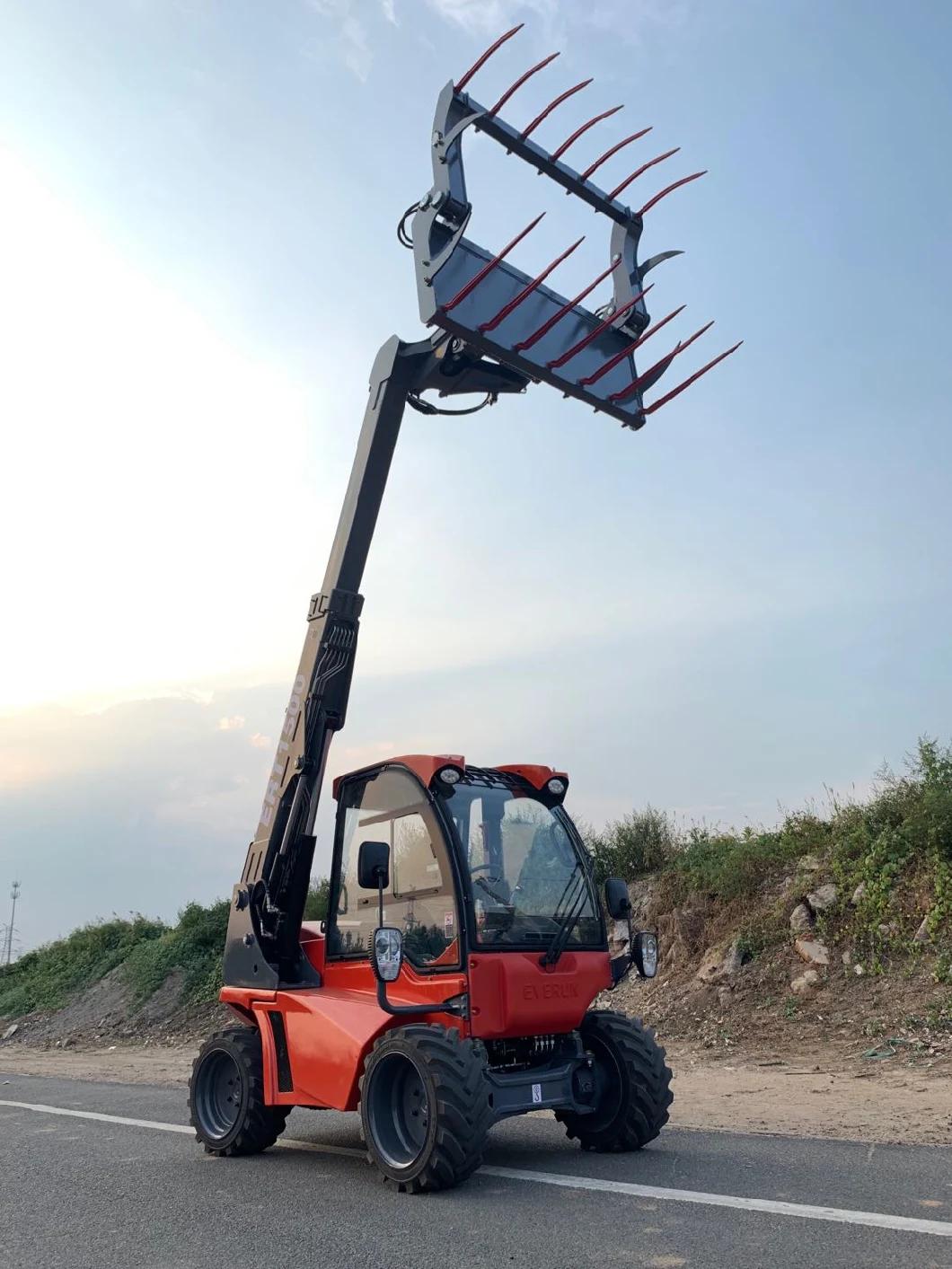

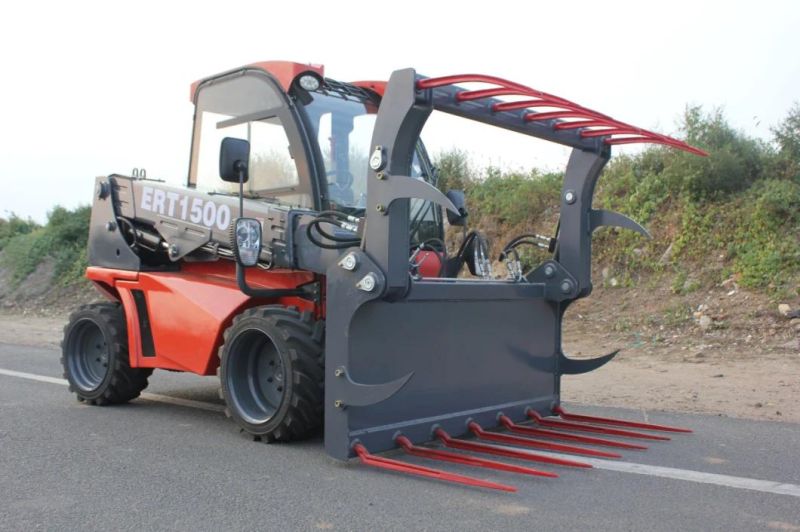

Everun Ert1500 Chinese CE Small Telehandler Telescopic Boom Handler Compact Front End Portable Construction Farm Garden EPA Mini Wheel Loader Made in China

Qingdao Everun Technology Co., Ltd.
  • Warranty：1 Year
  • Certification：TUV, ISO, CE

Base Info

  • Model NO.：ERT1500
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydrostatic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Rated Loading (Kg)：1350kg
  • Overall Weight (Kg)：2800kg
  • Rated Bucket Capacity (Cbm)：0.3cbm
  • Max. Dumping Height mm：3410mm
  • Maximum Dump Reach mm：980mm
  • Engine Model：Perkins 403D-15
  • Rated Power Kw：20.9,24.6
  • Rated Speed Rpm：2200,2800rpm
  • Maximum Speed Km/H：8,16km,H
  • Wheel Base mm：1700mm
  • Ground Clearancemm：331mm
  • Working Pressure MPa：21MPa
  • Lifting Time：10s
  • Transport Package：Container Load
  • Specification：3350*1588*1955mm
  • Trademark：Everun
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：2000
  • Package size per unit product：335.00cm * 158.00cm * 195.00cm
  • Gross weight per unit product：2800.000kg

Description

Overview Product Description



Product Parameters



230g/kw.H      Standard working condition:2.0 Transmission SystemHydraulic Motor + 4 Wheel Drive Motors3.0 Standard Bucket   3.1  Bucket capacity:0.3 m3  3.2  Bucket Width:1588mm  3.3  Bucket type:Standard  3.4  Rated load:1400 kg including attachment4.0 Overall Dimensions   4.1  Overall length(bucket on ground)3350mm  4.2  Overall Height1955mm  4.3  Overall width1588mm 4.4  Max. lifting Height4010mm5.0 Operating Specifications   5.1  Steering system:Rear axle with hydraulic power steering  5.2  Min.turning radius: 3560mm  5.3  Driving system:Hydraulic Motor, Four Wheel Drive.  5.4  Operating Weight:                      2800 KG  5.5  Max. Driving Speed:   18km/h5.6  OtherQuick Coupling System ; Joystick ; Self-levelling6.0 Brake System   6.1  Service BrakeHydraulic Oil Cutting-Off Brake  6.2  Parking BrakeElectrical Parking Brake7.0  Tyre   7.1  Model26*12-16.5  7.2  Width275mm  7.3  Diameter658mm8.0  Wheel Base1720mm9.0  Track1150mm10.0 System Pressure    10.1  Driving system35Mpa ;46cc  10.2  Work system24Mpa ; 22L/min

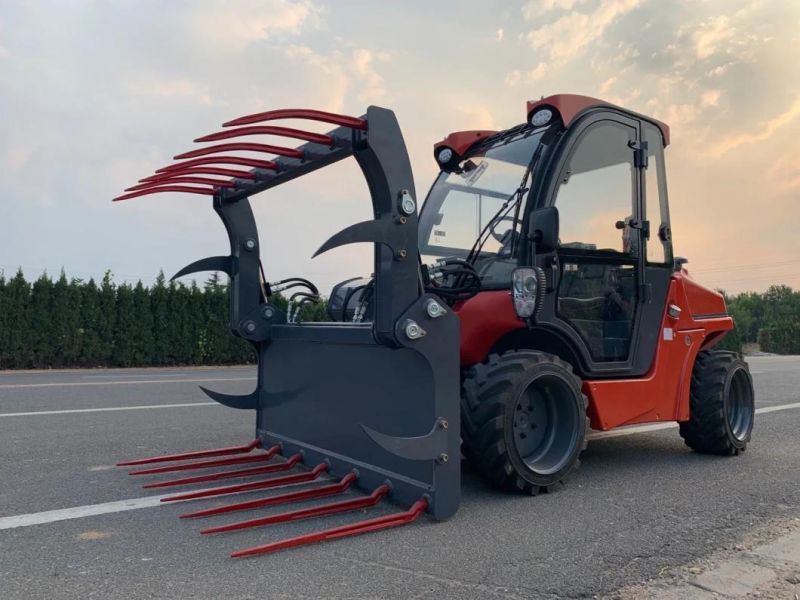

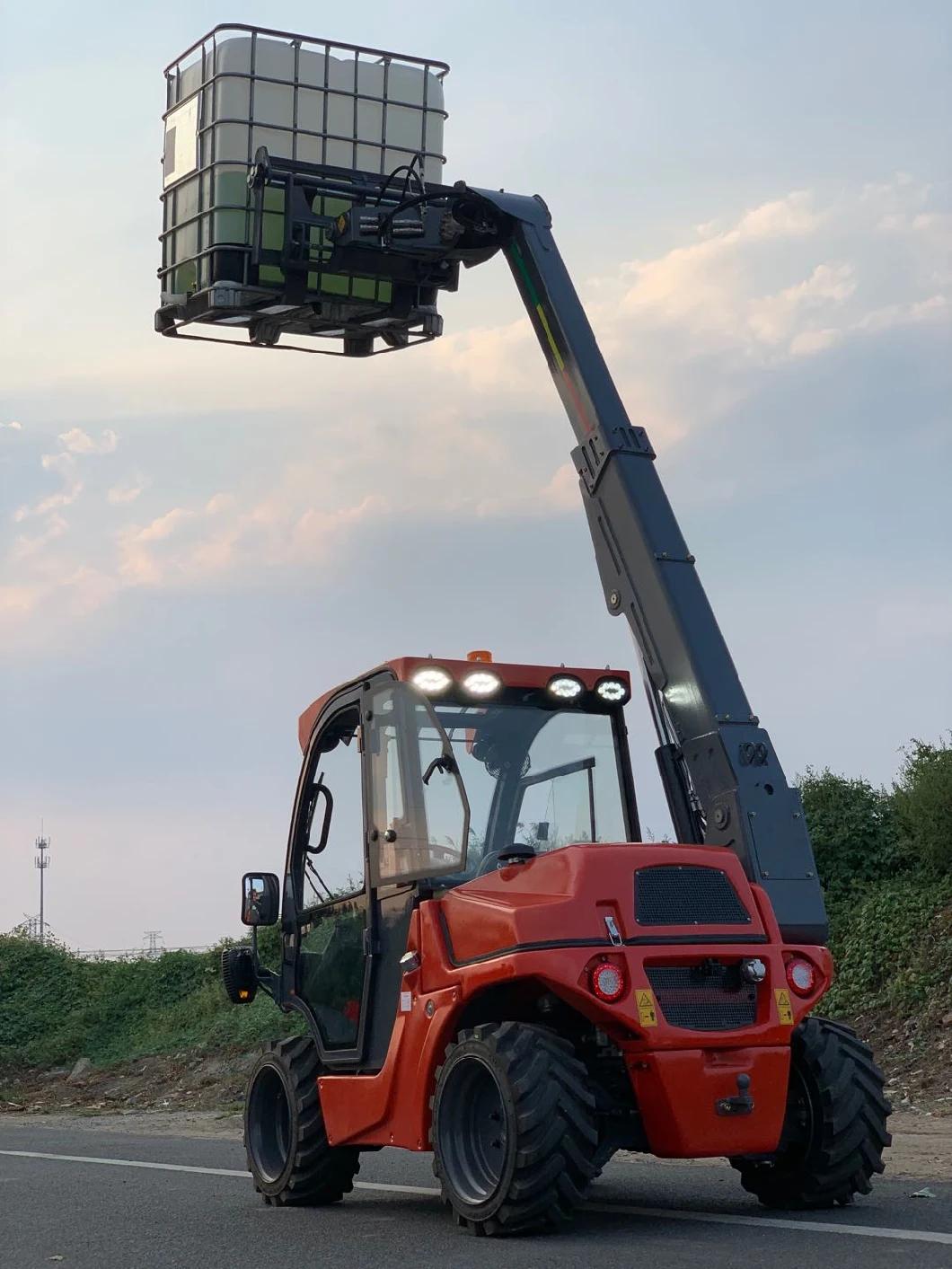

Everun Ert1500 Chinese CE Small Telehandler Telescopic Boom Handler Compact Front End Portable Construction Farm Garden EPA Mini Wheel Loader Made in China
