• Model NO.：PZ-9
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Customized Color
• Warranty：1 Year
• Original：China
• Motor：Electric Motor or Diesel Engine
• Delivery Time：in Stock or 10 Days Within Correct Deposit
• Transport Package：Wooden Case
• Trademark：ETERNOO

Basic Info.

Model NO. PZ-9 Vibrating Amplitude 2.6mm Certification ISO9001: 2000, CE Condition New Color Customized Color Warranty 1 Year Original China Motor Electric Motor or Diesel Engine Delivery Time in Stock or 10 Days Within Correct Deposit Transport Package Wooden Case Trademark ETERNOO

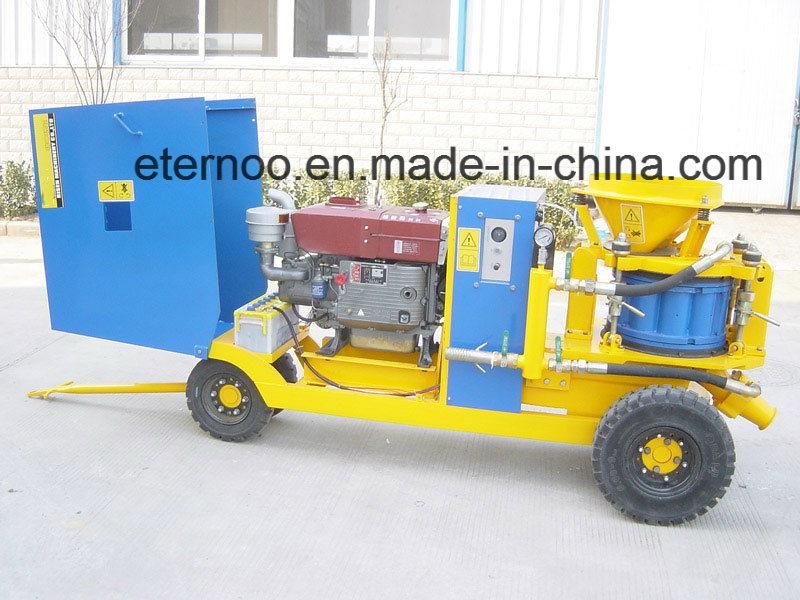

Product Description

APPLICATION:

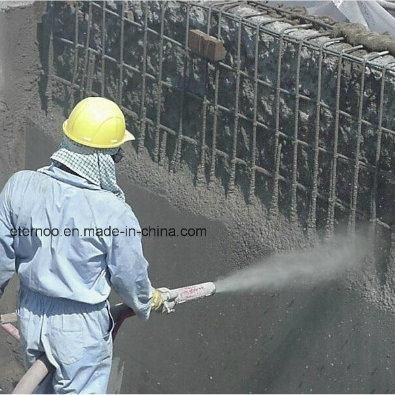

Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns' inner liner.
FEATURES:
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4. Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
5. Three drive models: By Electric motor, air motor or diesel engine.
6. CE safety standard.
 TECHNICAL DATA:

Output Capacity	9 cubic meter/hour
Maximum Conveying Distance	150 m
Desired Shotcrete Ingredient Ratio	Cement/sand and gravel < 0.35
Maximum Aggregate Size	20 mm
Inner Diameter of Conveying Hose	64 mm .
Working Compressed Air Pressure	0.2 ~ 0.6 MPa
Conveying Air Consumption	9 ~ 10 cubic meter / min)
Diesel Engine	7.5kW (10 HP)
Dimensions	1500 x 1320 x 830 mm
Net Weight	900 Kg
