Top Quality Sem 18 Ton 129kw Vibratory Road Roller Compactor Sem518
Evangel Industrial (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Transport Package：Nude Package
Base Info
- Model NO.：SEM518
- Specification：6250*2350*3125mm
- Trademark：sem
- Origin：China
Description
Basic Info.
Model NO. SEM518 Specification 6250*2350*3125mm Trademark sem Origin ChinaProduct Description

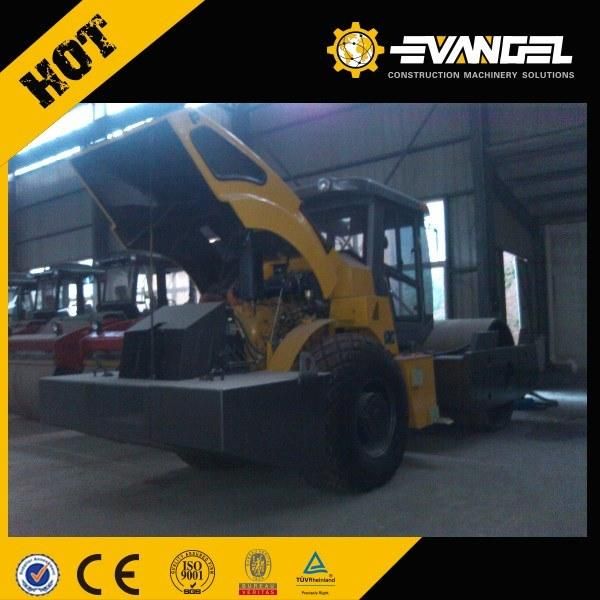

Famous brand SEM SEM518 18TON Single Drum roller in hot sale
Product Description
High Efficiency: The unique vibratory pod design along with 50 mm thick drum provides superior compaction performance
* Reliability: Vibration system utilizes eccentric vibe pod design, extends life over 50%
* Operation: Digital frequency meter and three level alarm system monitor machine performance
Specifications:
| Item | Parameters | Unit |
| Engine model | - | |
| Rated power | 129 | kW |
| Rated speed | 2000 | r/min |
| Machine Mass Weight | 18000 | kg |
| Static Linear Load | 415 | N/cm |
| Max. Grade Ability | 34 | % |
| Outer Turning Radius | 6350 | mm |
| Compaction Width | 2130 | mm |
| F/R 1 | 2.98 | km/h |
| F/R 2 | 5.88 | km/h |
| F/R 3 | 9.6 | km/h |
| Vibration Frequency (High/Low) | 30/28 | Hz |
| Amplitude-Hi/Lo | 2/1 | mm |
| Centrifugal Force-Hi/Lo | 327/188 | kN |
| Machine Dimensions[L*W*H] | -- | mm |
| Steering Angle | ±33 | ° |
| Swing Angle | ±12 | ° |
| Drum Thickness | 40 | mm |
| Drum Width | 2130 | mm |
| Drum Diameter | 1600 | mm |
| Fuel Tank Volume | 262 | L |
