• Model NO.：Hbt9018K
• Dimension(L*W*H)：6482*2100*2886mm
• After-Sales Service Provided：Video Technical Support, Online Support
• Rated Rev：2100r,Min
• Pressure of Hydraulic System：32MPa
• Rated Working Flow：560L,Min
• Power Type：Diesel
• Hopper Capacity/Fill：0.6cbm,1370mm
• Concrete Slump Ran：80-230mm
• Transport Package：Comply with Export Packaging Requirements
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：1000 Unit,Units Per Year

Overview Product Parameters



UnitParameter valueOverall performanceOverall dimensionsmm6482×2100×2886Total curb masskg7400Concrete delivery valuem3/h115/60Max. output pressureMpa18Pulling speedkm/hThree-level road 8km/h Road above two-level16km/hDelivery distance(vertical/horizontal)m250/1000Hopper capacity/filling heightm3/mm0.6/1370Concrete slump rangemm80-230Concrete delivery cylinder diameter/strokemm230/1600Power systemMain motor (diesel engine)ModelBF6M1013Rated powerkw186Rated revr/min2100ManufacturerDEUTZHydraulic systemType Open typePressure of hydraulic systemMpa32Main oil pumpModel and type280Rated working flowL/min560ManufacturerKAWASAKIPumping oil cylinder diameter /strokemm170/1600Capacity of hydraulic oil tankL600Mixing system Large torque at low speed

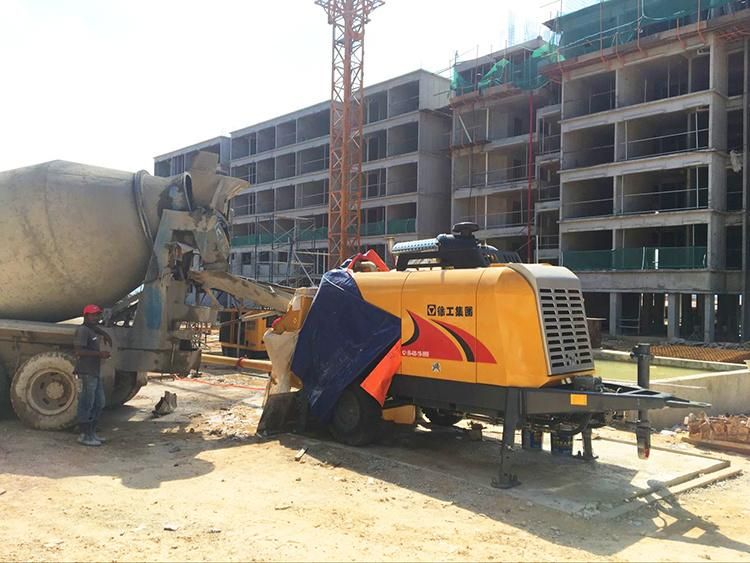

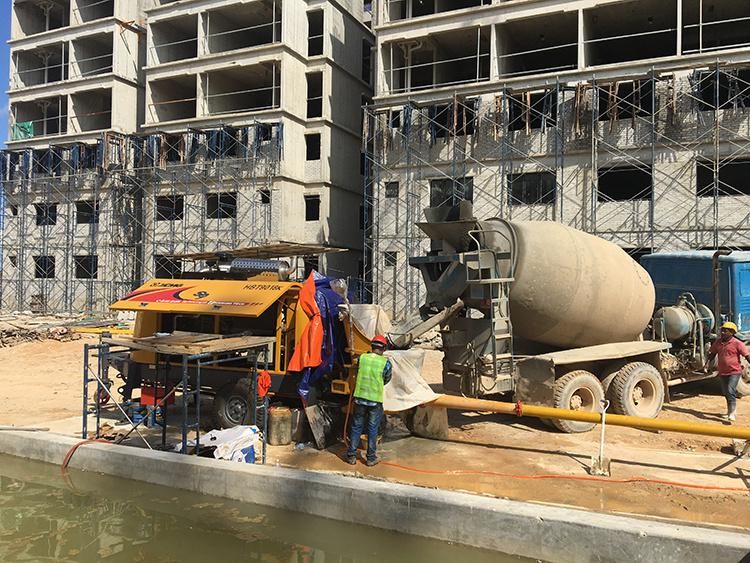

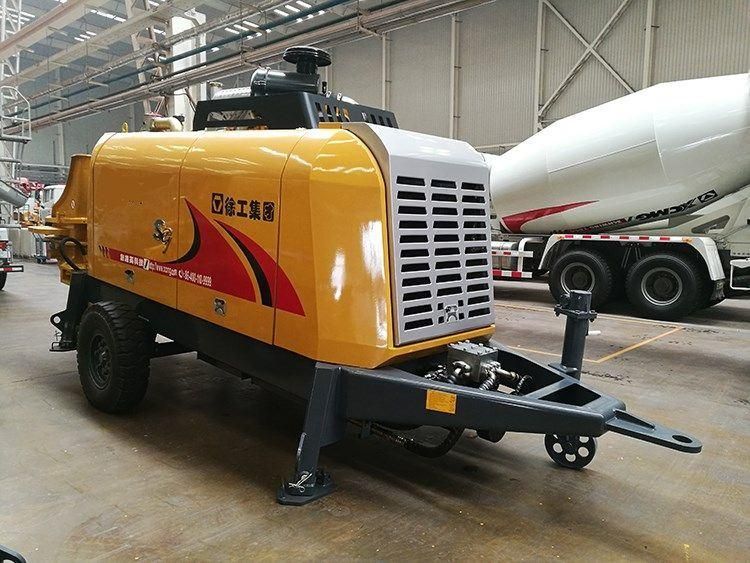

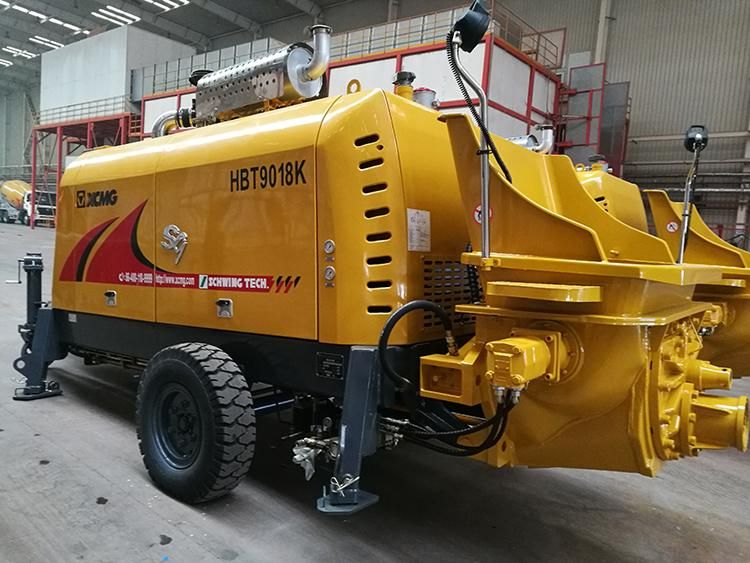

Detailed Photos
