  • Type:Asphalt Mixing Plant
  • Moving Type:Mobile
  • Automatic Grade:Automatic
  • Product Capacity:40~400t,h
  • Certification:ISO9001: 2000, CE
  • Condition:New

Base Info

  • Origin:China
  • Production Capacity:500units,Month

Description

Basic Info.

Origin China Production Capacity 500units/Month

Product Description

Leading professional manufacturer of asphalt mixing plant with 20 years' experience, more than 2000 sets of asphalt plants distributed in global market, which covered 31 provinces in China and more than 30 countries around the world.

Obtained 45 national patents of asphalt mixing plant in China, passed the ISO9001:2000 Quality Management System Certification, as well as European CE and Russia GOST certification.

60 professional after sale service engineers, one overseas joint venture company(Kazakhstan), 13 global agents and distributors, 6 overseas offices and global spare parts warehouse, which are all ready to provide professional service for all overseas customers at any time.

1) PMT series asphalt mixing plant is a new generation product that innovated by Roady with its own independent research and development,which adopted global leading technology "Parallel Weighing". The plant is designed with elegant and magnificent appearance; it not only can greatly save energy consumption but also protect environment efficiently.
A, PMT360: Rated production capacity360t/h
B, PMT260: Rated production capacity260t/h

C, PMT460: Rated production capacity460t/h

2) RD Series Asphalt Mixing Plant (50L to 175L/Hour)

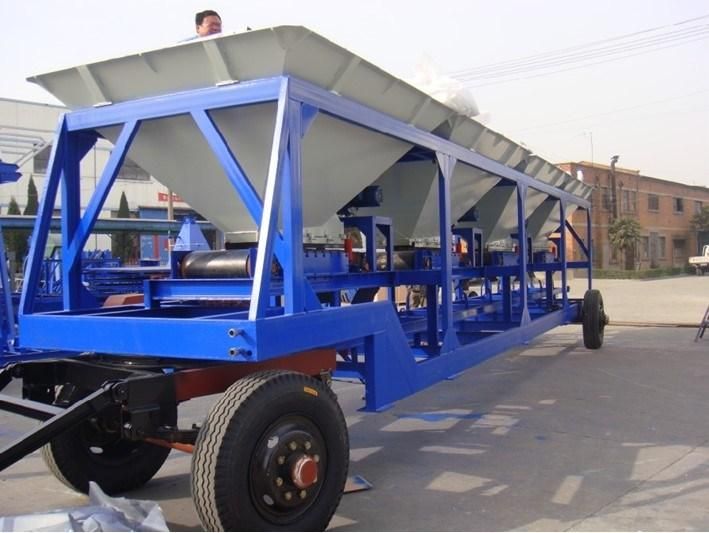

Modular cold aggregate feeding system which can synchronization proportional control and adjust automatically
Energy-efficient dry heating systems whose heat exchange efficiency reach 90%
High-strength plate chain bucket elevator system with 0 db mute backstop
Quick changing and maintenance-free screening system with smart air lead and pressure relief
High precision weighing system with good stability and automatically error compensation
High efficiency and large-circulation stereo boiling mixing system with 15% overcapacity redundant design
Efficient and environmentally friendly bag filter system with emissions Far exceeding the national standards
Stackedfiller silo with customized items available, reclaimed filler re-using system
Asphalt supply system with easy and flexible combination and fast installation
High reliability air system which can continuous working in extreme environment with -15ºC-50ºC
Stable and easy operationPC+PLC smart control system with independent intellectual property rights

3) DHB Series Drum Asphalt Mixing Plant (60L~175L/Hour)
Model DHB60: Rated capacity60(t/h)

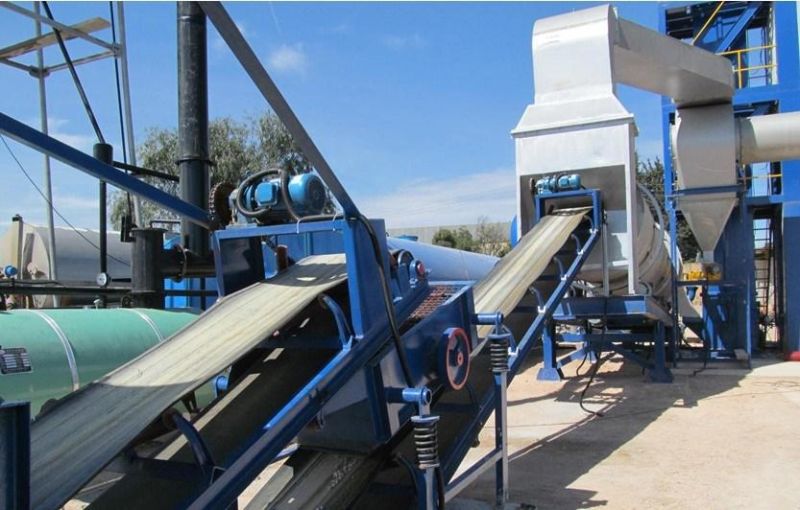

4) MDHB Series Drum Asphalt Mixing Plant

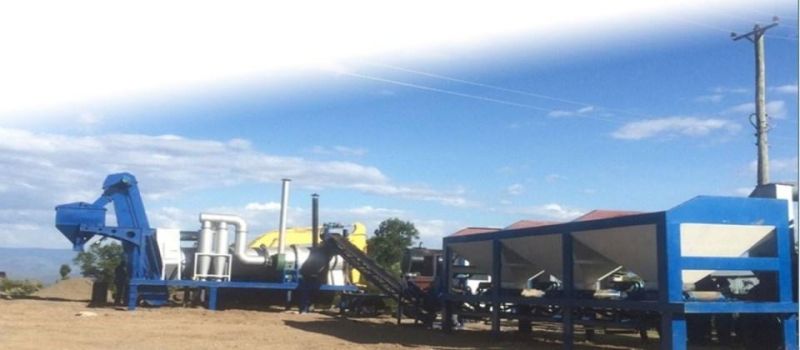

Mobile Asphalt Mixing Plant (60L~175L/hour)

Model MDHB60: Rated capacity60(t/h)


ModelMDHB60
TypeDrum Asphalt Plant
Capacity60 Tons Per Hour (Standard Working Condition)
Drying & Mixing DrumΦ1500*6500mm
Fuel Consumptiondiesel consumption: 5.5-7.0 kg /ton
Weighing Precisionhot aggregate: ±0.5%; bitumen: ±0.3%
Hot Asphalt Temperature130ºC-165ºC(adjustable)
Air Emissions≤100mg/Nm³
Working Noise≤70db(A)
OperationFull Auto/Manual Operation
Installation Power115kw
Electrical Design220V/380V-50Hz(adjustable)
Plant Covering AreaLength: 33m, width: 20m, max. height point: 12m
DocumentsLay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate
