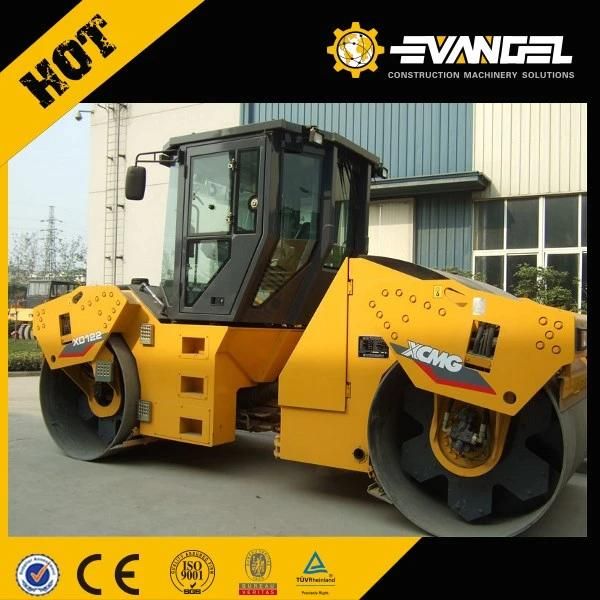

Top Quality 12ton Full Hydraulic Double Drum Vibratory Road Roller Xd122e in Hot Sale
Evangel Industrial (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
- Transport Package：Nude Package
- Specification：7850*2450*3150mm
Base Info
- Model NO.：XD122E
- Origin：China
Description
Type
Unit
XD122E
Operating weight (including cab)
kg
12000
load on front drum
kg
6000
Load on rear wheels
kg
6000
Static linear load
N/cm
282/282
Speed
km/h
0-10
Gradeability in theory
%
30
Minimum turning radius(Inner/Outer)
mm
4770/6900
Crab-walking distance
mm
160
Minimum ground clearance
mm
340
Wheel base
mm
3700
Steering angle
± °
35
Swing angle
±°
8
Vibration frequency
Hz
45/48
Nominal amplitude
mm
0.41/0.8
Centrifugal force
kN
85/140
Model and manufacturer
DEUTZ BF4M2012C
Rated rotating speed
r/min
2300
Rated power
kW
98
Rated oil wear
g.kw/h
222
Dimensions(LxWxH)
mm
5700x2420x3060
Water tank capacity
L
2×450
Fuel tank capacity
L
210
