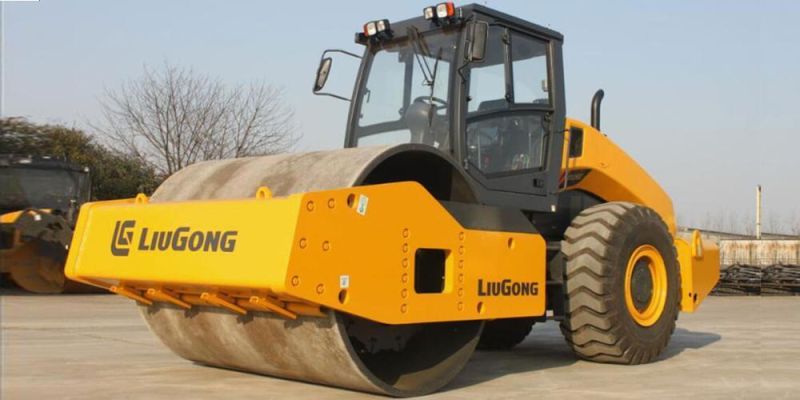

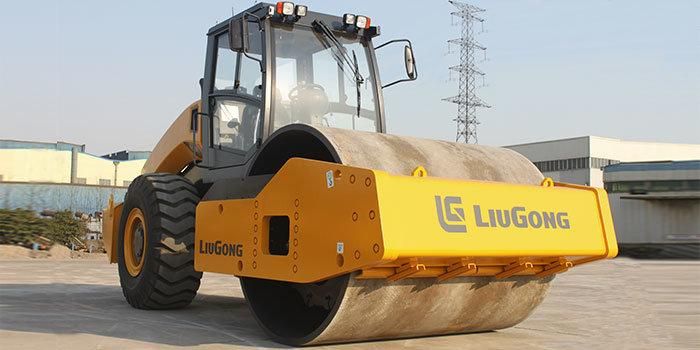

Chinese 20ton Vibatory Single Drum Road Roller 6120e
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：1year or 12month
- Type：Road Roller
- Working Method：Wheeled
- Axle：Uniaxial Monowheel
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：6120E
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：0~11km,H
- Centrifugal Force：300,190 Kn
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Hydraulic Cylinder Brand：China
- Unique Selling Point：High Operating Efficiency
- Transport Package：Nude Package, Attached Parts and Tools Into Standa
- Specification：6000mm*2280mm*3080mm
- Trademark：LIUGONG
- Origin：China
- HS Code：3005909000
- Production Capacity：1000
Description
Operating Mass
20000 kg
Mass On Vibrating Drum
10000kg
Mass On Drive Axle
10000 kg
Front Drum Static Linear Load
460 N/cm
Model
SC8D180.3G2B1
Emission Regulation
Stage II
Rated Power
132 kW (179 hp) @ 1800 rpm
Vibration Frequency
28 / 33 Hz
Nominal Amplitude
2.0 / 1.3 mm
Centrifugal Force
380/280 kN
Drum Diameter
1600 mm
1st Maximum Speed, fwd
2.7 km/h
2nd Maximum Speed, fwd
5.2 km/h
3rd Maximum Speed, fwd
11 km/h
Theoretical Gradeability
30%
Min. GroundClearance
450 mm
Wheelbase
3230 mm
Min. Outside Turning Radius
7000 mm
Overall Length
6450 mm
Overall Width
2340 mm
Overall Height
3150 mm
