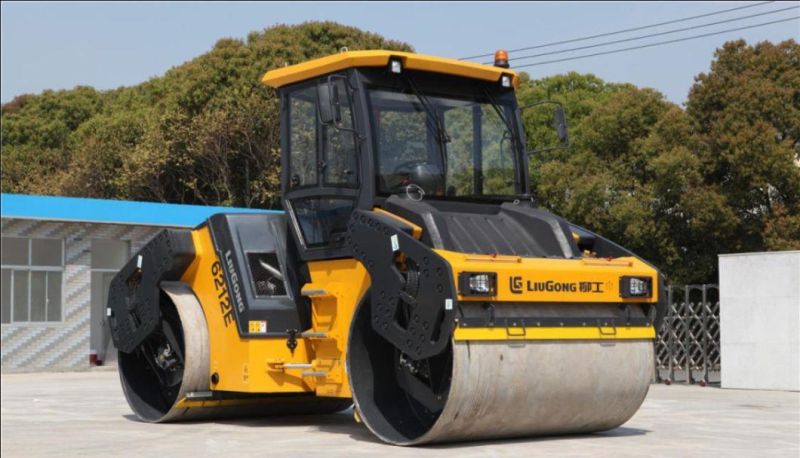

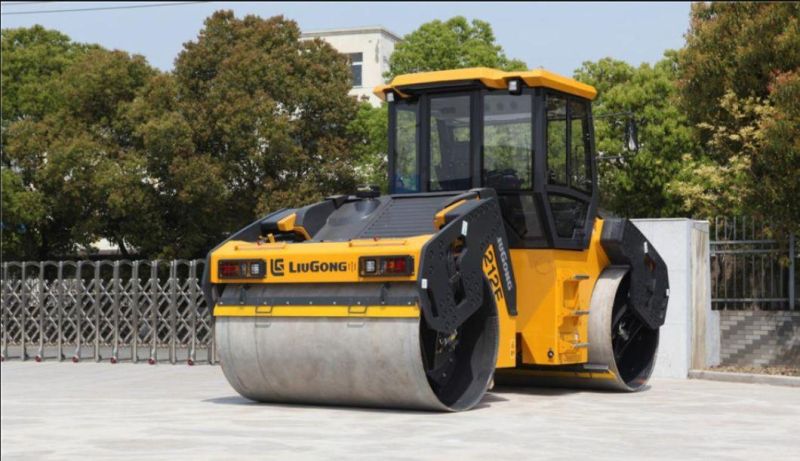

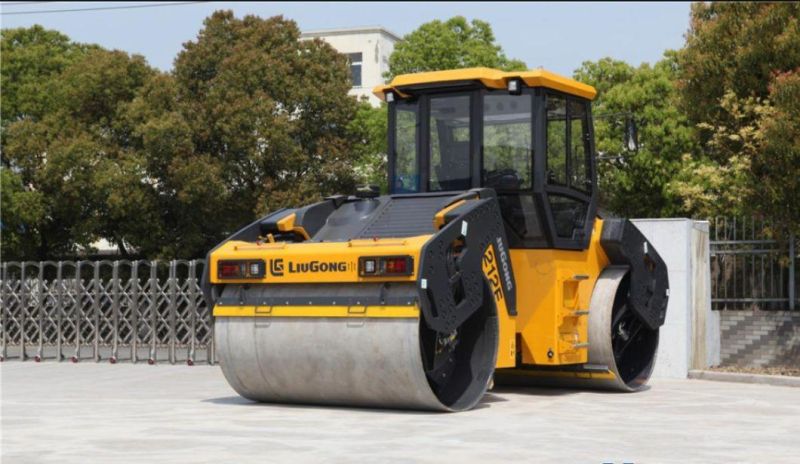

Liugong Brand New 12ton Double Drum Vibratory Road Roller 6212e
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：1year or 12month
- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：6212E
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：0~12km,H
- Centrifugal Force：85kn-103kn
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Hydraulic Cylinder Brand：China
- Unique Selling Point：High Operating Efficiency
- Transport Package：Nude Package
- Specification：5050mm*2280mm*3170mm
- Trademark：Oriemac
- Origin：China
- HS Code：8429401100
- Production Capacity：1000
Description
Operating Mass
12500 kg
Mass On Front Drum
6250 kg
Front Drum Static Linear Load
293 N/cm
Rear Drum Static Linear Load
293 N/cm
Emission Regulation
Stage III
Rated Power
119 kW (162 hp) @ 2200 rpm
Vibration Frequency Low
45/50 Hz
Nominal Amplitude Low
0.75/0.4 mm
Centrifugal Force Low
140/85 kN
Vibration Frequency High
50/67 Hz
Nominal Amplitude High
0.8/0.3 mm
Centrifugal Force High
159/103 kN
Drum Width
2130 mm
1st Maximum Speed, fwd
0-6 km/h
2nd Maximum Speed, fwd
0-8 km/h
3rd Maximum Speed, fwd
0-12 km/h
Theoretical Gradeability
40%
Wheelbase
3585 mm
Min. Outside Turning Radius
6770 mm
Overall Length
5050 mm
Overall Width
2280 mm
Overall Height
3170 mm
