• Model NO.：MK
• Origin：China
• HS Code：8412909000
• Production Capacity：10000,Month

Double actingRotary angle90 O  ±10 ORotary directionClockwise, CounterclockwiseRotary stroke (mm)7.59.51519Clamp Stroke (mm)10,20,3010,20,30,50Theoretical clamp force(N)40751001853005258251400FluidAirProof pressure 1.5MPaOperating pressure range0.1 to 1 MPa0.1 to 0.6MPaAmbient and fluid temperatureWithout auto switch:-10 to 70  o C (No freezing)

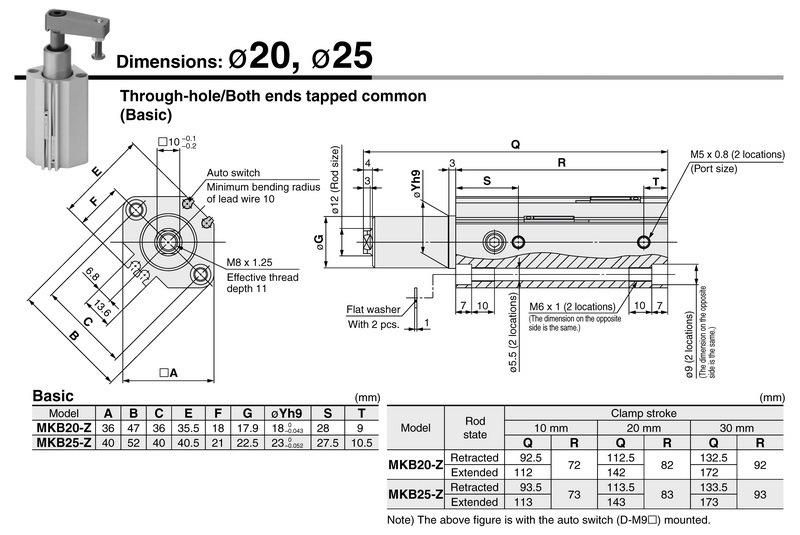

With auto switch:-10 to 60  o C (No freezing)LubricationNon-lubePiping port size M5X0.8Rc1/8,NPT1/8,G1/8Rc1/4,NPT1/4,G1/4MountingThrough-hole/Both ends tapped common, Head flangeCushionRubber bumperStroke length tolerance0.6, 0.4Piston speed 50 to 200 mm/sNon-rotating accuracy(clamp part)±1.4 o±1.2 o±0.9 o±0.7 o
Free Samples Available!
How to order?
You can make orders by simply telling us the model#,based on the descriptions above.
How to deliver?
We can provide many delivery ways for your option,like express, LCL, FCL etc.
Why choose Us?
1.Fast Response.
2.Good Quality.
3.Competitive Price.
4.Fast Delivery.
5.Good Service.
