High Quality Big Wheel Bulldozer (HQ220) with ISO, SGS Certificate

Weifang Haiqin Top Machinery Co., Ltd.
  • Type:Universal Type
  • Transmission:Hydraulic Transmission
  • Walking Mode:Wheeled
  • Load and Unload Method:Front Discharge
  • Engine Power:74~147kw
  • Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Base Info

  • Model NO.:HQ220
  • Condition:New
  • Color:According to Buyers
  • Engine:Steyr Wd10g220e22
  • Transport Package:1 Unit in a Hq40 Container
  • Specification:7100*3600*3450mm
  • Trademark:Haiqin
  • Origin:Weifang, China
  • HS Code:84295100
  • Production Capacity:5000 Units, Year

Description

Basic Info.

Model NO. HQ220 Condition New Color According to Buyers Engine Steyr Wd10g220e22 Transport Package 1 Unit in a Hq40 Container Specification 7100*3600*3450mm Trademark Haiqin Origin Weifang, China HS Code 84295100 Production Capacity 5000 Units/ Year

Product Description

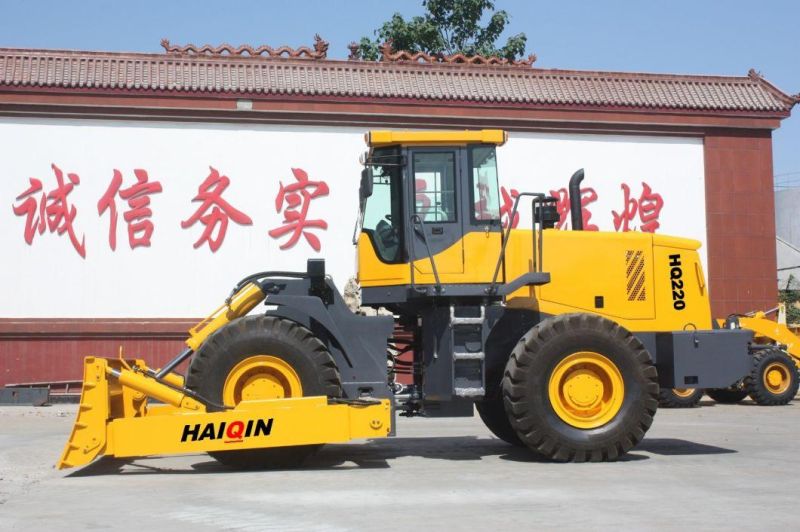

HQ220 Wheel bulldozer Main Components and Configuration:
1 -- Heavy duty, much more powerful, suitable for tough working condition.
2 --Torque converter and counter-shaft transmission gearbox-Hangzhou advance, assembled separately, higher reliability and easier maintenance,
3 --Pilot controlled, fully hydraulic steering system , power shift transmission, easier operation,

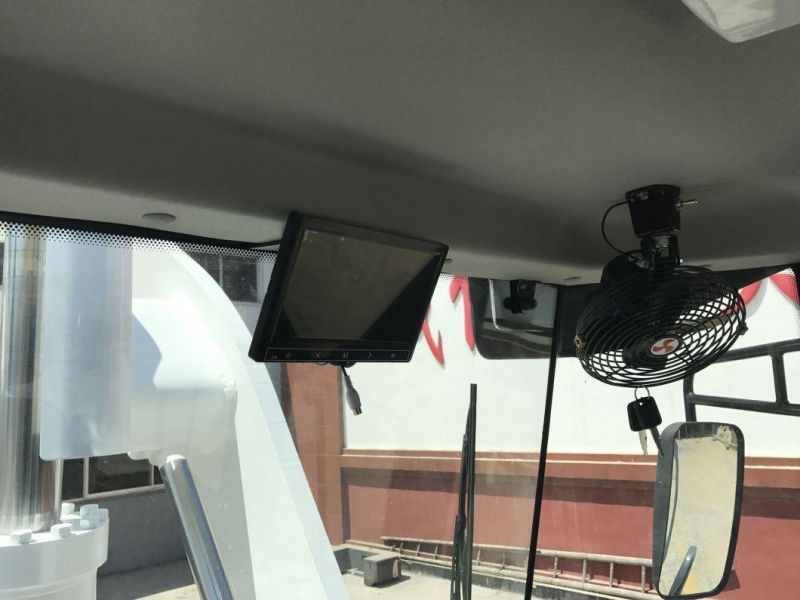

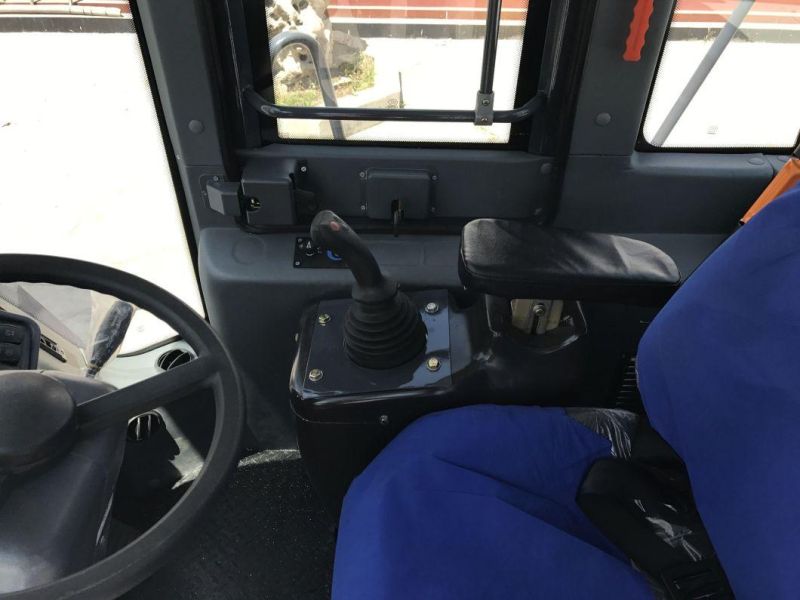

4--Comfortable operation environment , new design cabin, High-grade seat, air-conditioner at option,

Specifications

Overall Dimension (mm)7100×3600×3450
Wheelbase (mm)3200
Wheel track (mm)2240
Height of shovel blade (mm)1000
Weight of complete machine (t)15.5
Maximum lift height of dozer blade1060
Maximum down depth of dozer blade(mm)400
Maximum roll amount of dozer blade500
Gradeability (°)25
  Engine
Model of engineSTEYR WD10G220E22
PatternTurbocharger, vertical, water-cooled, 4-stroke, direct injection
Rated power162KW
Specified rotational speed2100r/min
Max. torque860N.m
Min. fuel consuming rate126g/kw.h
Total displacement9.726L
Fuel0# or 10# diesel oil

    Torque converter and transmission system
Model of torque deviceHANGZHOU ADVANCE
Pattern3-element,single stage
Transmission typeFull-powershift, countershaft type
Number of gear2 forward,1 reverse
Max. travel speed40km/h
AxleFeicheng/hualu
Main reducer typeArc taper gear, modelration of first   grade
Pattern of wheelside moderationSingle stage planetary

    Tire
Tire size23.5-25
    Steering system
PatternFull hydraulic steering system
Min. turning radius(outside of bucket)7268mm
Max. turning angle35°±1
    Implement hydraulic system
Implement pumpCBGJ2080/1010
Displacement250L/min
System working pressure20.3MPa
Distribution device modelDF32
Pilot valve modelDJS
    Brake system
Brake systemAir assisted oil disc on four wheel
Parking  brakeAir cutting control inner eapand hoof
