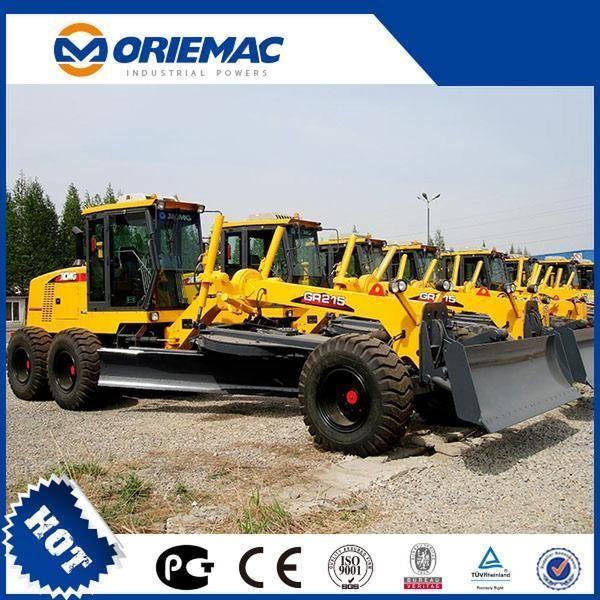

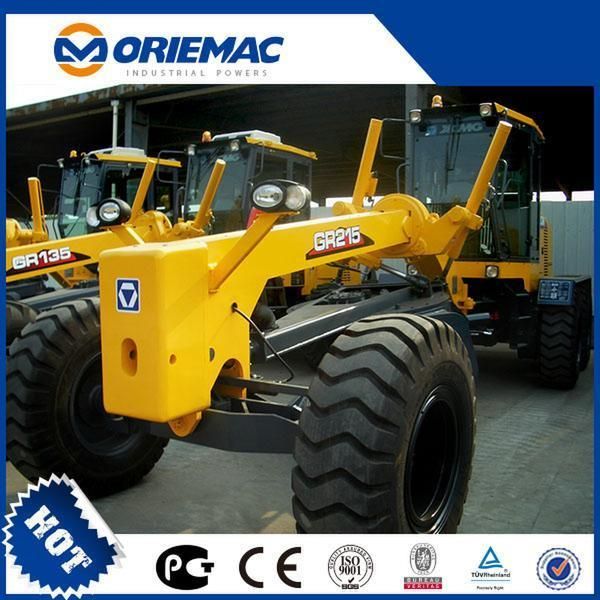

• Model NO.：GR215A
• Production Capacity：3000,Month

Basic specificationEngine modelQSB6.7 6CTA8.3Rated power/speed164kW/2200rpm  160kW/2200rpmDimension(LxWxH)9180×2625×3300mmOperating weight(Standard)16100kg
Performance specification
Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPaMax. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width ×height4270×610mm

Hi , sincerely with you have a nice day!

This is Eileen, the sales supervisor from Oriemac International Holding Ltd. Our company is specializing on selling various kinds of construction machinery.

As authorized dealer, we specialized in exporting all kinds of constructions made by Chinese famous factory, like SDLG,CHANGLIN,FOTON,LIUGONG,CHENGGONG. Our productions include Truck and special Vehicle, Earthmoving Machinery, Road construction machinery, concrete machinery, drilling machinery, logistics machinery, Mining Machinery, Agricultural Machinery,Spare parts, ungrouped. Our company website is oriemac.en.made-in-china.com

Our company will offer you the best quality machinery and spare parts with reasonable price, quick delivery ,and professional after-sale service.
Please don't hesitate to let us know if you have any questions about
our product . Your reply would be highly appreciated.

Contact Person: Eileen Feng
