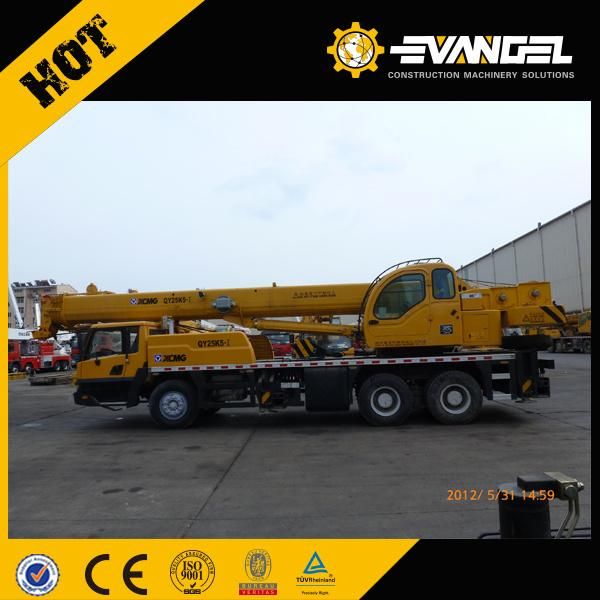

25 Tontruck Crane Qy25k-II for Sale with Ce Certification
Evangel Industrial (Shanghai) Co., Ltd.- Rated Weigth：25 Ton
- Max. Lifting Load：25 Ton
- Span：3m
- Max. Lifting Height：42m
- Rated Lifting Moment：759kn.M
- Transport Package：RO-RO Boat
Base Info
- Model NO.：QY25K-II
- Specification：40FR
- Origin：Jiangsu China
- HS Code：87051092
- Production Capacity：100,Month
Description
Item
Unit
Parameter
Outline dimension
Overall length
mm
12360
Overall width
mm
≤2500
Overall height
mm
3380
Wheel base
Axle 1, Axle 2
mm
4125
Axle 2, Axle 3
mm
1350
Mass
Total mass in travel state
kg
26400
Axle load
Axle 1
kg
6100
Axle 2, Axle 3
kg
21800
Travel performance
Travel speed
Max. travel speed
km/h
72
Min. stable travel speed
km/h
3
Turning diameter
Min. turning diameter
m
22
Min. turning diameter at boom tip
m
24
Min. ground clearance
mm
260
Approach angle
(°)
16
Departure angle
(°)
13
Braking distance (at 30km/h with full load)
m
10
Power
Model
D6114ZLQ5B
Engine rated output
kW/(r/min.)
158/2200
Engine rated torque
N.m/(r/min.)
790/1400
Engine rated speed
rpm.
2200
