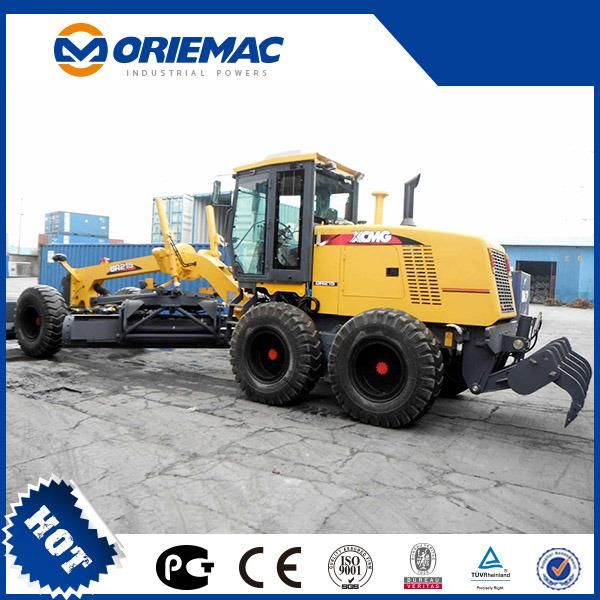

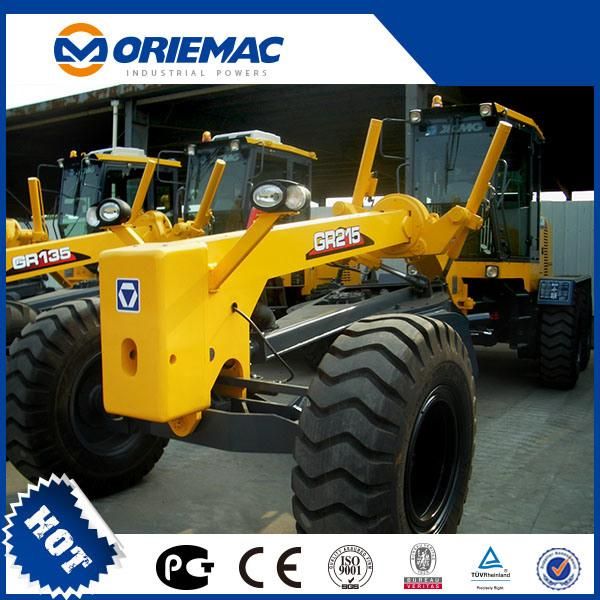

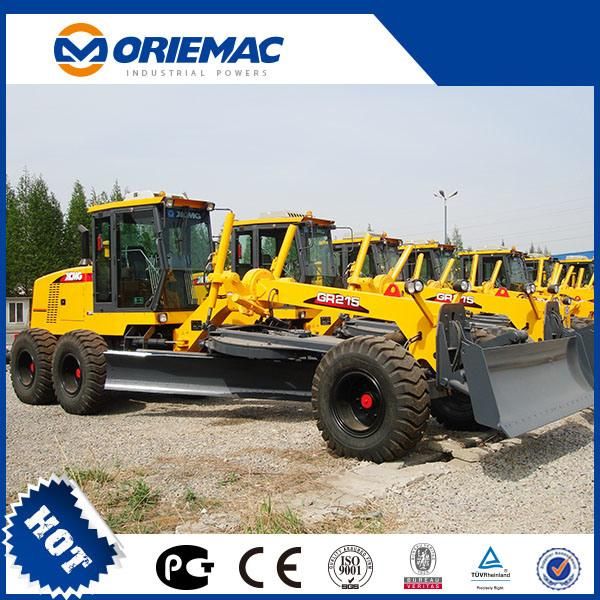

• Model NO.：GR215
• Rated Power/Speed：153kw,2200rpm
• Dimension(Lxwxh)：8970×2625×3470mm
• Operating Weight：16500kg
• Max. Gradeability：20%
• Working Hydraulic Pressure：16 MPa
• Transport Package：Nude
• Specification：8225x3016x3515
• Trademark：XCMC
• Origin：China
• Production Capacity：350units,Month

Basic specificationEngine model6CTAA8.3 6CTA8.3Rated power/speed  153kW/2200rpm  160kW/2200rpmDimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm
