• Model NO.：GR165
• Rated Power/Speed：224kw,2100rpm
• Dimension(Lxwxh)：10500X3100X3550mm
• Operating Weight：26000kg
• Maximum Lift Above Ground：450mm
• Maximum Depth of Cutting：500mm
• Transport Package：Nude
• Specification：8225x3016x3515
• Trademark：XCMC
• Origin：China
• Production Capacity：350units,Month

Basic specification

Engine modelD6114Rated power/speed125kW/2300rpmDimension(LxWxH)8900×2625×3470mmOperating weight(Standard)15000kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)77KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height3965×610mm

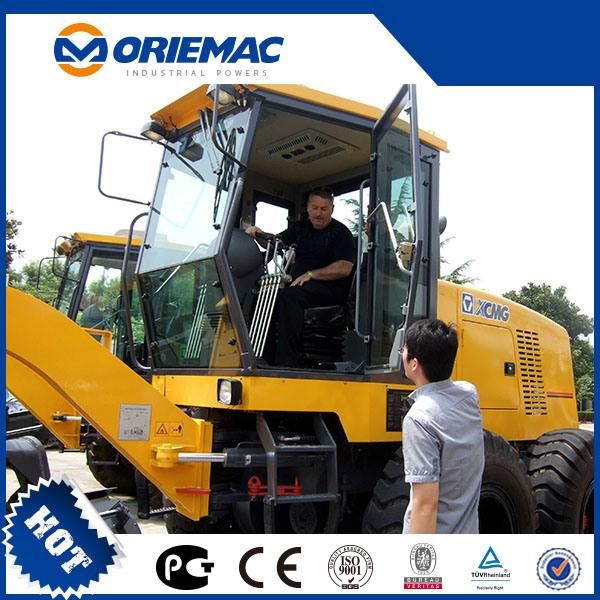

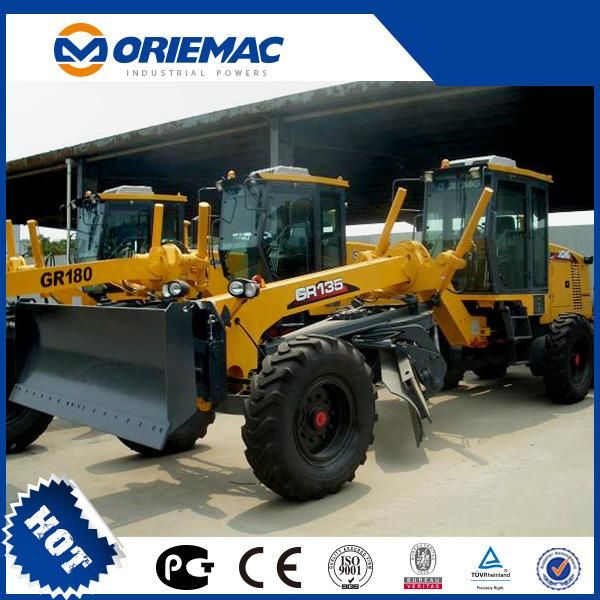

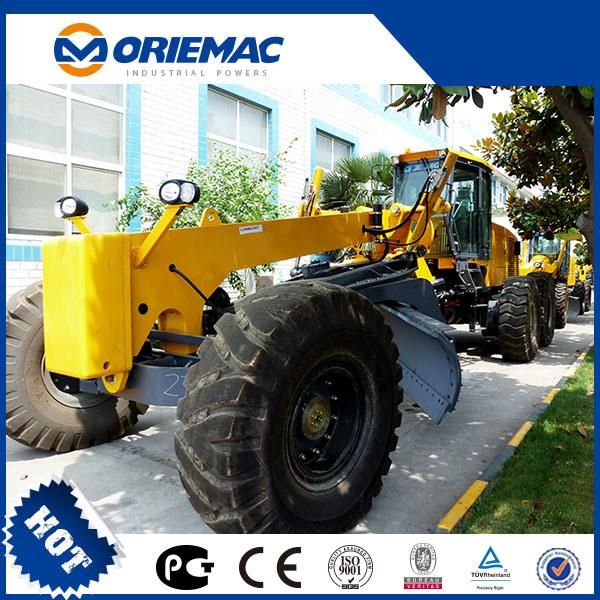

Product Show
