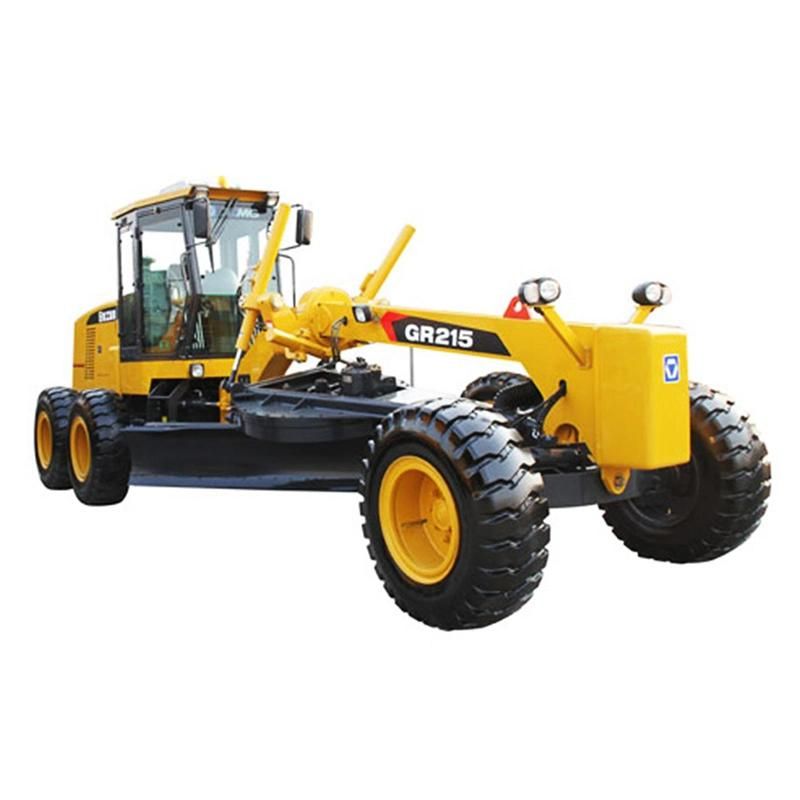

200HP Gr200 Chinese New Motor Rgader with Best Engine and Cabin
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Colour：Optional
- Engine：Good
- Transmission：Automatic
- Cabin：with Cabin
- Size：Middle
- Automatic：Automatic Transmission
Base Info
- Model NO.：GR200
- Usage：Road
- Model Number：Gr260
- Tyre：with Tyre
- Price：Good
- Transport Package：Nude Package
- Specification：CE, ISO
- Origin：Jiangsu China
- Production Capacity：3000,Month
Description
Basic specificationEngine model 6CTA8.3-C260 Rated power/speed 260HP/2200rpm Dimension(LxWxH) 10280×3100×3550mm Operating weight(Standard) 24000kg Performance specification Travelling speed ,forward 5,8,11,19,23,38 km/h Travelling speed ,reverse 5,11,23 km/h Tractive force(f=0.8) 132KN Max. gradeability 36% Wheel Base 7550MM Tread 2580mm Transmission pressure 1.3~1.8MPa Tire Size 23.5R25 Operating specification Max. steering angle of front wheels Left / Right 50° Max. lean angle of front wheels Left / Right 17° Max. oscillation angle of front axle Up / down 15° Max. oscillation angle of balance box Before / after 15 Frame articulation angle Left / Right 27° Min. turning radius using articulation 8.3m Blade Maximum lift above ground 450mm Maximum depth of cutting 500mm Maximum blade position angle 90° Blade cutting angle 28°-70° Circle reversing rotation 360° Moldboard width X height 4572×787mm
This is Eileen, the sales supervisor from Oriemac International Holding Ltd. Our company is specializing on selling various kinds of construction machinery.
As authorized dealer, we specialized in exporting all kinds of constructions made by Chinese famous factory, like CHANGLIN,FOTON,LIUGONG,CHENGGONG. Our productions include Truck and special Vehicle, Earthmoving Machinery, Road construction machinery, concrete machinery, drilling machinery, logistics machinery, Mining Machinery, Agricultural Machinery,Spare parts, ungrouped. Our company website is oriemac.en.made-in-china.com
Our company will offer you the best quality machinery and spare parts with reasonable price, quick delivery ,and professional after-sale service.
Please don't hesitate to let us know if you have any questions about
our product . Your reply would be highly appreciated.
Contact Person: Eileen Feng
This is Eileen, the sales supervisor from Oriemac International Holding Ltd. Our company is specializing on selling various kinds of construction machinery.
As authorized dealer, we specialized in exporting all kinds of constructions made by Chinese famous factory, like CHANGLIN,FOTON,LIUGONG,CHENGGONG. Our productions include Truck and special Vehicle, Earthmoving Machinery, Road construction machinery, concrete machinery, drilling machinery, logistics machinery, Mining Machinery, Agricultural Machinery,Spare parts, ungrouped. Our company website is oriemac.en.made-in-china.com
Our company will offer you the best quality machinery and spare parts with reasonable price, quick delivery ,and professional after-sale service.
Please don't hesitate to let us know if you have any questions about
our product . Your reply would be highly appreciated.
Contact Person: Eileen Feng
