• Model NO.：WA380
• Type：Medium-sized Loader
• Product Name：Construction Equipment
• Export：Front End Loader Export to Over 100 Countries
• Operating Weight：16620kg
• Transport Package：Stand Export Package
• Trademark：EV
• Origin：China
• Production Capacity：1000units,Month

Basic Info.

Model NO. WA380 Type Medium-sized Loader Product Name Construction Equipment Export Front End Loader Export to Over 100 Countries Operating Weight 16620kg Transport Package Stand Export Package Trademark EV Origin China Production Capacity 1000units/Month

Product Description

Supply New Wheel Loader:
WA100, WA230, WA250, WA300, WA320, WA350, WA360, WA380, WA400, WA430, WA470

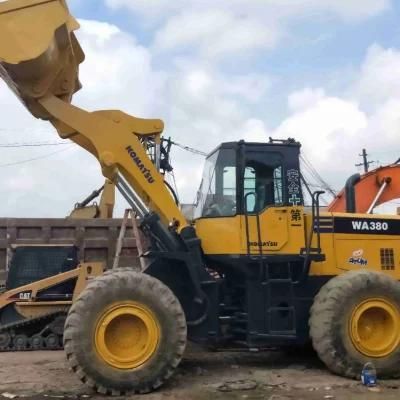

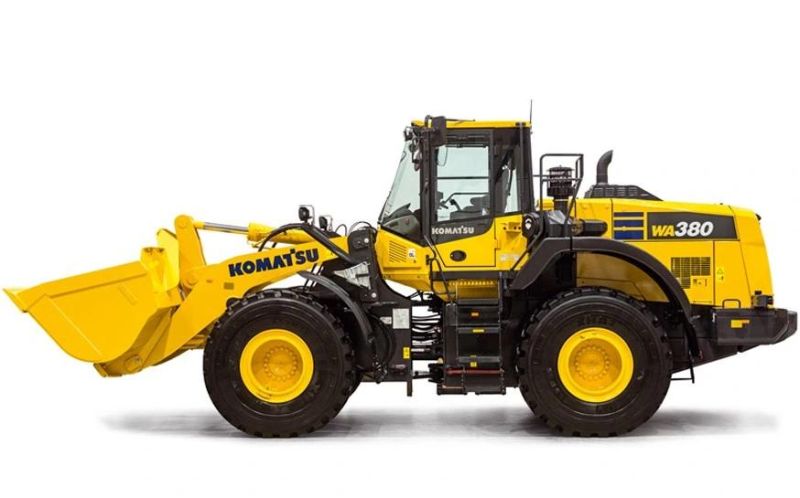

The WA380 is well suited for construction sites, agricultural and utility work. With excellent break out force, tipping loads and serviceability, the WA380 helps get the job done. The engine with enhanced controller logic helps to improve performance and fuel efficiency.

The comfortable and quiet cab includes a new, more robust, heated air suspension seat with seat-mounted controls for improved operator comfort. Like other loaders, the 7 inch LCD color monitor allows the operator to easily keep an eye on key machine parameters. The dedicated color rear view monitor helps the operator get a better picture of the machine's surroundings.

Service items are consolidated and accessible from ground level, making daily inspections easier. An adjustable auto-reversing fan helps keep the coolers clean in almost any application. Swing out engine doors, and a swing out cooling fan make inspections, cleaning and maintenance quick and easy.

WA380

Drive system	Four-wheel drive
Front	Fixed, semi-floating
Rear	Center-pin support, semi-floating, 26° total oscillation
Reduction gear	Spiral bevel gear
Differential gear	Conventional type
Final reduction gear	Planetary gear, single reduction

WA380

Model
Type		Water-cooled, 4-cycle
Aspiration		Turbo-charged, after-cooled
Number of cylinders		6
Bore x Stroke	107 mm x 124 mm	4.21" x 4.88"
Piston displacement	6.69 ltr	408 in3
Govenor		All-speed, electronic
HORSEPOWER:
SAE J1995 - Gross	143 kW	192 HP
ISO 9249 / SAE J1349 - Net	143 kW	191 HP
Rated rpm		2100 rpm
Fan drive method for radiator cooling		Hydraulic
Fuel system		Direct injection
LUBRICATION SYSTEM:
Method		Gear pump, force-lubrication
Filter		Full-flow type
Air cleaner		Dry type with double elements and dust evacuator, plus dust indicator

 New WA380 wheel loader at best price.


Working weight (kg)	16620	Maximum traction force (KN)	95.4
maximum excavation force (kN)	168	The maximum steering Angle	40
Rated power KW (HP)	142	Total length (mm)	7715
Total width (mm)	2780	Total height (mm)	3395
Years	New	Walking style	wheeled
Bucket capacity (stere)	3.3	Engine model	SAA6D107E - 1
Displacement (L)	6.69	Cooling	water
The fuel tank (L)	300	The hydraulic oil tank (L)	139
Engine oil (L)	23	Cooling liquid (L)	30.5
Drive axle type	four-wheel drive	Drive axle swinging Angle	80
Lift (s)	5.9	Drop(s)	3.3
Unload(s)	1.8	The wheelbase (mm)	3300

Other product range:

Wheel loader, Min. loader, Excavator, Bulldozer, Backhoe Loader, Skid Steer loader
Reach Stacker, Forklift, Telescopic Handler, Overhead Crane, JIB Crane, Moving Cart,
Truck Crane, Rough Terrain Crane, Crawler Crane, Truck Mounted Crane, Tower Crane
Road Roller, Motor Grader, Asphat Concrete Paver, Cold Milling Machine
Horizontal Directional Drill, Rotary Drilling Rig, Road Header, Diaphragm Wall Grab
Dump truck, Tractor head, Cargo truck, Semi-Trailer, Special Vehicle
Concrete pump, Trailer Concrete pump, Concrete mixer truck, Concrete Batching Plant
Crushing equipment, Grinding equipment, Feeding&Conveying,Screening&Washing
Harvester,Tractor
And Spare Parts and etc.
