Wheel Loader of Heavy Machinery

Ensign Heavy Industries Co., Ltd.
  • Certification：TUV, ISO, RoHS, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：YX636
  • Type：Small Loader
  • Transport Package：Container
  • Specification：1x20GP, 1x40GP
  • Trademark：ENSIGN
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：20000pieces,Year

Description

      Bucket capacitym31.2~3.0(standard bucket 1.8)Total cycle time(lift, dump& lower)s≤9.2Rated loadkg3000Dump height/Dump anglemm/ °2960/45Overall operating weightkg10500Dump distance/Dump anglemm/ °1040/45Max. traction forcekN≥105Min. ground clearancemm371.5Max. breakout forcekN≥100Wheel basemm2850Grade ability°30Wheel treadmm1850Min. turning radius(outer side of the bucket)mm5950Departure angle°30Min. turning radius(outer side of the tire)mm5346Steering angle(left & right)°38Overall dimension (standard configuration)      mm  7008*2520*3277
Core componentsEngineDrive Systemmodel
Weichai Deutz WP6G125E22Torque converter typeSingle stage, 2-phase,4 elementstypeSix-cylinder, in-line, water cooling      four-stroke, direct injection, turbo chargedTransmission typePlanetary power shiftRated power92KWGears2 forward, 1 reverse  Main drive typeSpiral bevel gear, first reduction  Hub reduction typePlanetary,first reduction  Drive axleDry type axleSteering SystemBraking SystemTypeLoad sensing hydraulicService brakeAir-over-oil caliper discOil pump typeGear pumpParking brake Manual pneumatic caliper discWorking Device Hydraulic System TireHydraulic system pressure16MpaSpecification 17.5-25Control typeJoystickTread patternGeneral patternOil pump typeGear pump

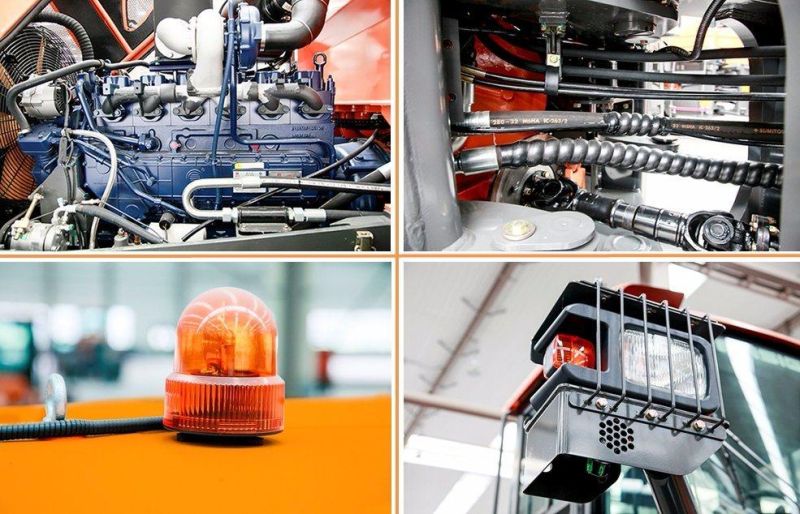

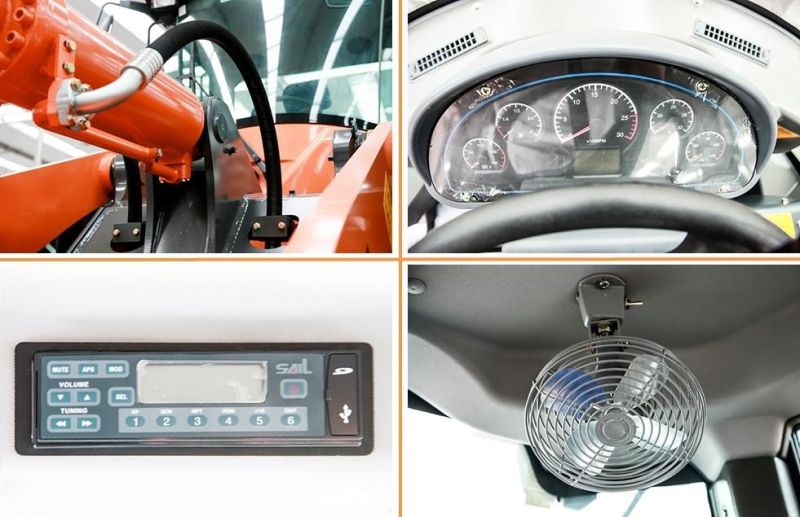

Product details:
Ensign Wheel Loader Model Yx636
Ensign Wheel Loader Model Yx636
Ensign Wheel Loader Model Yx636

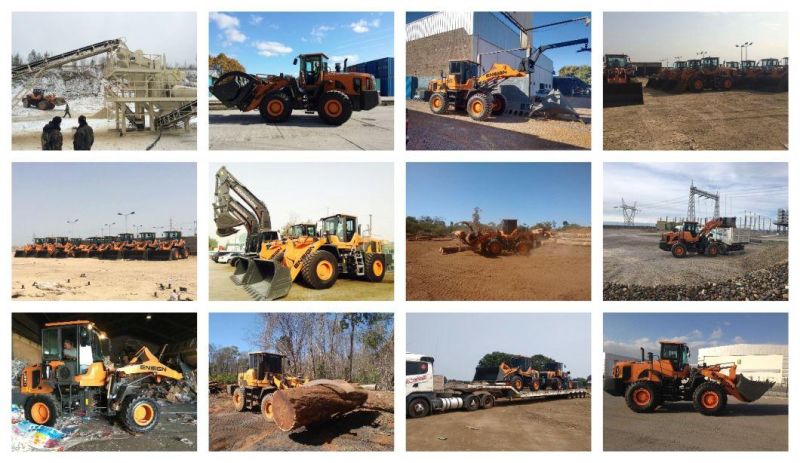

Working cases:

Ensign Wheel Loader Model Yx636
Wheel loaders in our warehouse:
Ensign Wheel Loader Model Yx636

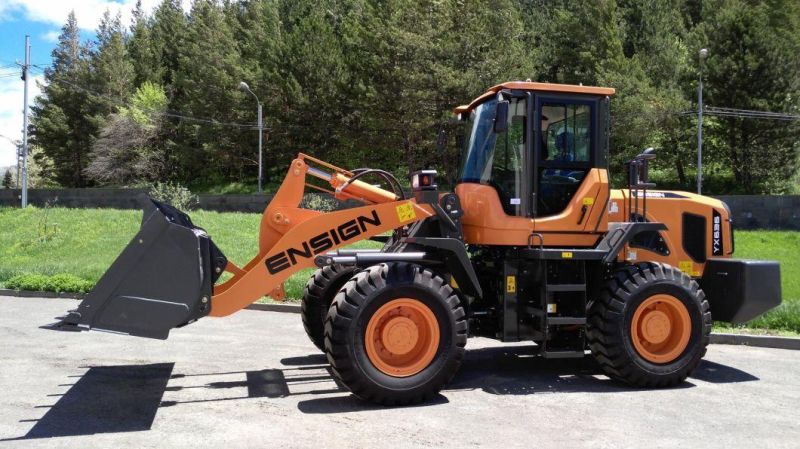

YX636 exported to Armenia:
Ensign Wheel Loader Model Yx636
