• Model NO.：CLG616
• Travel Speed：11km,H
• Centrifugal Force：13.5KN
• Certification：CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Transport Package：Nude
• Specification：16 ton
• Trademark：Liugong
• Origin：Jiangyin, Jiangsu
• Production Capacity：3000,Year

Basic Info.

Model NO. CLG616 Travel Speed 11km/H Centrifugal Force 13.5KN Certification CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package Nude Specification 16 ton Trademark Liugong Origin Jiangyin, Jiangsu Production Capacity 3000/Year

Product Description

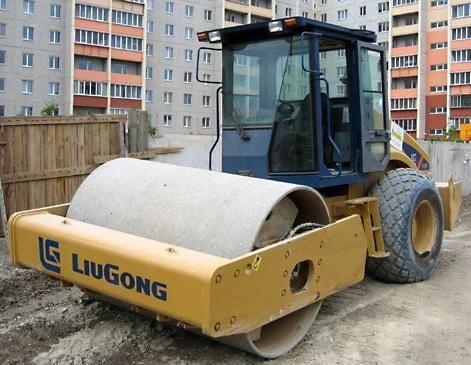

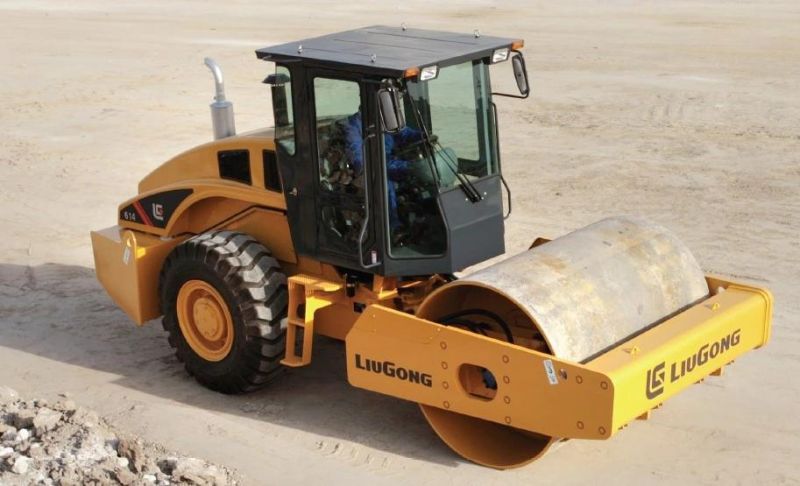

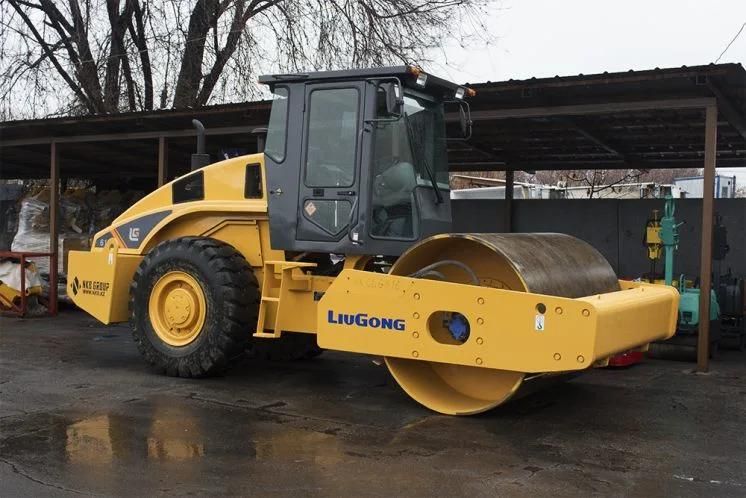

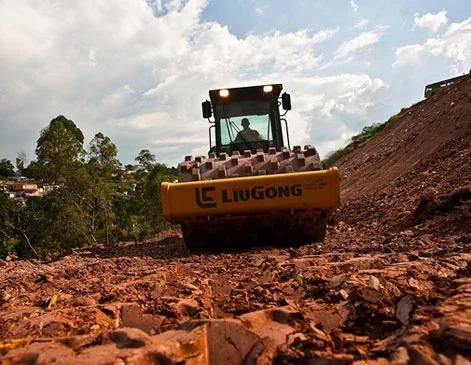

Liugong 16 ton single drum road roller CLG616

Product-Features
·Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing's working life to beyond 10,000 hours increasing productivity and reducing part wear.
·With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required.
·Patented cooling technology inside the drum keeps temperatures balanced at around 90° centigrade, 20° lower than the industry average. This stable temperature regulation helps prolong component life and reduces maintenance.


Operating Mass	16000 kg
Mass On Vibrating Drum	8000 kg
Mass On Drive Axle	8000 kg
Front Drum Static Linear Load	368 N/cm
Model	Shangchai SC4H140.2G2
Emission Regulation	Stage II
Rated Power	103 kW (140 hp) @ 2000 rpm
Vibration Frequency	30 Hz
Nominal Amplitude	2.0/1.2 mm
Centrifugal Force	300/180 kN
Drum Diameter	1555 mm
1st Maximum Speed, fwd	2.7 km/h
2nd Maximum Speed, fwd	5.2 km/h
3rd Maximum Speed, fwd	11 km/h
Theoretical Gradeability	30%
Min. GroundClearance	450 mm
Wheelbase	2950 mm
Min. Outside Turning Radius	6500 mm
Overall Length	6000 mm
Overall Width	2280 mm
Overall Height	3050 mm
