• Model NO.：YX636
• Type：Medium-sized Loader
• Color：Orange,Gray
• Transport Package：Container
• Specification：7008*2520*3280
• Trademark：ENSIGN
• Origin：China
• HS Code：84295100
• Production Capacity：5000 Units,Year

Bucket capacitym31.2~3.0(standard bucket 1.8)Total cycle time(lift, dump& lower)s≤9.2Rated loadkg3000Dump height/Dump anglemm/ °2960/45Overall operating weightkg10500Dump distance/Dump anglemm/ °1040/45Max. traction forcekN≥105Min. ground clearancemm371.5Max. breakout forcekN≥100Wheel basemm2850Grade ability°30Wheel treadmm1850Min. turning radius(outer side of the bucket)mm5950Departure angle°30Min. turning radius(outer side of the tire)mm5346Steering angle(left & right)°38Overall dimension (standard configuration)      mm 7008*2520*3280
Core components:EngineDrive Systemmodel
Weichai Deutz WP6G125E22Torque converter typeSingle stage, 2 phase, 4 elementstypeVertical, in-line, water cooling, four-stroke, direct injectionTransmission typeplanetary power shiftRated power92KWGears2 forward, 1 reverse  Main drive typeSpiral bevel gear, first Reduction  Hub reduction typePlanetary  Drive axleDry type axleSteering SystemBraking SystemTypeLoad sensing hydraulicService brakeAir-over-oil caliper discOil pump typeGear pumpParking brakeManuel pneumatic caliper discWorking Device Hydraulic SystemTireHydraulic system pressure16MpaSpecification 17.5-25Control typePilotTread patternGeneral patternOil pump typeGear pump

Main Features of YX636 wheel loader:

Strong Power

• Long wheel base with large breakout force and traction force.
• Weichai engine WP6G125E22 with strong power
• Reinforced drive system

Safety

• Reinforced ROPS & FOPS cab is optional
• Reliable braking system
• Safe and comfortable operating environment

Energy Saving & Green Initiative

• Remarkable fuel and energy conservation
• Optimum radiation
• Low noise

Comfort & Convenience

• Cab space enlarged by 15%
• Low noise, shock-absorbed and dust proof cab
• Back-flipped engine hood, easy for maintenance
• Pilot control and brand new air conditioner design
• The bucket can set level automatically, and the set level angle can reach to 3°

Energy Saving & Green Initiative
Weichai WP6G125E23 engine is adopted for strong power, large torque reserve and excellent performance. Pumps with large displacement are equipped, which greatly increases working efficiency and decreases fuel consumption and noise, together with short total cycle time.

Reliability & Durability

• Structural components are of advanced design and manufacture, featuring excellent impact resistance, reliability and load capacity.
• Countershaft transmission is adopted, which is compact in structure. With high transmission efficiency, low failure rate, tiny impact of shifting and easy maintenance, it suits well to 3 MT loaders.



ENSIGN in the world:

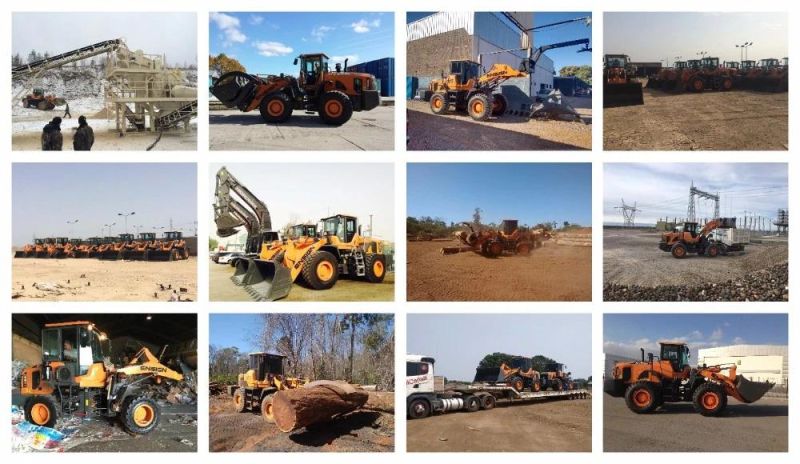

ENSIGN wheel loaders have been exported to more than 30 overseas countries like USA, Australia, Russia, Brazil, Argentina, Saudi Arabia, Iraq, Indonesia, Philippines, Sudan, Ghana etc. Ensign has built a win-win relationship with dealers in these markets. Thanks to the both efforts, Ensign is becoming more and more popullor in the world.




Our company:

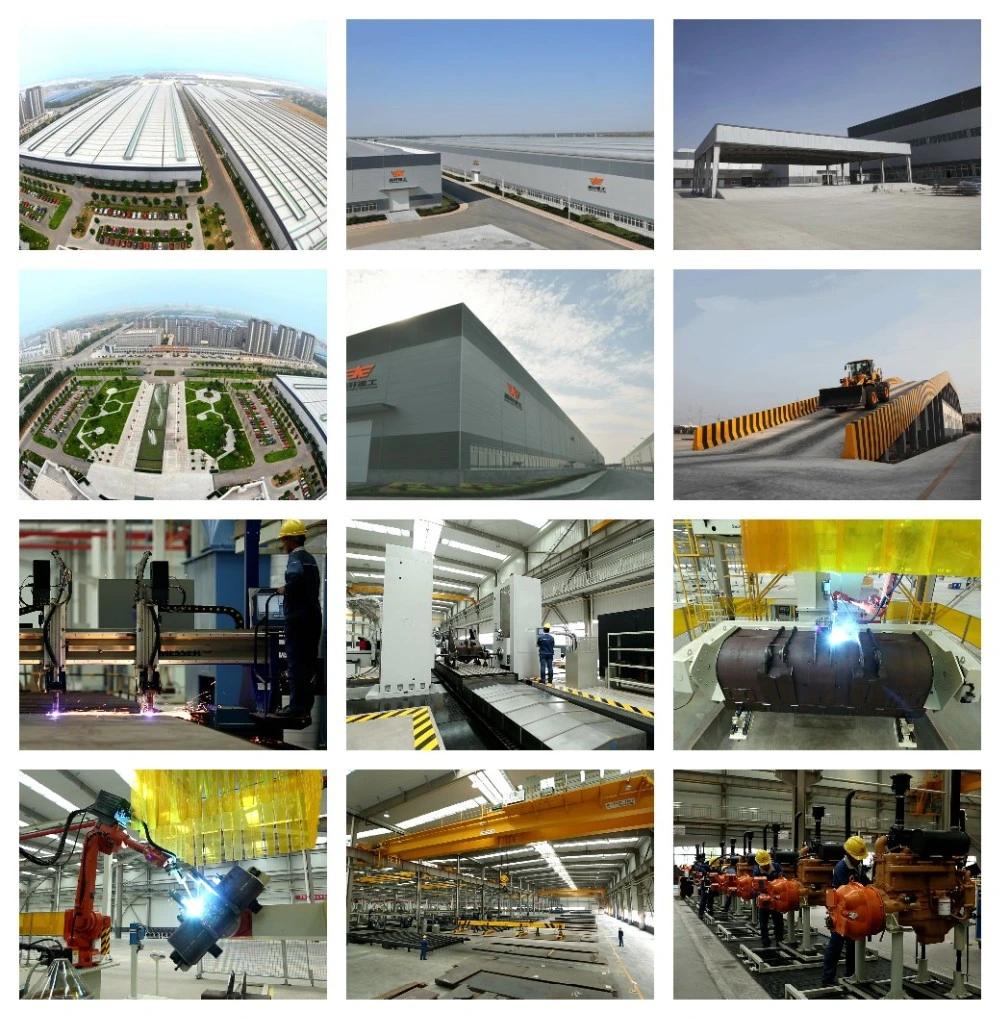

We have the longest wheel loader workshop in China and comprehensive facilities.  The testing ground is also biggest in China. By the advanced processing technology and strict quality control system, we can ensure each product delivered to the customers is with the best quality.





Our Service:





Supports:

1). Delivery: 30 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF or CFR your destination for your choice
3). Payment terms for first order:
-----T/T 30% down payment and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have Euler Hermes insurance for our VIP clients. We are looking for partnership for long-term business
